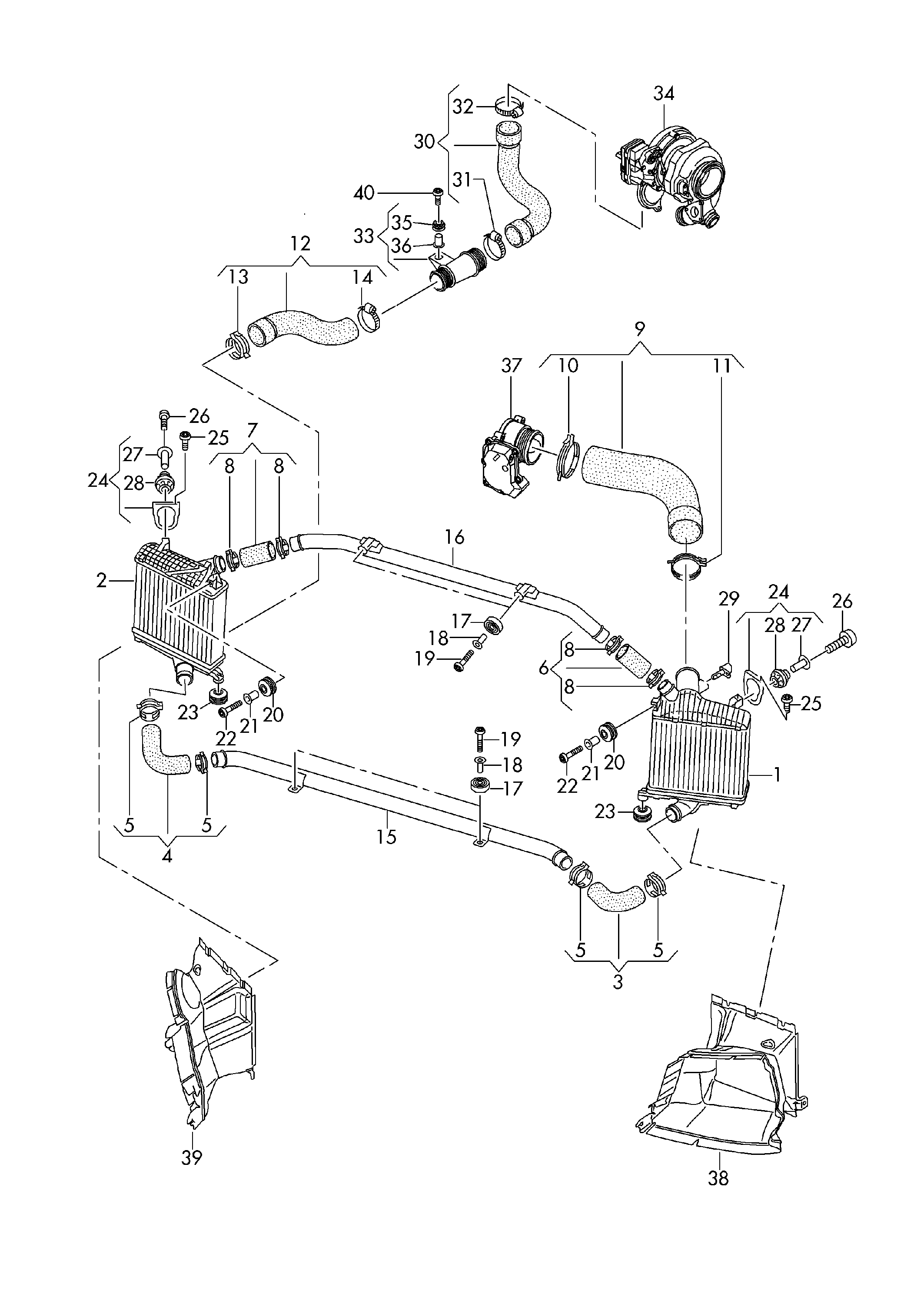

Guide, intercooler air

【29】03G906051E Sensor assy-pressure

【20】050129669C GROMMET

【18】1K0129734B BUSH

【35】4G0129669C GROMMET

【36】4G0129734 BUSH

【21】4H0145219 BUSH

【38】4M0145333G Intercooler-w204/w204 Duct assy-air

【4】4M0145708H Hose, pressure

【30】4M0145738R Hose, pressure

【33】4M0145762B HOSE COMPLETE-PRESS

【1】4M0145803R INTERCOOLER -W204/W212

【24】4M0145841 BRACKET-ENGINE SUPP*

【15】4M0145941E Pipe, air intake

【7】4M0145944A Hose, pressure

【23】867129669 GROMMET

【19】N10413405 BOLT

【8】N10518801 HOSE CLAMP

【13】N10544401 HOSE CLAMP

【40】N10554005 SCREW

【11】N10556301 CLIP

【5】N10619801 HOSE CLAMP

【14】N10619901 HOSE CLAMP

【31】N10735601 HOSE CLAMP

【32】N10735701 HOSE CLAMP

【25】N91071702 BOLT

【26】N91097201 SCREW

【22】N91199401 Bolt countersunk in
