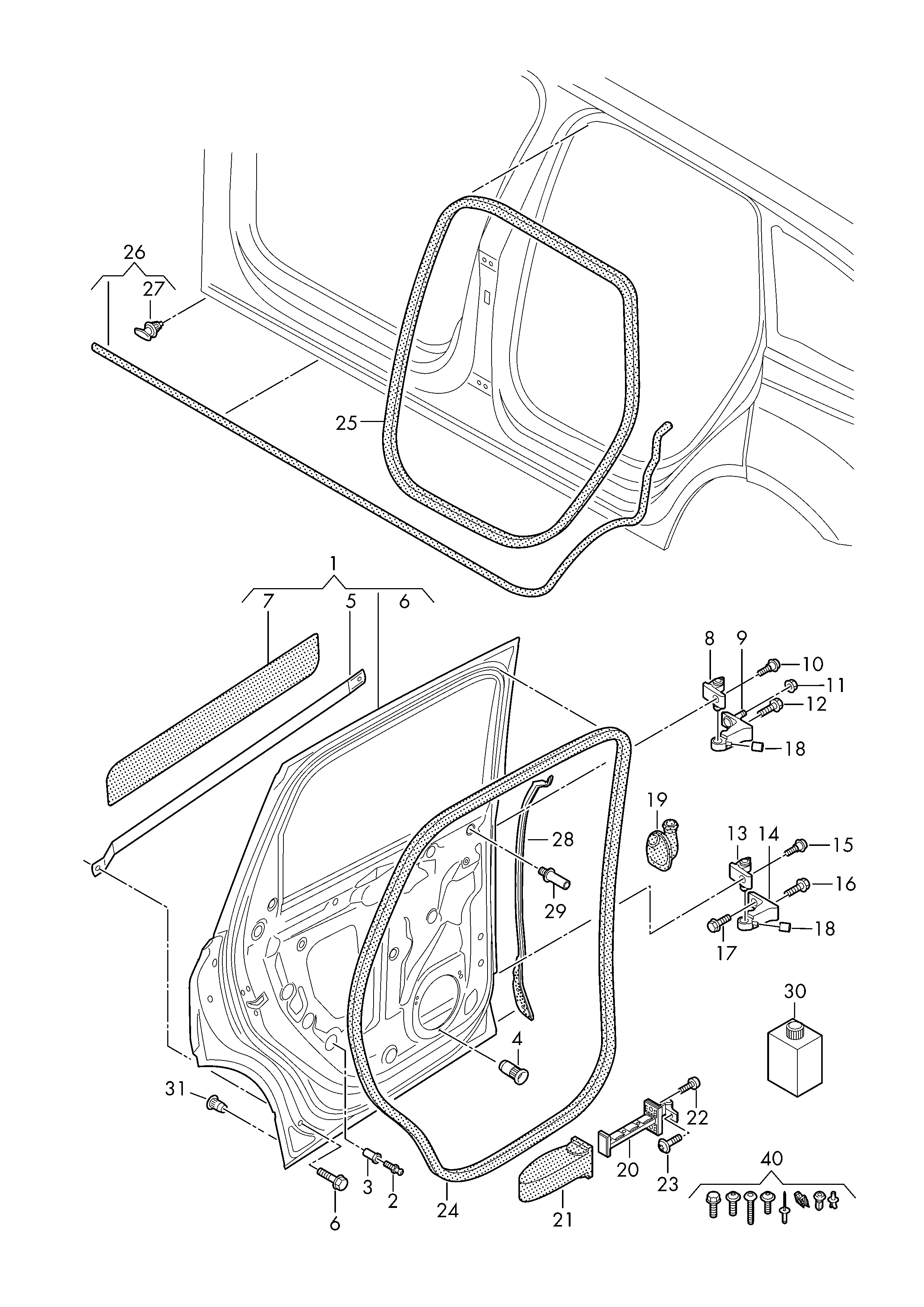

Door assy-rr, lh

【31】191853586C GROMMET

【9】4M0831403A Hinge half door

【9】4M0831403E Piece-dr hinge lwr half

【9】4M0831404A Hinge half door

【9】4M0831404E Piece-dr hinge lwr half

【1】4M0833051E Door assy-rr, lh

【25】4M0833721D Seal, door inside

【27】4M0839069 CLIP

【26】4M0839119C Seal, side rail, lwr

【26】4M0839119D Seal, side rail, lwr\\nD-02.05.2016>>

【26】4M0839120C Seal, side rail, lwr

【26】4M0839120D Seal, side rail, lwr\\nD-02.05.2016>>

【20】4M0839249 LINK-DOOR STOPPER

【21】4M0839267 Protector door

【28】4M0839717B Seal, door, outer

【28】4M0839717C Seal, door, outer\\nD-23.05.2016>>

【28】4M0839717D Seal, door, outer\\nD-06.06.2016>>

【28】4M0839718C Seal, door, outer\\nD-23.05.2016>>

【28】4M0839718D Seal, door, outer\\nD-06.06.2016>>

【24】4M0839911A Weatherstrip (self-adhesive), outer

【24】4M0839911C Weatherstrip, door, outer\\n(Adhesive)\\n\\n\\nPay attention to the repair manual\\n\\nD-18.01.2016>

【7】8K0837833A Shock absorber (self-adhesive)

【14】8S0833403E Piece-dr hinge lwr half

【14】8S0833404E Piece-dr hinge lwr half

【13】8S0833405A Piece-dr hinge upr half

【13】8S0833406A Piece-dr hinge upr half

【8】8S0833407A Piece-dr hinge upr half

【8】8S0833408A Piece-dr hinge upr half

【18】8T0837947 Hood

【30】D00940104 Solvents-cleaning> adhesive & seal material> adhesive & seal material

【30】D00950025 Coating material

【30】D355205A2 Adpt:

【4】N10597701 NUT

【23】N91189702 Bolt (combination), self-lock

【6】N91194601 Bolt, flat multi-toothed band

【15】N91258201 Bolt, multitooth flange face in

【17】N91263701 Bolt, hex. flange

【17】WHT000042A Bolt, hexagon

【22】WHT003237 BOLT
