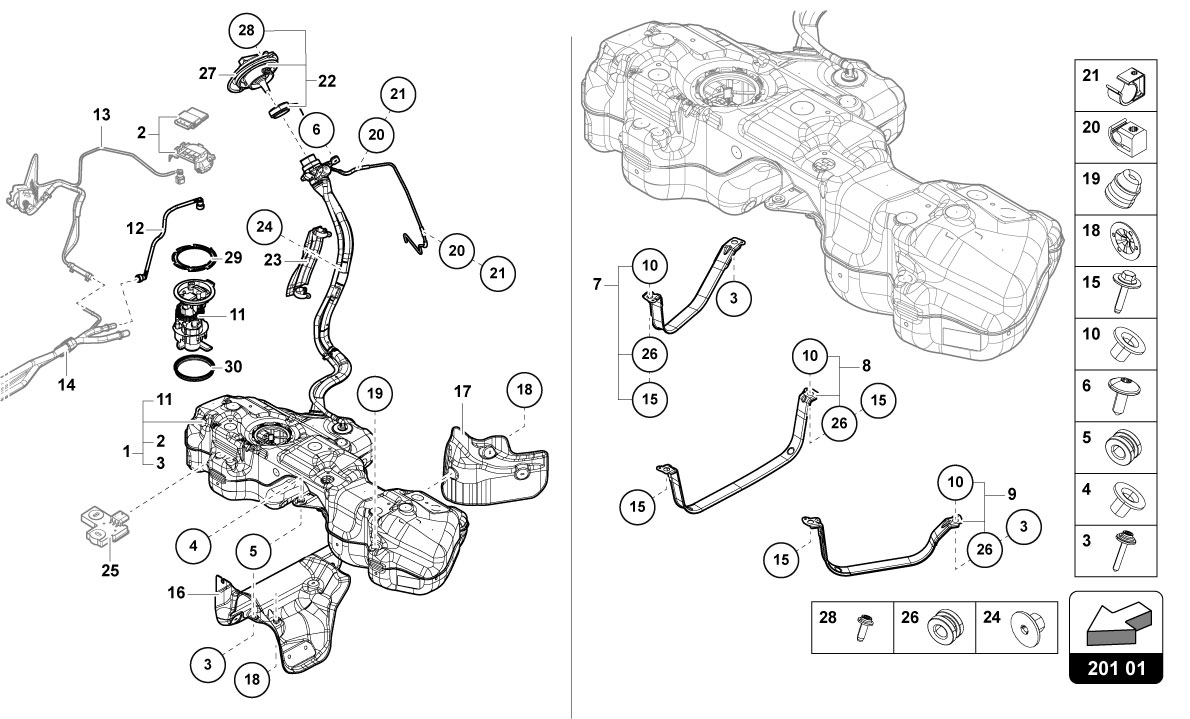

FUEL DELIVERY MODULE

【30】1J0919133B SEALING RING

【29】1K0201375 NUT

【1】4M0201021FP FUEL TANK

【12】4M0201220C Fuel pipe

【17】4M0201308G HEAT SHIELD

【16】4M0201308H HEAT SHIELD

【9】4M0201391C Belt assy-tension

【7】4M0201392C Belt assy-tension

【8】4M0201392F Belt assy-tension

【11】4M0919087BL Fuel pump Contains: Filter-fuel

【19】8K0201274B Plate, absorber

【10】8K0201693C BUSH

【4】8K0201693D BUSH

【26】8K0201840C Mounting rubber

【5】8K0201840D Mounting rubber

【18】N90335004 PROTECTOR

【24】N90757901 Nut, hexagon

【6】N91042301 Bolt, hexagon

【15】N91237201 Six angle combined bolt

【3】N91247301 Bolt, mnl flange
