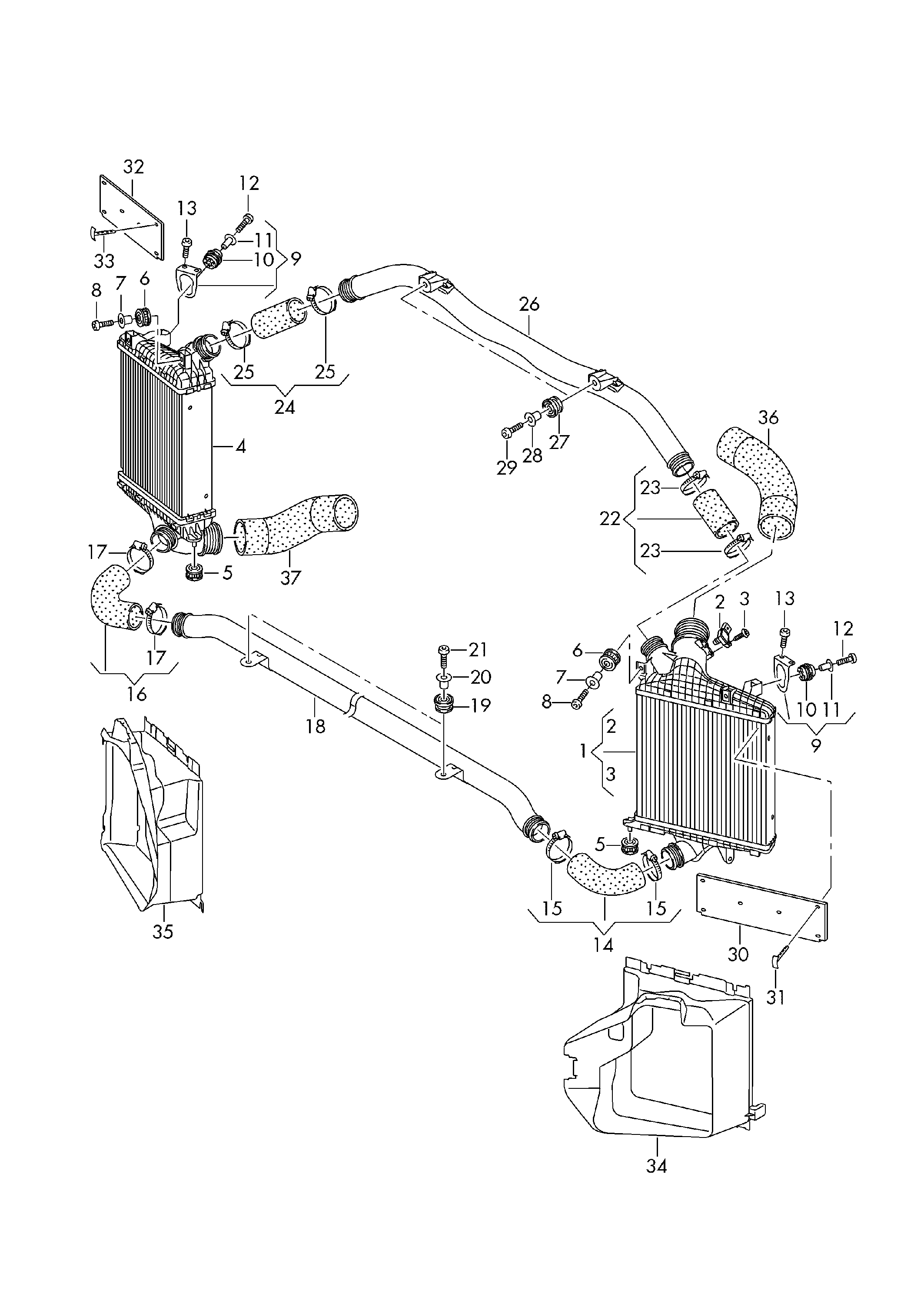

Guide, intercooler air

【6】050129669C GROMMET

【2】06E906051AB Sensor assy-pressure

【2】06E906051AC Sensor assy-pressure

【2】06E906051AG Sensor assy-pressure

【10】4G0129669C GROMMET

【11】4G0129734 BUSH

【7】4H0145219 BUSH

【32】4M0145551 Cover

【16】4M0145708H Hose, pressure

【1】4M0145803AH Intercooler-w204/w204 D -19.11.2018

【1】4M0145803BP INTERCOOLER -W204/W212

【4】4M0145804BR INTERCOOLER -W204/W212

【9】4M0145841 BRACKET-ENGINE SUPP*

【18】4M0145941E Pipe, air intake

【26】4M0145942G Pipe, air intake

【24】4M0145944A Hose, pressure

【34】4M8145333A Intercooler-w204/w204 Duct assy-air

【35】4M8145334 Guide, intercooler air

【35】4M8145334A Intercooler-w204/w204 Duct assy-air

【33】4N0145769A Clip

【27】867129669 GROMMET

【28】8K0129734A BUSH

【29】N10413405 BOLT

【25】N10518801 HOSE CLAMP

【17】N10619801 HOSE CLAMP

【3】N10721401 Bolt, oval head pnl

【13】N91096701 Bolt, hexagon

【12】N91097201 SCREW

【29】N91148201 Bolt, obk head

【8】N91199401 Bolt countersunk in
