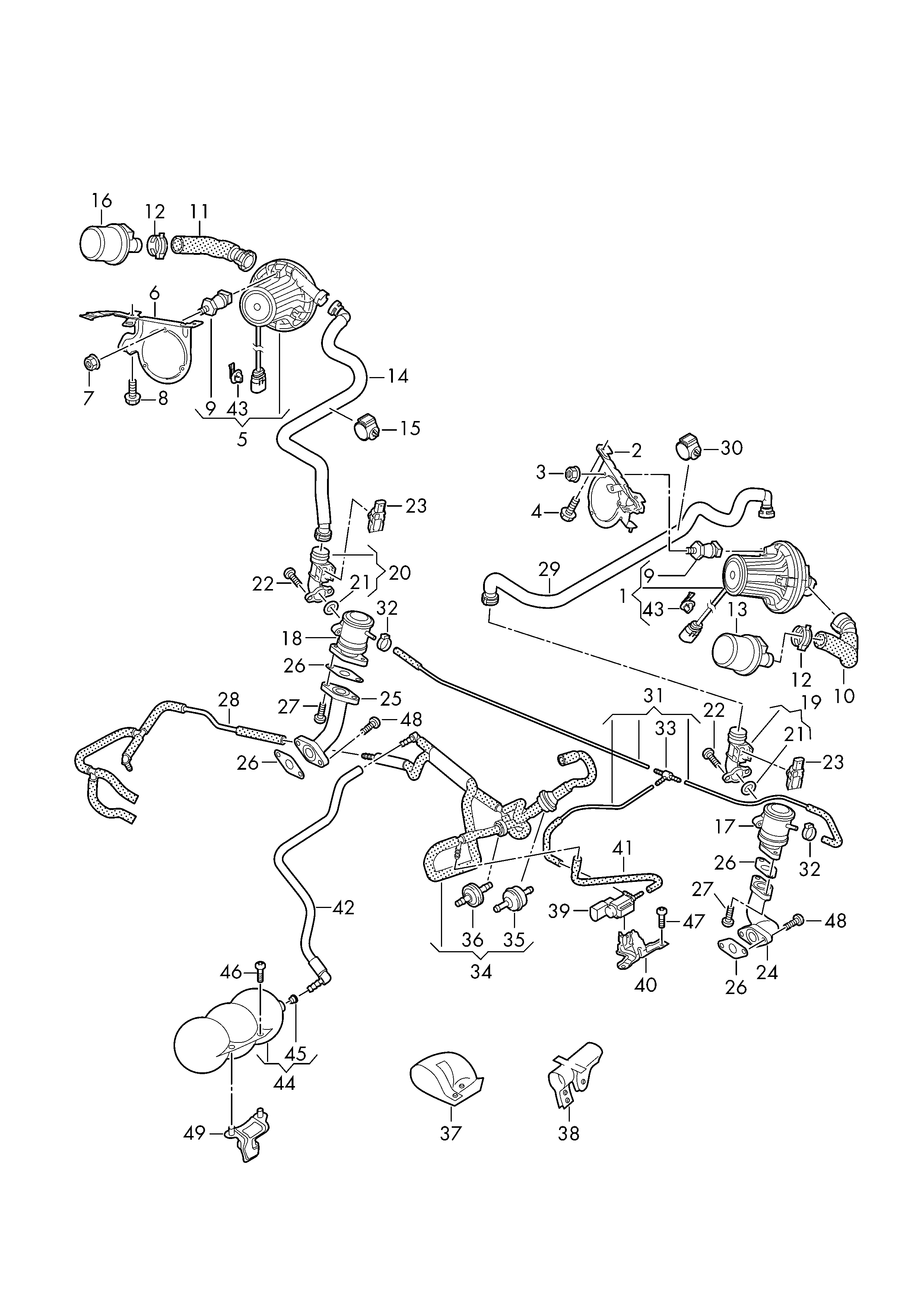

AIR PUMP, SECONDARY-AUDI A6

【39】037906283C Solenoid valve##

【36】046905291B VALVE-NON RETURN

【26】06A131120D Grommet

【35】06A133528D NON-RETURN VALVE

【9】06A133567F Bumper kit

【23】06K906052 Sensor assy-pressure

【23】06L906052 Sensor assy-pressure

【38】079133105B HEAT INSULATION

【31】07L131055H PRESSURE CONTROLLINE

【42】07L131055N VACUUM HOSE

【34】07L131055R VACUUM HOSE

【18】07L131101M Valve assy-combination

【18】07L131101N KOMBI VALVE

【20】07L131119 ADAPTER24999934

【40】07L131157H RETAINER FOR VALVE

【24】07L131166E ADAPTER24999934

【25】07L131166G ADAPTER24999934

【33】2D0129737A Tpiece

【43】3D0971830J BRACKET-ENGINE SUPP*

【44】420131541 VACUUM RESERVOIR

【16】420906321 AIR FILTER

【45】431820667 GROMMET

【10】4S0131461 CONNECTING PIPE

【14】4S0131605A CONNECTING PIPE

【29】4S0131605B CONNECTING PIPE

【2】4S0906407E RETAINER FOR PUMP

【5】4S0906601 SECONDARY AIR PUMP

【5】4S0906601B SECONDARY AIR PUMP

【8】N0902619 Six angle combined bolt

【48】N10124306 Hexagon insert Screw, flat

【32】N10210501 CLAMP

【47】N10405604 Bolt, hexagon

【27】N10451408 Bolt, hexagon

【7】N90488005 Hex nut

【12】N90687101 Clip-band

【30】N90894701 BRKT-HOSE

【46】N90925202 Bolt, female ball
