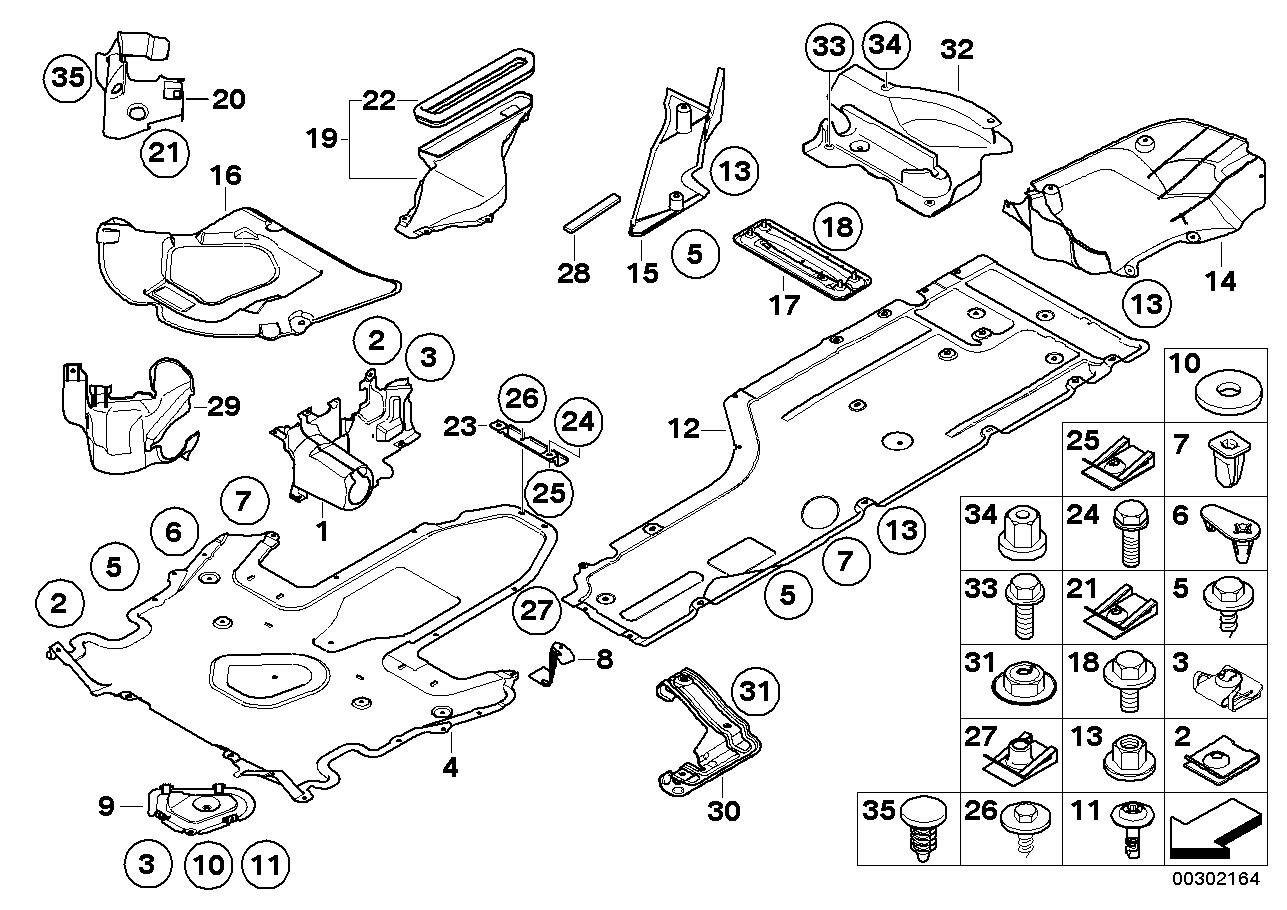

UNDERFLOOR COATING CENTER517520

【24】07119905147 Hex bolt with washer

【18】07119905529 Hex bolt with washer

【02】07129904150 Plate nut

【02】07146977473 Plate nut

【03】07146981767 C-CLIP NUT079510

【26】07147129160 Hex washer

【06】07147130337 NUT

【25】07147154447 C-CLIP NUT SELF-LOCKING079510

【13】51161943122 Plastic cap nut

【04】51717033748 UNDERFLOOR COATING CENTER517520

【12】51717033757 UNDERBODY PANELLING LH/F10/F11

【12】51717033758 Trim-base coating, rh

【17】51717064828 Bracket-joint

【11】51717110995 Plug, quick lock

【08】51717121718 Bracket floor trim ctr

【01】51717123687 Cover, strg lh

【01】51717123688 Cover, steering gear, rh/lh

【15】51717124555 Cover, fuel tank, rh/lh

【15】51717124556 Cover, fuel tank, rh/lh

【14】51717124633 Cover, battery

【01】51717127251 Cover, strg lh

【01】51717127252 Cover, steering gear, rh/lh

【01】51717130335 Cover, strg lh

【01】51717130336 Cover, steering gear, rh/lh

【23】51717153449 Bracket floor trim ctr

【07】51717154520 NUT

【01】51717201517 Cover, strg lh

【01】51717201518 Cover, steering gear, rh/lh

【01】51717201523 Cover, strg lh

【10】51718212163 CIRCLIP519520

【05】51718254528 Hex washer

【09】51757061886 Trim, cover bottom

【04】51757154142 UNDERFLOOR COATING CENTER517520

【09】51757162322 Trim, cover bottom

【09】51757195903 Trim, cover bottom
