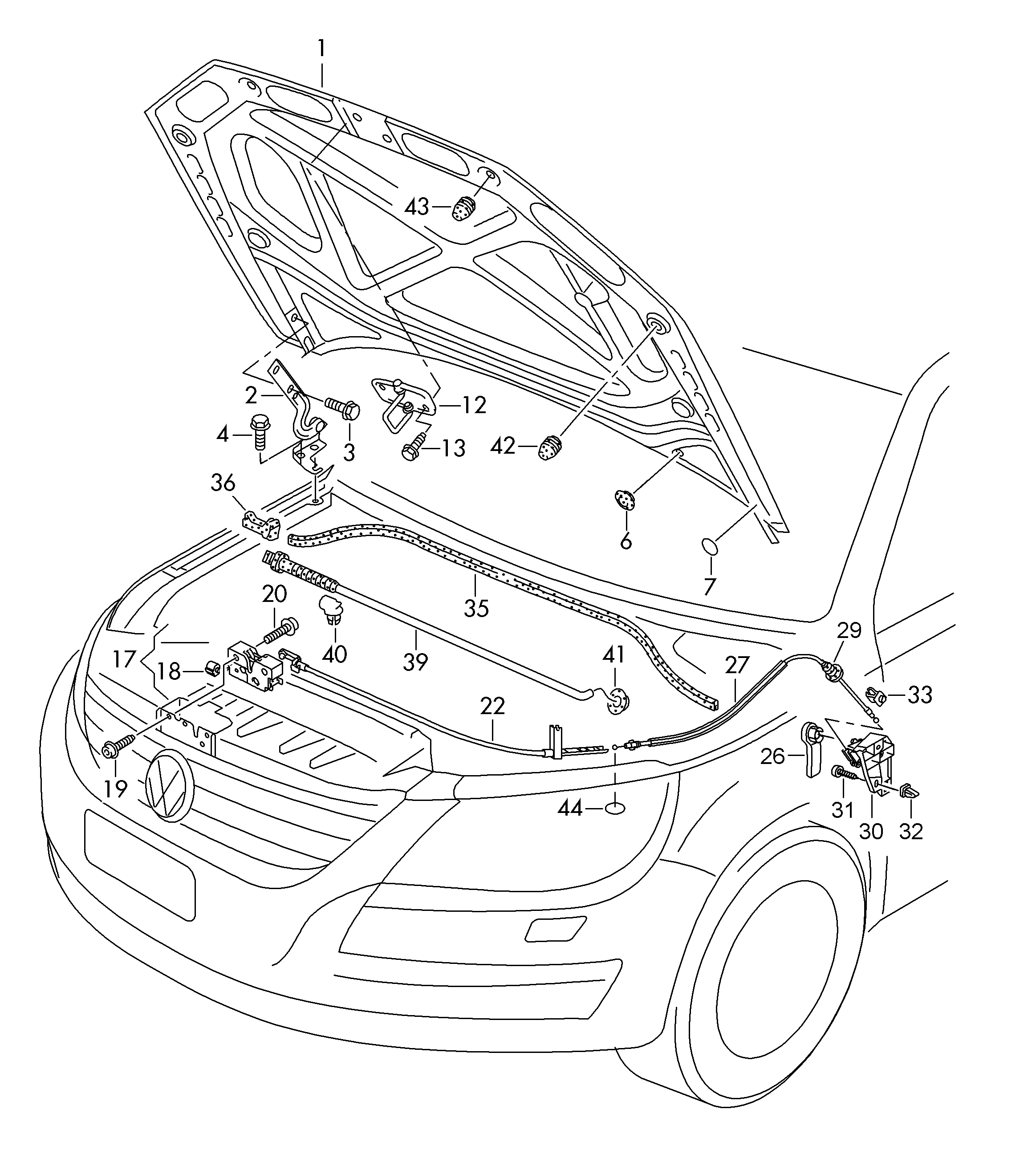

LOCK ASSY, BONNET

【41】171823395 Mounting rubber

【29】1K0823591B GROMMET

【12】1K8823186D Catch hook

【40】1U0823397 CLIP

【7】443817429 Seal, self-adhesive

【1】561823031E Frt hatch cover:

【27】561823535 Cable, hatch lock

【35】561823723 Weatherstrip, rdra

【36】561823729 Filler

【36】561823730 Filler

【18】5C6953236B Switch assy-contact

【17】5C7823509 Piece, hatch lock lower D-25.10.2010 -30.06.2012

【17】5C7823509B Piece, hatch lock lower

【17】5U0823509A Hatch lock lwr piece does not contain:

【33】6Q0823567 CLIP

【30】6R1823633 BRACKET

【43】867827500A Bumper kit

【42】8T0827249 Bumper kit

【6】N10226501 SPARE PART

【13】N90820401 Bolt (combination), self-lock see drawing

【32】N90833801 NUT

【20】N90917701 Bolt, self-locking

【4】N90921002 Bolt, hex

【31】N90974701 Bolt, hexagon no.1
