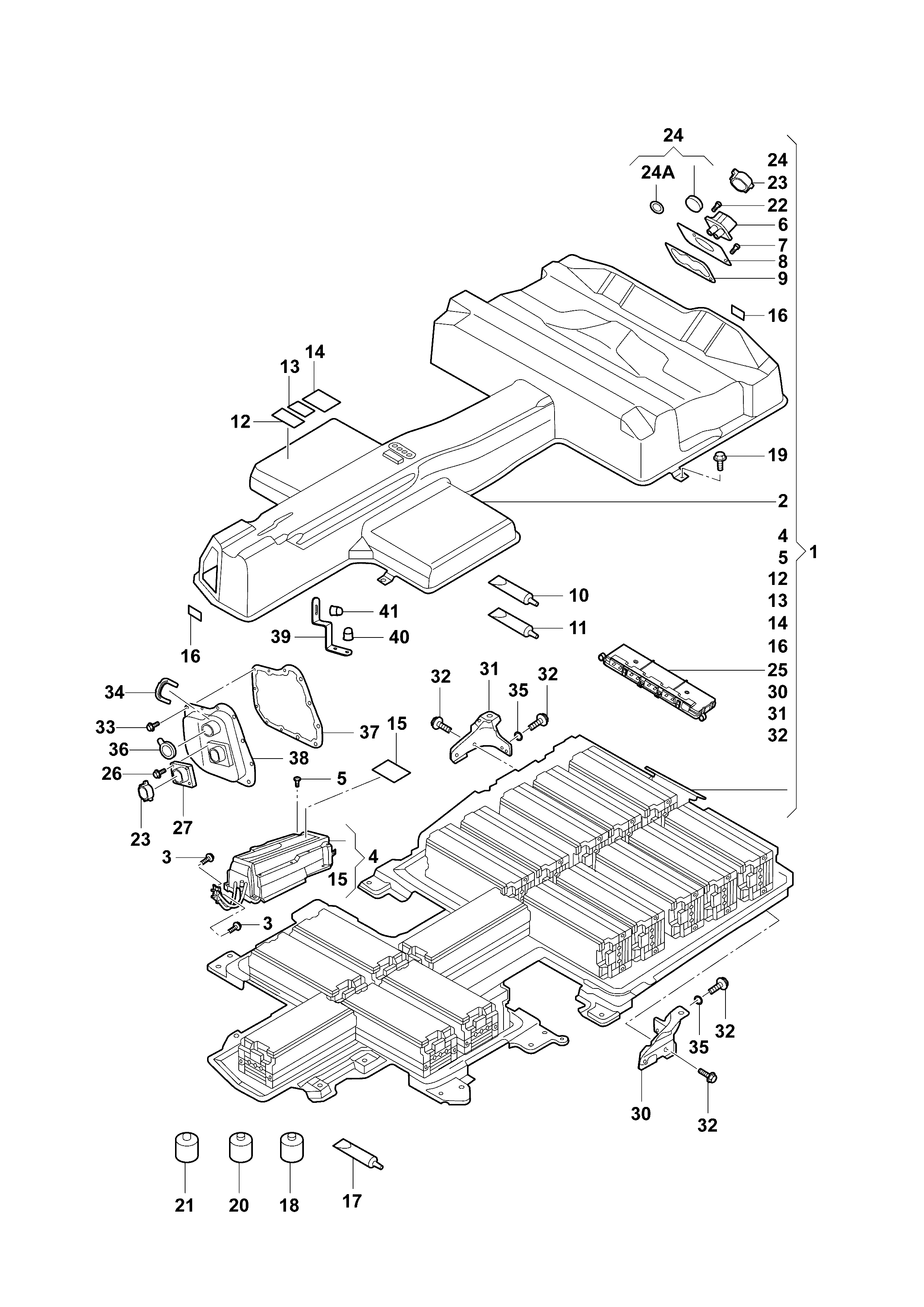

Cont unit, for battery junction box

【36】02E311120C Cap, guard

【34】0BH325147 Clip

【25】0Z1915140B Monitor-battery Cont unit D -21.12.2020

【16】12E010001B Plate, warning

【14】12E010006Q Warning board

【12】12E010849F Warning board

【13】12E010849G Plate, warning

【27】12E915703E Holder-plug

【23】12E971883 Boot sub-assy

【15】5GE010001B Plate, warning

【4】5KE915469J Control unit, Block, battery junction D-24.06.2019 -21.12.2020

【24】5NG915754 Valve assy-pressure

【30】5QD803641A Bracket Battery-high voltage

【31】5QD803642A Bracket Battery-high voltage

【17】D004660M2 Adhesive set, two component window glass

【20】D009401Z4 Cleaning solvents

【10】D316000A1 Wax base protector

【11】DCN197300Z1 Lock inhibitor, liquid

【32】N0195307 BOLT

【3】N10405604 Bolt, hexagon

【33】N10569501 Bolt, oval head w/hexagon

【26】N10599502 SCREW

【22】N10637301 Bolt, hexagon

【5】N10644401 Bolt, hexagon

【19】N10653103 Combined hexalobular bolt:

【7】N91252401 Bolt, hexagon

【41】WHT000869 Weld bolt & nut

【18】Z381224Z2 Primer adhesion and sealing material adhesion and sealing material
