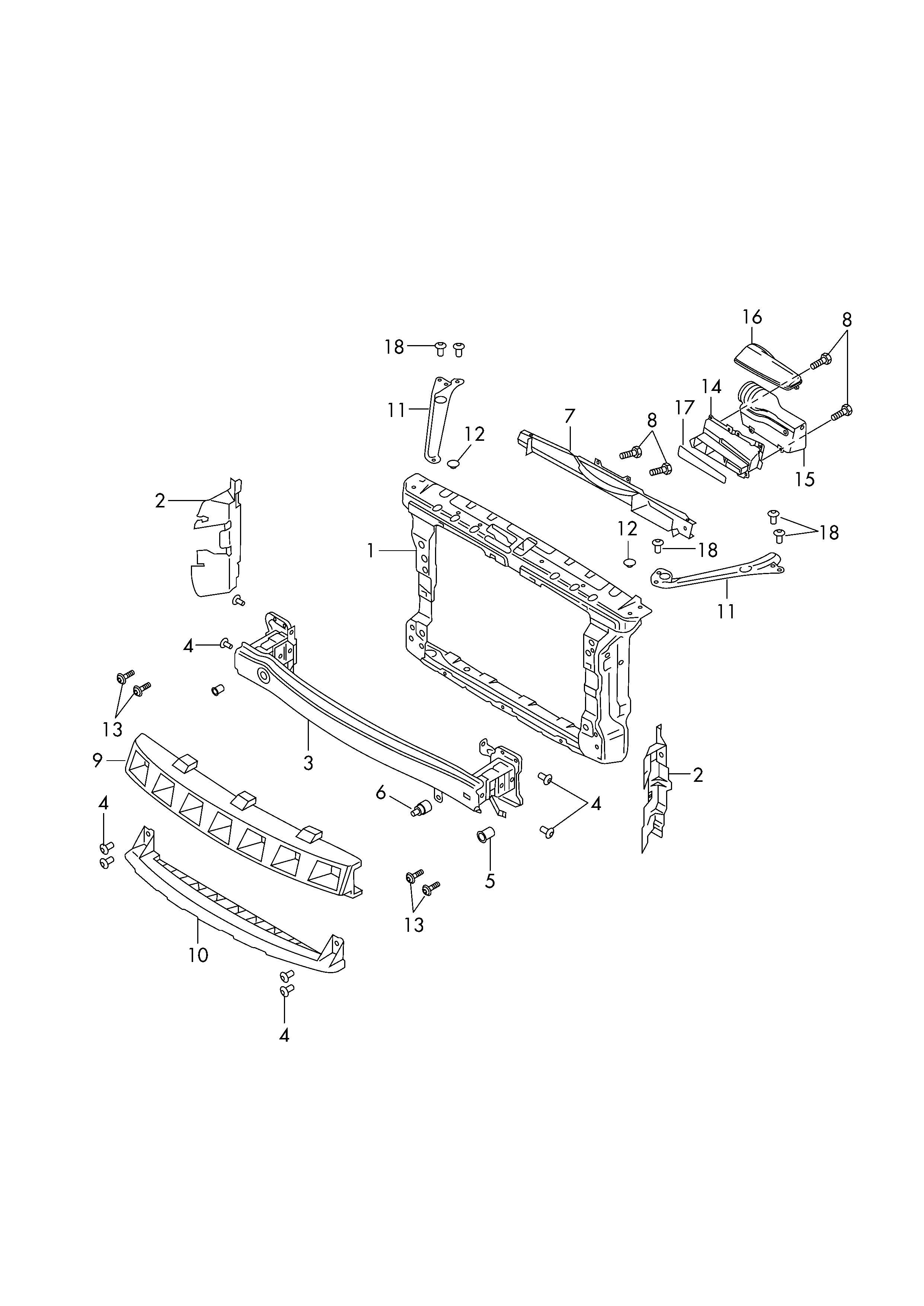

AIR INTAKE HOSE

【15】1K0805962E DUCT-AIR INTAKE

【15】1K0805962E9B9 Guide-air intake

【16】1K0805965J DUCT-AIR INTAKE

【16】1K0805965J9B9 Guide-air intake

【14】1K0805971C Channel, air guide

【14】1K0805971C9B9 Air guide

【15】5K7805962B DUCT-AIR INTAKE

【15】5K7805962B9B9 Guide-air intake

【16】5K7805965A THROTTLE BODY-C(W204(/E(W212)

【16】5K7805965A9B9 Spool

【11】5L0805932 AIR INTAKE HOSE

【1】5LD805591 Cowl top

【3】5LD807109 Reinf, for bumper mounting

【9】5LD807248 FRONT FILLER OF THE FRONT

【6】6RD820535 Sensor, ambient temperature

【12】AKL44830004 Protective film transparent adhesive and sealing material see drawing

【18】N90896301 Bolt, hexagon

【8】N90974701 Bolt, hexagon no.1

【4】N90999502 BOLT

【5】WHT003737 NUT
