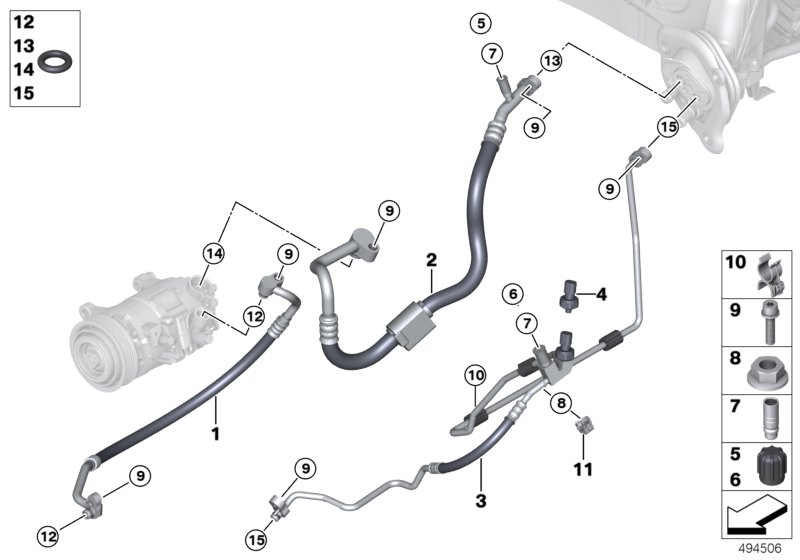

High pressure pipe compressor-condenser

【08】07119904023 NUT,HEX 6MM

【08】07119905544 Hex nut with washer

【09】07129905003 Bolt-ISA

【05】07149287978 Pipe assy-seal

【06】07149287979 Pipe, sealing high pressure

【14】64508363041 SEAL 40X55X8 ASW LD ACM

【15】64508374959 SEAL 40X55X8 ASW LD ACM

【12】64508375741 SEAL 40X55X8 ASW LD ACM

【11】64509206051 Bracket

【10】64509206053 Clip-double

【07】64536922944 Valve

【13】64538375742 SEAL 40X55X8 ASW LD ACM

【05】64538387437 Pipe assy-seal

【06】64538387438 Pipe, sealing high pressure

【04】64539181464 SENSOR, MAP

【03】64539212236 Condenser-high pressure pipe

【04】64539323658 SENSOR, MAP

【02】64539334689 Evaporator-suction

【03】64539364649 Condenser-high pressure pipe
