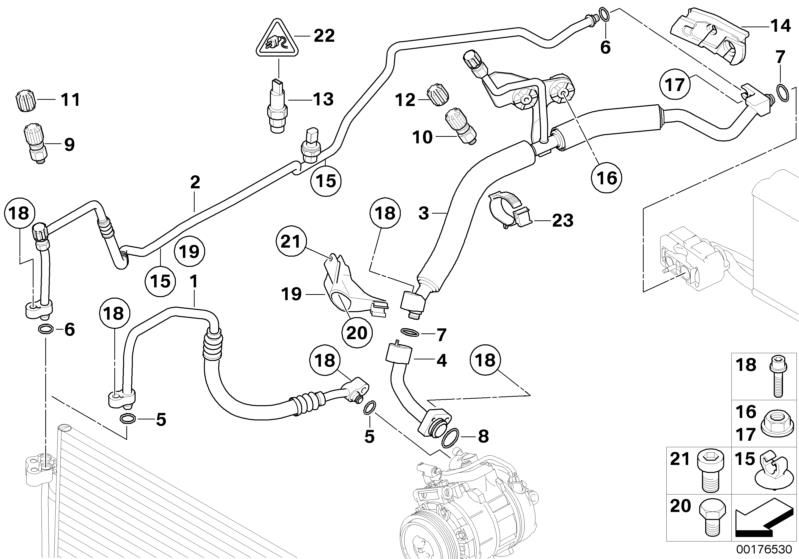

High pressure pipe compressor-condenser

【18】07119905720 Screw, washer

【16】07129904859 NUT,HEX 6MM

【17】07129904868 NUT,HEX 6MM

【16】07129905411 NUT,HEX 6MM

【17】07129905542 Hex nut with washer

【22】61132359998 Case-service op

【22】61138365348 SOCKET HOUSING / E60

【08】64506909894 SEAL 40X55X8 ASW LD ACM

【06】64508374959 SEAL 40X55X8 ASW LD ACM

【05】64508375741 SEAL 40X55X8 ASW LD ACM

【09】64509177577 INSERT VALVE/E60-67/E70-71/RR

【10】64509177579 VALVE INSERT/E60-67/E70-71/MIN

【14】64536915174 Pipe, cooling

【15】64536919700 Clip, pipe

【10】64536940460 VALVE INSERT/E60-67/E70-71/MIN

【09】64536940461 INSERT VALVE/E60-67/E70-71/RR

【07】64538375742 SEAL 40X55X8 ASW LD ACM

【12】64538387437 Pipe assy-seal

【11】64538387438 Pipe, sealing high pressure

【12】64538390633 CAP-SEALING

【13】64539141957 SENSOR, MAP

【13】64539181464 SENSOR, MAP

【13】64539323658 SENSOR, MAP
