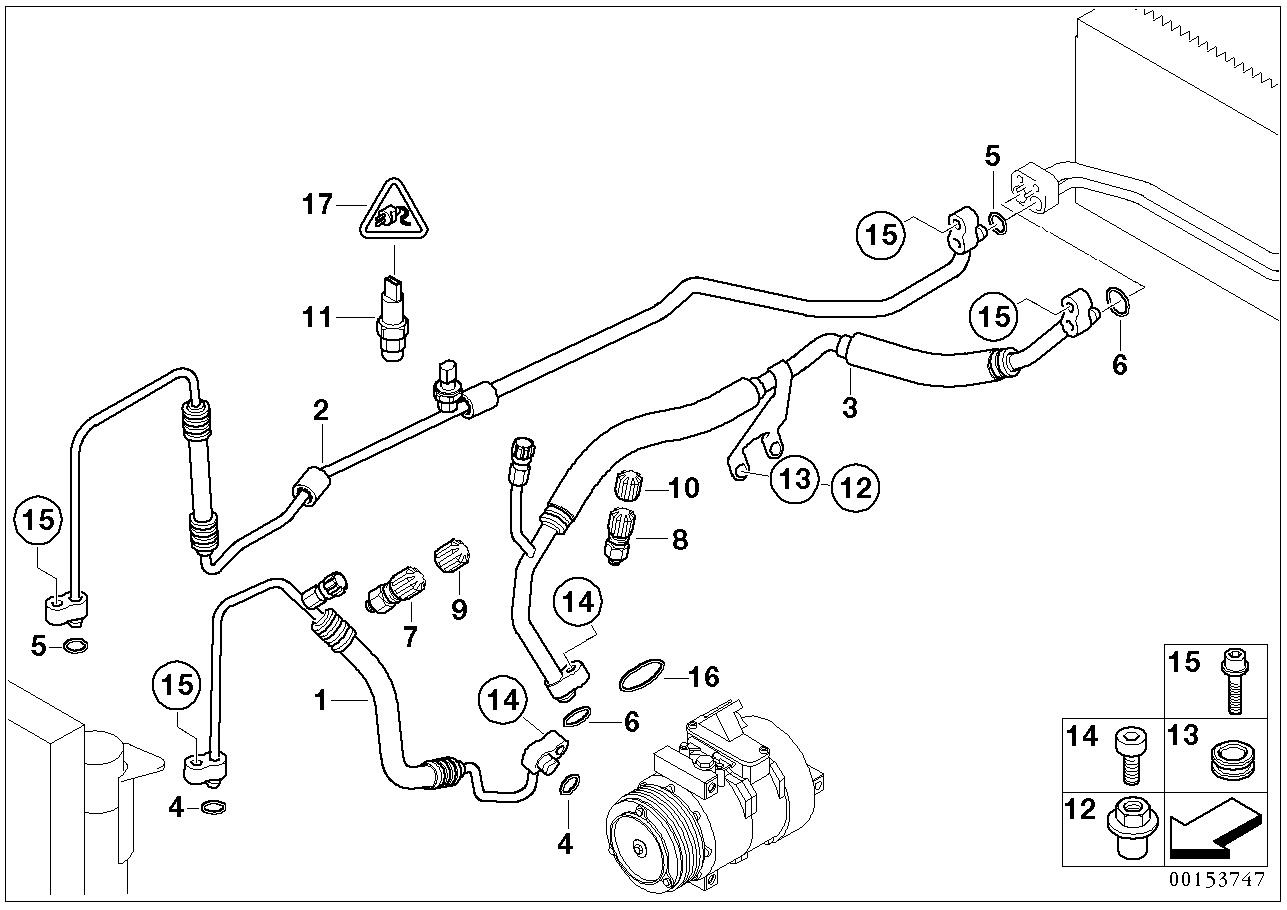

High pressure pipe compressor-condenser

【15】07119901535 Screw, washer

【15】07119905720 Screw, washer

【14】07119919978 Screw, knob

【14】07129904477 Bolt-ISA

【17】61132359998 Case-service op

【17】61138365348 SOCKET HOUSING / E60

【12】64128363739 NUT,HEX 6MM

【13】64128374551 CAP-SEALING

【05】64508374959 SEALING RING

【04】64508375741 SEALING RING

【07】64509177577 INSERT VALVE/E60-67/E70-71/RR

【08】64509177579 VALVE INSERT/E60-67/E70-71/MIN

【01】64509185992 High pressure pipe compressor-condenser

【03】64509187296 Evaporator-suction

【11】64536909257 Sensor assy-pressure

【03】64536922694 Evaporator-suction

【08】64536940460 VALVE INSERT/E60-67/E70-71/MIN

【07】64536940461 INSERT VALVE/E60-67/E70-71/RR

【02】64536987111 Condenser-high pressure pipe

【11】64538370623 Sensor assy-pressure

【06】64538375742 SEALING RING

【01】64538379836 High pressure pipe compressor-condenser

【02】64538379837 Condenser-high pressure pipe

【10】64538387437 Pipe assy-seal

【09】64538387438 Pipe, sealing high pressure

【10】64538390633 CAP-SEALING

【08】64538391214 VALVE INSERT/E60-67/E70-71/MIN

【07】64538391215 INSERT VALVE/E60-67/E70-71/RR

【03】64539140731 Evaporator-suction

【11】64539141957 Sensor assy-pressure

【11】64539181464 Sensor assy-pressure

【11】64539323658 Sensor assy-pressure
