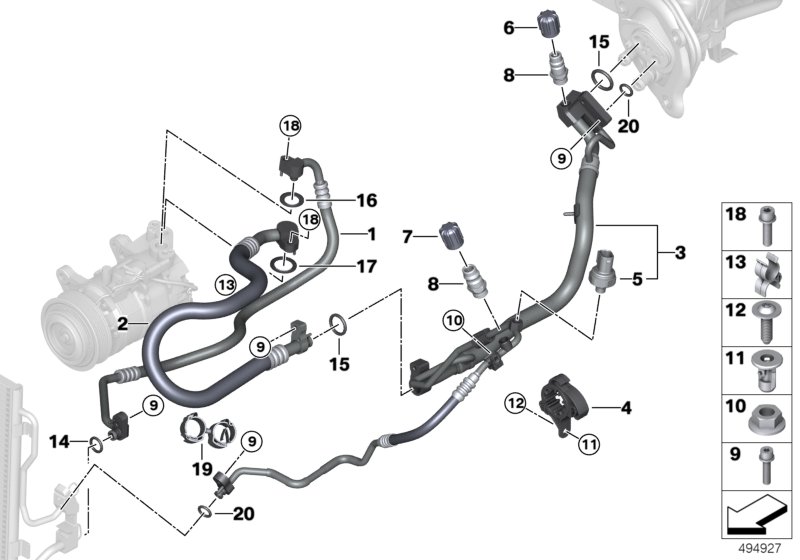

High pressure pipe compressor-condenser

【10】07119905544 Hex nut with washer

【18】07129904835 Bolt-ISA

【12】07147127714 Screw, oval countersunk

【11】07147201307 NUT

【06】07149287978 Pipe assy-seal

【07】07149287979 Pipe, sealing high pressure

【04】07149352228 Duct, bracket air conditioner

【09】13517632572 Bolt, Isa w/flat

【19】17128664068 Hose retainer swivel

【20】64508374959 SEALING RING

【14】64508375741 SEALING RING

【13】64509206053 Clip-double

【08】64536922944 Valve

【15】64538375742 SEALING RING

【06】64538387437 Pipe assy-seal

【07】64538387438 Pipe, sealing high pressure

【16】64539284018 SEALING RING

【17】64539284019 SEALING RING

【05】64539323658 Sensor assy-pressure

【03】64539337125 Condenser-high pressure pipe

【02】64539337134 Evaporator-suction
