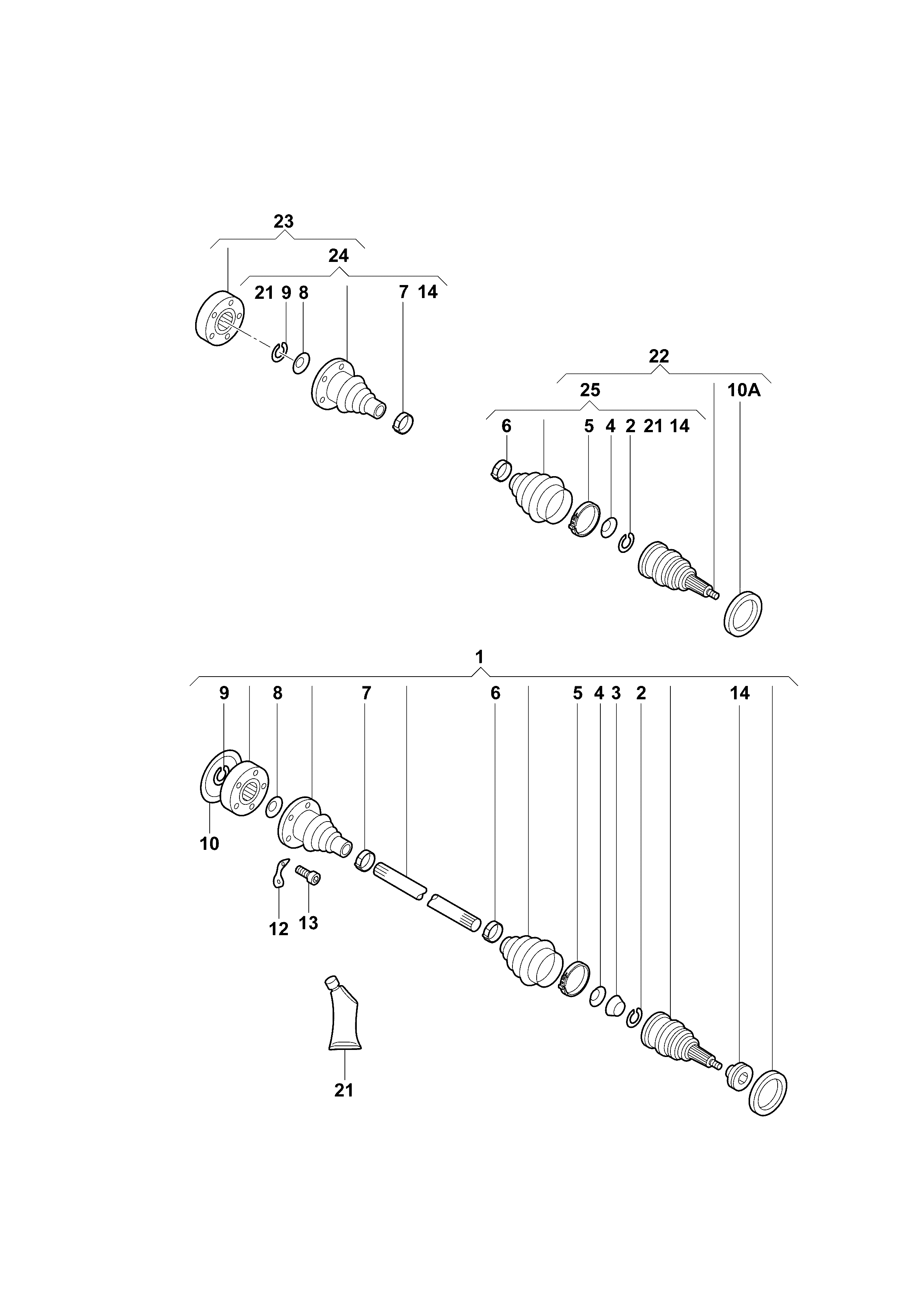

Swing shaft with cv joint

【8】113501327A WASHER

【9】113517279 Ring, snap

【2】171407297C Ring, snap

【10】1H0407309A WASHER, SEALING 20MM

【12】1K0407357B Spg plate

【12】1K0407357C Spg plate

【4】321407287 Spg, disc

【3】321407295A Ring, thrust

【14】6Q0407396B Nut, twelve

【1】6QD407271J Swing shaft with cv joint

【1】6QD407271K Band syncro Shaft, counter weight

【1】6QD407272R Band syncro Shaft, counter weight

【10A】6QD407623 WASHER, SEALING 20MM

【22】6QD498099D Joint assy-tie:

【22】6QD498099E Joint assy-tie:

【23】6QD498103A JOINT KIT/DRIVE SHFT/A3/SKD

【23】6QD498103B JOINT KIT/DRIVE SHFT/A3/SKD

【24】6QD498201A BELLOW SET DRIVE SHAFT-TOUAREG

【24】6QD498201B BELLOW SET DRIVE SHAFT-TOUAREG

【25】6QD498203 BELLOW SET DRIVE SHAFT-TOUAREG

【25】6QD498203A BELLOW SET DRIVE SHAFT-TOUAREG

【21】GCN052133Z3 Grease, 3 pin joint

【5】N10701301 BAND-BOOT,DRIVE SHAFT OUTER

【7】N90442501 BAND-BOOT,DRIVE SHAFT OUTER

【5】N90941101 BAND-BOOT,DRIVE SHAFT OUTER

【13】N91108201 BOLT
