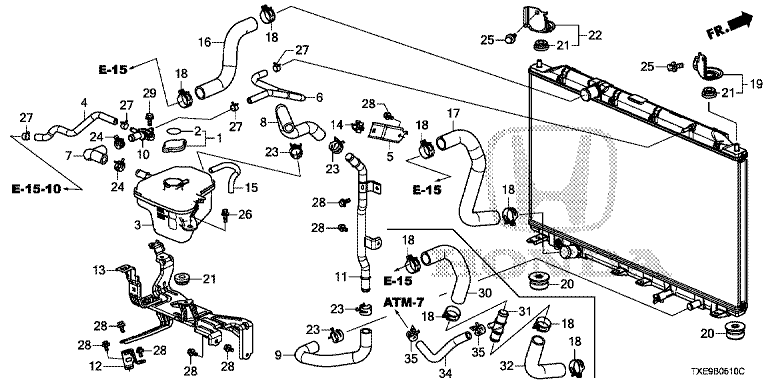

SUPPORT, RADIATOR, UPPER

【1】1904559B005 Cover comp

【2】19046RAAA00 LABEL,RAD CAP

【3】191015MYH01 Tank comp., expansio

【4】191035MYH01 HOSE, EXPANSION TANK INLET (A)

【5】191045MSH00 BRACKET, EXPANSION TANK INLET HOSE

【6】191045MYH00 HOSE, EXPANSION TANK INLET (B)

【7】191065MYH00 HOSE, EXPANSION TANK INLET (C)

【8】191075MYH00 HOSE, EXPANSION TANK OUTLET (A)

【9】191085MYH00 HOSE, EXPANSION TANK OUTLET (B)

【10】191105AAA00 Joint assy-three way

【11】191135MYH00 Tube comp., expansion ta

【12】191145MSH00 STAY COMP., EXPANSION TANK BRACKET

【13】191155MYH00 BRACKET COMP., EXPANSION TANK

【14】1911859B005 CLAMP, EXPANSION TANK HOSE (A)

【15】191425MSH00 Pipe-overflow

【16】195015MYH00 HOSE,WATER UPPER

【17】195025MYH00 HOSE WATER LOWER

【30】195025MYH10 HOSE,WATER LOWER

【31】195035J2A50 JOINT, WATER HOSE

【32】195045MYH10 HOSE,WATER LOWER

【18】19511PT0004 CLIP,WATERHOSE

【35】19512RE2E01 CLIP,WATERHOSE

【34】252625MZH01 Tube, atf warmer outlet

【20】74172TA0A10 Cushion, radiator mounting, lower

【21】74173SJ4000 Cushion, radiator mounting, lower

【22】74176THAH00 Bracket, radiator mounting, upper

【23】91405TK8A01 Clip, water hose 24

【24】91408RWCA01 CLIP,WATERHOSE

【25】934030801604 Bolt, wash.8x16

【26】934040601608 BOLT-WASH,6X16

【27】950024125004 CLAMP D12,TUBE

【28】957010601208 Bolt, flange 6X12

【29】957010601608 Bolt 6X16, flange
