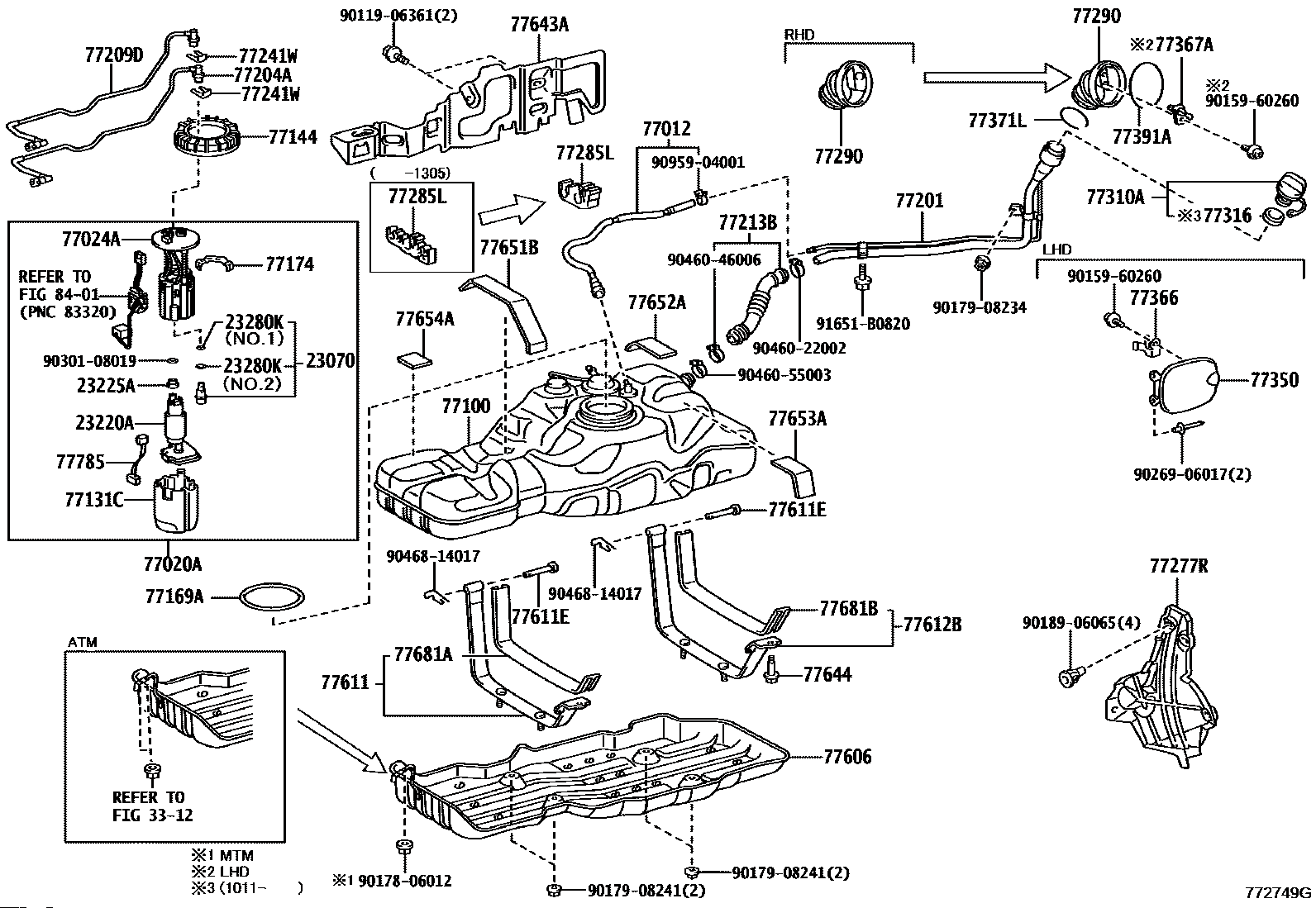

TANK ASSY, FUEL

【23070】2307031010 Valve assy, fuel main

【23220A】2322031430 PUMP,FUEL

【23220A】2322031460 PUMP ASSY, FUEL W/FILTER

【23225A】2322523010 SPACER, FUEL PUMP

【77100】7700135A01 TANK ASSY-FUEL

【77012】7701235050 TUBE SUB-ASSY, FUEL TANK BREATHER

【77020A】7702035140 PUMP ASSY FUEL

【77020A】7702035180 PUMP ASSY FUEL

【77020A】7702035181 PUMP ASSY FUEL

【77020A】7702035210 PUMP ASSY FUEL

【77024A】7702435060 BRACKET, FUEL PUMP

【77024A】7702435070 BRACKET, FUEL PUMP

【77024A】7702460260 BRACKET, FUEL PUMP

【77024A】7702460270 BRACKET, FUEL PUMP

【77024A】7702460310 BRACKET, FUEL PUMP

【77024A】7702460430 BRACKET, FUEL PUMP

【77131C】7713160090 SUB-TANK, FUEL, NO.1

【77144】7714435010 Retainer, fuel pump gauge

【77169A】7716930050 FUEL TANK UPPER INSULATOR

【77169A】7716935010 FUEL TANK UPPER INSULATOR

【77169A】7716947030 FUEL TANK UPPER INSULATOR

【77174】7717460020 SUPPORT, FUEL SUCTION, NO.1

【77204A】7720435080 TUBE, FUEL TANK RETURN

【77209D】7720935450 TUBE SUB-ASSY, FUEL TANK MAIN

【77213B】7721335370 HOSE, FUEL TANK TO FILLER PIPE

【77213B】7721335380 HOSE, FUEL TANK TO FILLER PIPE

【77241W】7724133011 Clip, tube joint

【77241W】7724160320 Clip, tube joint

【77277R】7727735030 PROTECTOR, FUEL TANK FILLER PIPE

【77277R】7727735031 PROTECTOR, FUEL TANK FILLER PIPE

【77285L】7728535620 CLAMP, FUEL TUBE, NO.1

【77285L】7728535770 CLAMP, FUEL TUBE, NO.1

【77310A】7730012020 Cap assy-fuel tank

【77310A】7730052030 Cap assy-fuel tank

【77310A】7730052040 Cap assy-fuel tank

【77316】7731652040 GASKET, FUEL TANK CAP

【77350】7735035060 LID ASSY, FUEL FILLER OPENING

【77366】7736030070 SPRING, FUEL FILLER OPENING LID HINGE

【77366】7736635030 SPRING, FUEL FILLER OPENING LID HINGE

【77367A】7736735020 CLAMP, FUEL FILLER LID PIN, NO.1

【77371L】7737135010 RING, FUEL TANK FILLER PIPE SHIELD

【77611】7760135110 BAND, FUEL TANK

【77606】7760635070 Protector sub-assy, fuel tank, no.1

【77644】7764435030 BOLT, FUEL TANK

【77644】7764460020 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【77651B】7765135070 PAD-FUEL TANK

【77611E】7765335040 Pin, fuel tank band

【77681B】7768135041 Seat, fuel tank band, rh/lh

【77785】7778560020 Harness, fuel pump

【77785】7778560021 Harness, fuel pump

【23280K】9030104013 Ring, o (for fuel pressure regulator)

【23280K】9030115024 Ring, o (for fuel pressure regulator)
