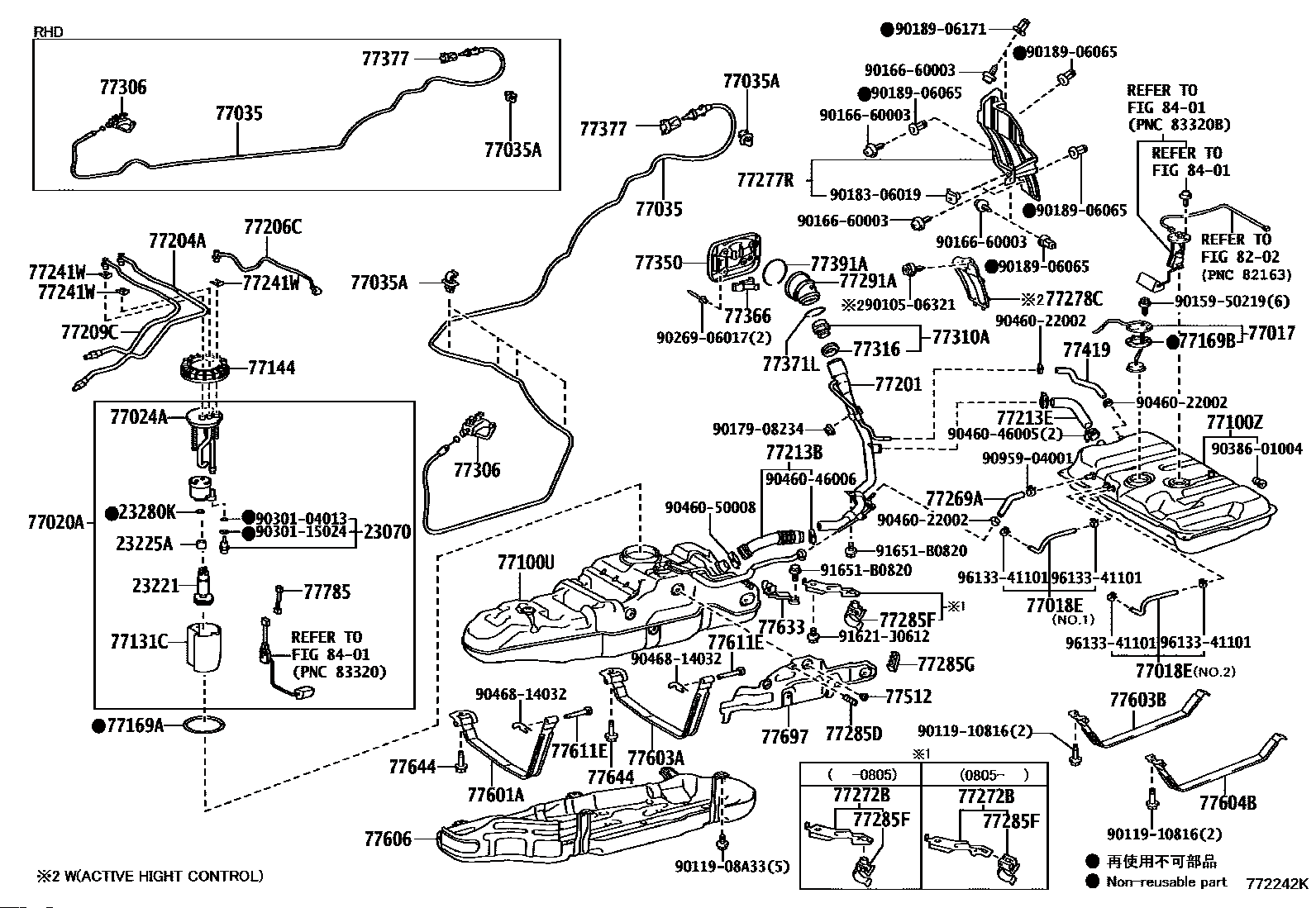

PUMP ASSY FUEL

【23070】2307038010 Valve assy, fuel main

【23221】2322038061 PUMP,FUEL

【23221】2322050271 PUMP,FUEL

【23225A】2322523010 SPACER, FUEL PUMP

【77100U】7700160821 TANK SUB-ASSY, FUEL

【77100U】7700160822 TANK SUB-ASSY, FUEL

【77100Z】7700160830 SUB-TANK SUB-ASSY

【77100Z】7700160831 SUB-TANK SUB-ASSY

【77017】7701760550 TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

【77018E】7701860160 TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

【77018E】7701860170 TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

【77018E】7701860210 TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

【77020A】7702060320 PUMP ASSY FUEL

【77020A】7702060372 PUMP ASSY FUEL

【77020A】7702060391 PUMP ASSY FUEL

【77020A】7702060392 PUMP ASSY FUEL

【77020A】7702060550 PUMP ASSY FUEL

【77020A】7702060570 PUMP ASSY FUEL

【77020A】7702060580 PUMP ASSY FUEL

【77024A】7702460230 BRACKET, FUEL PUMP

【77024A】7702460251 BRACKET, FUEL PUMP

【77024A】7702460300 BRACKET, FUEL PUMP

【77024A】7702460400 BRACKET, FUEL PUMP

【77024A】7702460420 BRACKET, FUEL PUMP

【77035】7703560140 CABLE SUB-ASSY, FUEL LID LOCK CONTROL

【77144】7714447020 Retainer, fuel pump gauge

【77169A】7716930050 FUEL TANK UPPER INSULATOR

【77169B】7716932010 GASKET (FOR FUEL TANK SUCTION TUBE)

【77169A】7716947030 FUEL TANK UPPER INSULATOR

【77201】7720160B10 PIPE SUB-ASSY, FUEL TANK INLET

【77204A】7720460070 TUBE, FUEL TANK RETURN

【77206C】7720660460 TUBE SUB-ASSY, FUEL MAIN, NO.2

【77206C】7720660461 TUBE SUB-ASSY, FUEL MAIN, NO.2

【77209C】7720960470 TUBE SUB-ASSY, FUEL TANK MAIN

【77213B】7721360310 HOSE, FUEL TANK TO FILLER PIPE

【77213E】7721360320 HOSE, FUEL TANK TO FILLER PIPE

【77241W】7724133011 Clip, tube joint

【77241W】7724160320 Clip, tube joint

【77277R】7727760130 PROTECTOR, FUEL TANK FILLER PIPE

【77277R】7727760140 PROTECTOR, FUEL TANK FILLER PIPE

【77278C】7727860020 PROTECTOR, FUEL TANK FILLER PIPE, NO.2

【77285D】7728560840 CLAMP, FUEL TUBE, NO.1

【77285G】7728560870 CLAMP, FUEL TUBE, NO.1

【77291A】7729160120 SHIELD, FUEL TANK FILLER PIPE

【77310A】7730012020 Cap assy-fuel tank

【77310A】7730052030 Cap assy-fuel tank

【77306】7730628060C0 LEVER SUB-ASSY, FUEL LID LOCK OPEN

【77306】7730628060E0 LEVER SUB-ASSY, FUEL LID LOCK OPEN

【77306】7730658020A0 LEVER SUB-ASSY, FUEL LID LOCK OPEN

【77306】7730658020C0 LEVER SUB-ASSY, FUEL LID LOCK OPEN

【77316】7731652040 GASKET, FUEL TANK CAP

【77350】7735060090 LID ASSY, FUEL FILLER OPENING

【77366】7736035040 SPRING, FUEL FILLER OPENING LID HINGE

【77371L】7737135010 RING, FUEL TANK FILLER PIPE SHIELD

【77377】7737735010 RETAINER, FUEL FILLER OPENING LID LOCK

【77391A】7739135020 RING, FUEL INLET BOX

【77419】7741960020 HOSE, FUEL, NO.3

【77512】7751235140 BRACKET-FUEL TANK

【77601A】7760160310 BAND SUB-ASSY, FUEL TANK, NO.1 RH

【77603A】7760260110 BAND SUB-ASSY, FUEL TANK, NO.1 LH

【77603B】7760360040 BAND SUB-ASSY, FUEL TANK, NO.2 RH

【77604B】7760460040 BAND SUB-ASSY, FUEL TANK, NO.2 LH

【77606】7760660170 Protector sub-assy, fuel tank, no.1

【77644】7764435030 BOLT, FUEL TANK

【77611E】7765335040 Pin, fuel tank band

【77697】7769760010 Insulator, fuel tank, no.1

【77785】7778560020 Harness, fuel pump

【77785】7778560021 Harness, fuel pump

【23280K】9030108019 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【77035A】9046906005 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【77269A】9531313020 HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
