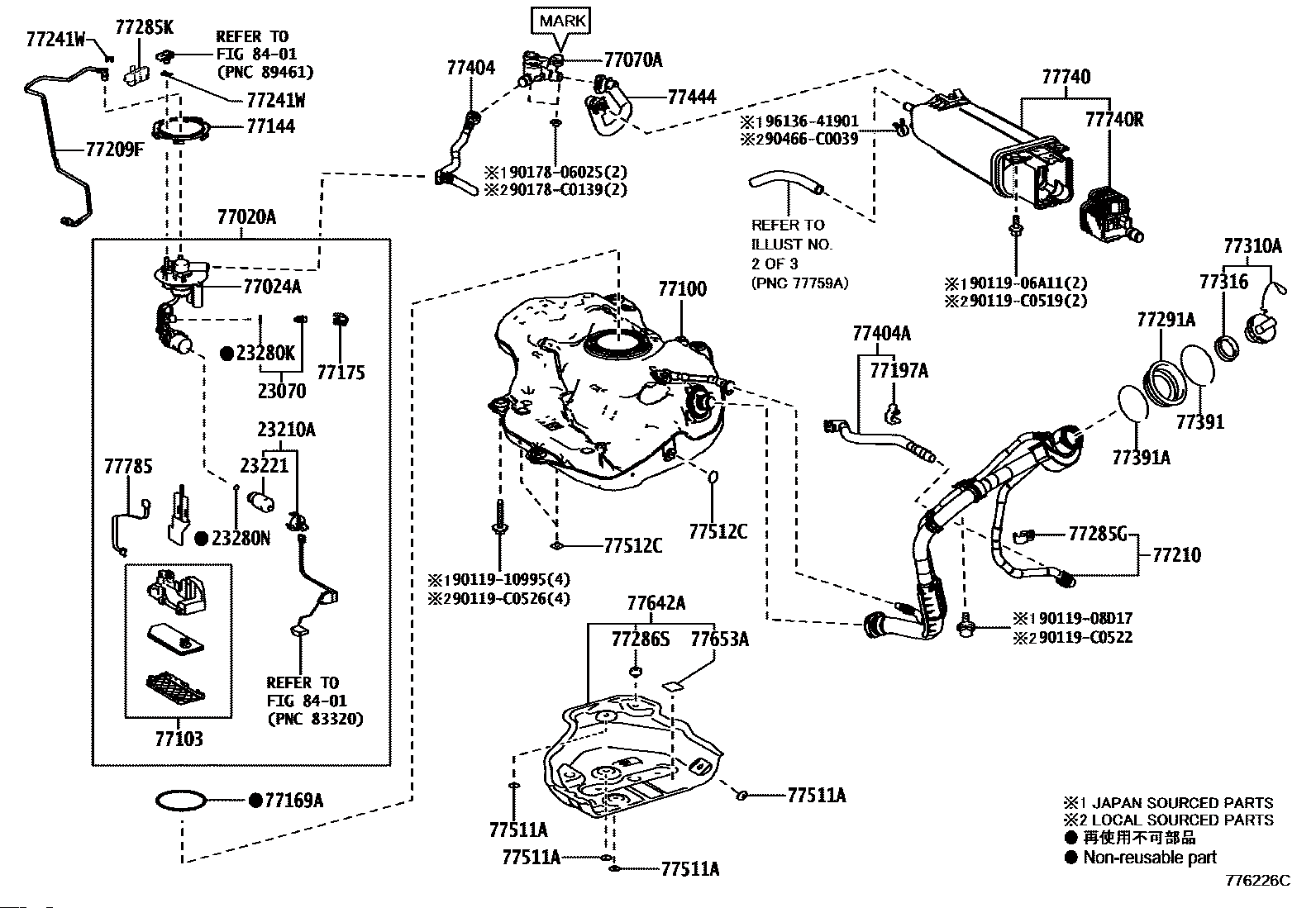

TUBE ASSY FUEL

【23070】2307024010 Valve assy, fuel main

【23210A】23210F2040 PUMP FUEL

【23221】2322124010 PUMP,FUEL

【77100】77001F4080 TANK ASSY-FUEL

【77020A】77020F4090 PUMP ASSY FUEL

【77024A】77024F4080 BRACKET, FUEL PUMP

【77103】771030R060 SUB-TANK SUB-ASSY

【77144】7714430030 Retainer, fuel pump gauge

【77169A】7716902130 FUEL TANK UPPER INSULATOR

【77169A】771690K030 FUEL TANK UPPER INSULATOR

【77169A】7716947030 FUEL TANK UPPER INSULATOR

【77175】77175F4020 SUPPORT, FUEL SUCTION, NO.2

【77197A】7719706100 Clamp, evaporation tube, no.2

【77209F】77209F4090 TUBE SUB-ASSY, FUEL TANK MAIN

【77210】7721002851 Pipe assy-fuel tank filler

【77241W】7724102020 Clip, tube joint

【77241W】7724133011 Clip, tube joint

【77285K】7728502230 CLAMP, FUEL TUBE, NO.1

【77285G】7728506580 CLAMP, FUEL TUBE, NO.1

【77285K】7728510060 CLAMP, FUEL TUBE, NO.1

【77285K】7728530350 CLAMP, FUEL TUBE, NO.1

【77286S】7728612110 Cushion, fuel tank protector

【77291A】7729102331 SHIELD, FUEL TANK FILLER PIPE

【77310A】7730006110 Cap assy-fuel tank

【77310A】773000R010 Cap assy-fuel tank

【77316】773160F020 GASKET, FUEL TANK CAP

【77316】7731675020 GASKET, FUEL TANK CAP

【77391A】7739102170 RING, FUEL INLET BOX

【77391】773910R080 BOLT - LWR ARM

【77404】77404F4080 Hose sub-assy, fuel tank ventilation

【77404A】77404F4110 Hose sub-assy, fuel tank ventilation

【77511A】7751206040 Bracket, fuel tank, rear

【77511A】7751235140 BRACKET-FUEL TANK

【77512C】7751247030 BOLT - LWR ARM

【77740】7774002240 CANISTER ASSY, CHARCOAL

【77740】77740F4030 CANISTER ASSY, CHARCOAL

【77785】7778576010 Harness, fuel pump

【23280N】9030115024 Ring, o (for fuel pressure regulator)

【23280N】90301C0073 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【77740R】90910CF002 PUMP SUB-ASSY, LEAK
