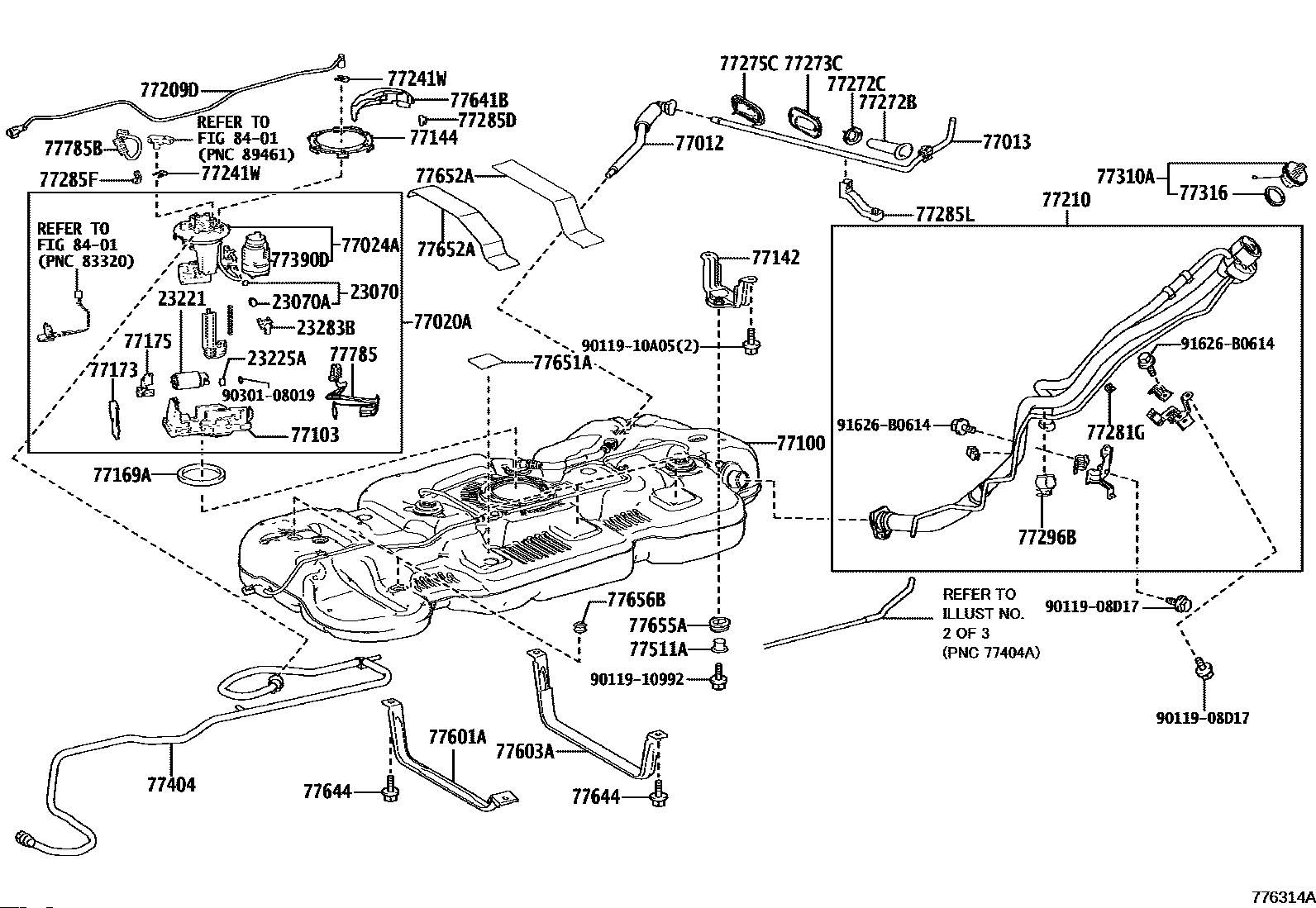

TUBE SUB-ASSY FUEL

【23070】2307025020 Valve assy, fuel main

【23070】2307031030 Valve assy, fuel main

【23070】2307036010 Valve assy, fuel main

【23221】2322125030 PUMP FUEL

【23225A】2322521020 SPACER, FUEL PUMP

【23225A】2322531010 SPACER, FUEL PUMP

【23225A】2322531020 SPACER, FUEL PUMP

【23283B】2328336010 HOLDER, FUEL

【77020A】7702058070 PUMP ASSY FUEL

【77020A】77020V2080 TUBE ASSY FUEL

【77024A】7702458060 BRACKET, FUEL PUMP

【77103】7710342120 SUB-TANK, FUEL, NO.1

【77144】7714430030 Retainer, fuel pump gauge

【77169A】7716947040 FUEL TANK UPPER INSULATOR

【77169A】7716953010 FUEL TANK UPPER INSULATOR

【77241W】7724133011 Clip, tube joint

【77241W】7724160550 Clip, tube joint

【77272B】7727258010 Bracket, breather tube no.1 support

【77272C】7727358010 Bracket, breather tube, no.2

【77281G】7728130110 CLAMP, FUEL FILLER

【77285D】7728530350 CLAMP, FUEL TUBE, NO.1

【77296B】7729658010 SUPPORT, FUEL TUBE PROTECTOR, NO.1

【77310A】7730011010 Cap assy-fuel tank

【77310A】7730012020 Cap assy-fuel tank

【77316】7731652040 GASKET, FUEL TANK CAP

【77316】7731675020 GASKET, FUEL TANK CAP

【77651A】7765112070 Cushion, fuel tank, no.2

【77652A】7765135070 PAD-FUEL TANK

【77785】7778528030 Harness, fuel pump

【77644】9011910A05 BOLT, W/WASHER

【23070A】9030115024 Ring, o (for fuel pressure regulator)
