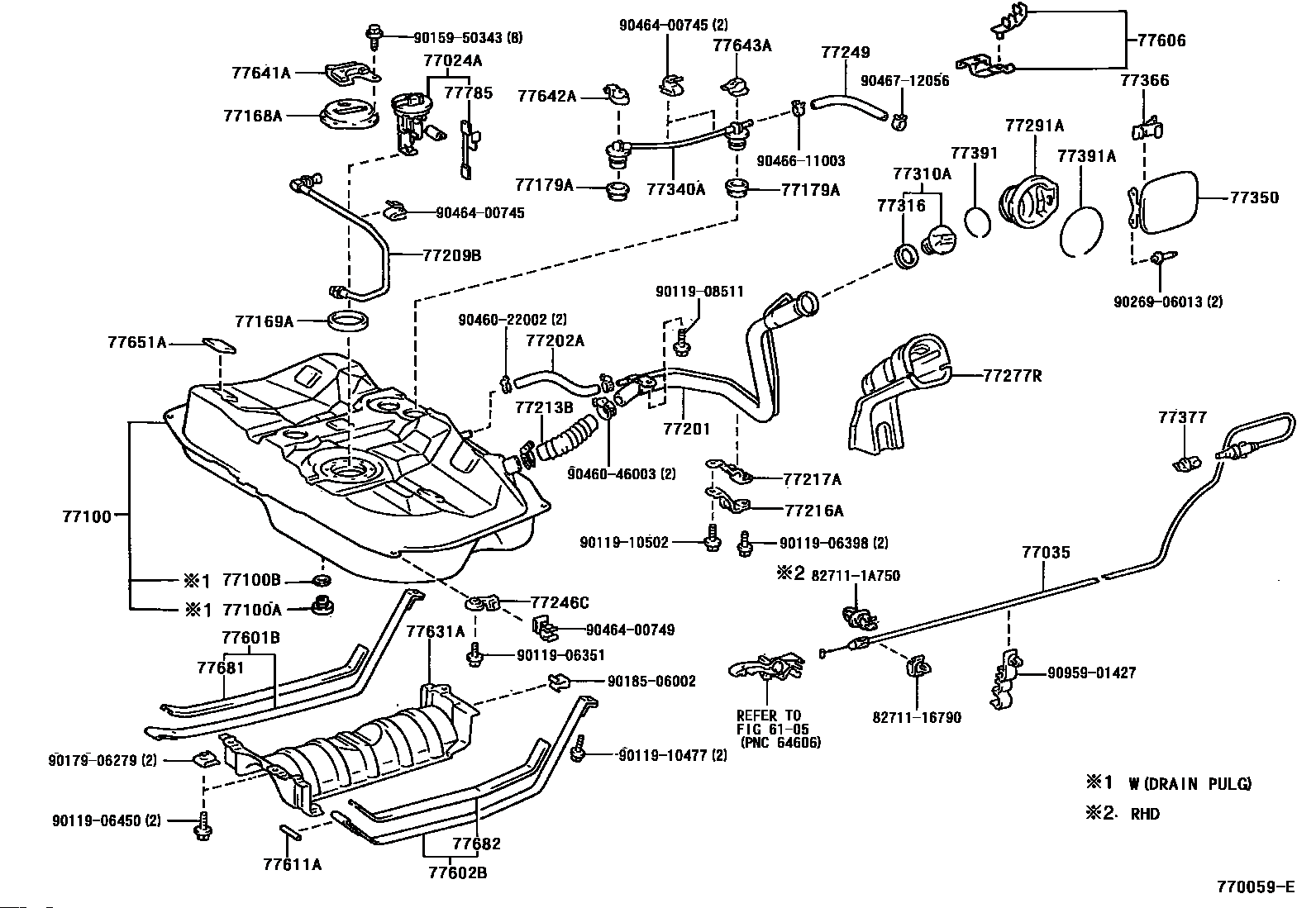

HOSE, FUEL TANK TO FILLER PIPE

【77100】7700139365 TANK ASSY-FUEL

【77024A】7702433010 BRACKET, FUEL PUMP

【77035】7703533080 CABLE SUB-ASSY, FUEL LID LOCK CONTROL

【77169A】7716933010 GASKET, FUEL PUMP BRACKET

【77179A】7717933010 GASKET, FUEL TANK BREATHER TUBE

【77209B】7720933010 TUBE SUB-ASSY, FUEL PUMP

【77213B】7721333050 HOSE, FUEL TANK TO FILLER PIPE

【77277R】7727733041 PROTECTOR, FUEL TANK FILLER PIPE

【77291A】7729133010 SHIELD, FUEL TANK FILLER PIPE

【77310A】7730028010 Cap assy-fuel tank

【77310A】7731048010 Cap assy-fuel tank

【77316】7731616010 GASKET, FUEL TANK CAP

【77340A】7734033020 VALVE ASSY, FUEL CUT OFF W/TUBE

【77350】7735033030 LID ASSY, FUEL FILLER OPENING

【77366】7736033020 SPRING, FUEL FILLER OPENING LID HINGE

【77377】7737712050 RETAINER, FUEL FILLER OPENING LID LOCK

【77391】7739112020 RING, FUEL INLET BOX

【77391A】7739120030 RING, FUEL INLET BOX

【77631A】7763133021 PROTECTOR, FUEL TANK, LOWER CENTER

【77642A】7764233010 PROTECTOR, FUEL

【77643A】7764333010 Protector, fuel tank, no.3

【77682】7768132060 Seat, fuel tank band, rh/lh

【77785】7778533020 Harness, fuel pump

【77611A】9025008019 Pin (for fuel tank band)

【77202A】9531213024 HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

【77202A】9531313024 HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

【77249】9533306020 HOSE (FOR FUEL TUBE CONNECTOR)
