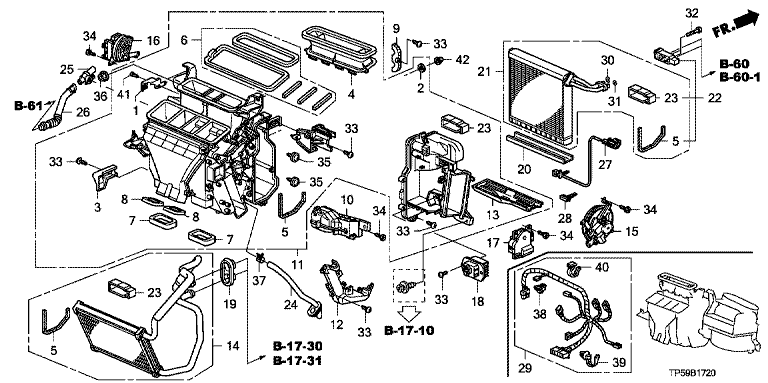

HEATERUNITSUBA

【3】77287TA0A00 Brkt-cvr ctr lwr cover

【6】79023TB0H11 SHIM SET

【7】79024TB0H11 Packing, heater, rear

【9】79030TB0H11 Stay, heater pipe

【10】79102TB0H11 Duct assy-heater

【12】79107TB0H11 COVER, HEATER CORE

【14】79115TB0H11 CORE ASSY - HEATER

【14】79115TZ8H11 CORE ASSY - HEATER

【15】79140TB0H41 MOTOR ASSY., MODE

【16】79160TB0H41 MOTOR ASSY., AIR MIX

【17】79170TB0H41 MOTOR ASSY., AIR MIX

【18】79330SDGW51 POWER TRANSISTOR

【19】79731S5A000 Grommet-heater pi

【20】80203TB0H11 Plate, lower

【21】80211TP5H01 EVAP COMP ASSY

【22】80221TB0H11 VALVE ASSY., EXPANSI

【23】80222TB0H11 Seal, expansion valve

【24】80271TA0A00 HOSE-DRAIN

【25】80534S84A41 ASPIRATOR

【26】80542TB0H01 Hose B, aspirator

【27】80560TB0H11 Thermistor a/c

【28】80566SNKA01 Clip, evaporator sensor

【29】80650TA0A20 Cable, airconditioner

【30】80871SN7003 SEAL,RING

【31】80872SN7003 SEAL,RING

【32】90126S5JM01 Socket bolt 5X40

【34】90127S3N003 Screw, tapping, 4X16

【33】90127SX0003 Screw, tapping, 4X16

【35】90133SR3003 Screw, wash 4X16

【36】90321SV4003 Nut-washer, 6mm

【37】90661S2A003 Clip, drain hose

【38】91533STK003 Clip, conn

【39】91540STK003 CLIP, HARNESS BAND (BLACK) (155.3MM)

【40】91549TA0003 Clip, harn band

【41】9391315220 SCREW,TAPPING,5X1

【42】9407108080 NUT,WASHER 8MM
