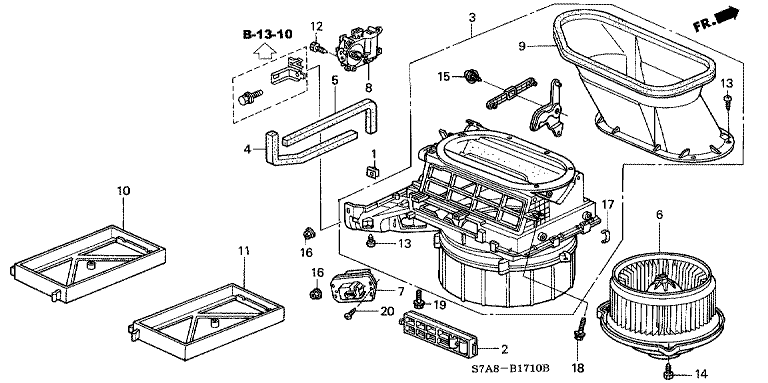

BLOWER ASSY

【1】79191SZ3A01 NUT,HOLDER

【2】79303S5A003 LID BLOWER

【4】79308S5A003 Seal, blower outer (B)

【5】79309S5A003 Seal, blower, outer (A)

【6】79310S7AG12 MOTOR ASSY., FAN

【7】79330S7A941 POWER TRANSISTOR

【8】79350S5AA01 MOTOR ASSY,F/R

【8】79350S5DA01 MOTOR ASSY,F/R

【10】80291S5AJ01 Plate assy., blower (A)

【11】80296S5AJ01 Plate assy., blower (B)

【13】90127SX0003 Screw, tapping, 4X16

【14】90132SR3003 Screw, tapping 5X16

【15】90133SR3003 Screw, wash 4X16

【16】90321SV4003 Nut-washer, 6mm

【18】934040601608 BOLT-WASH,6X16

【19】934050602008 Bolt, wash.6x20
