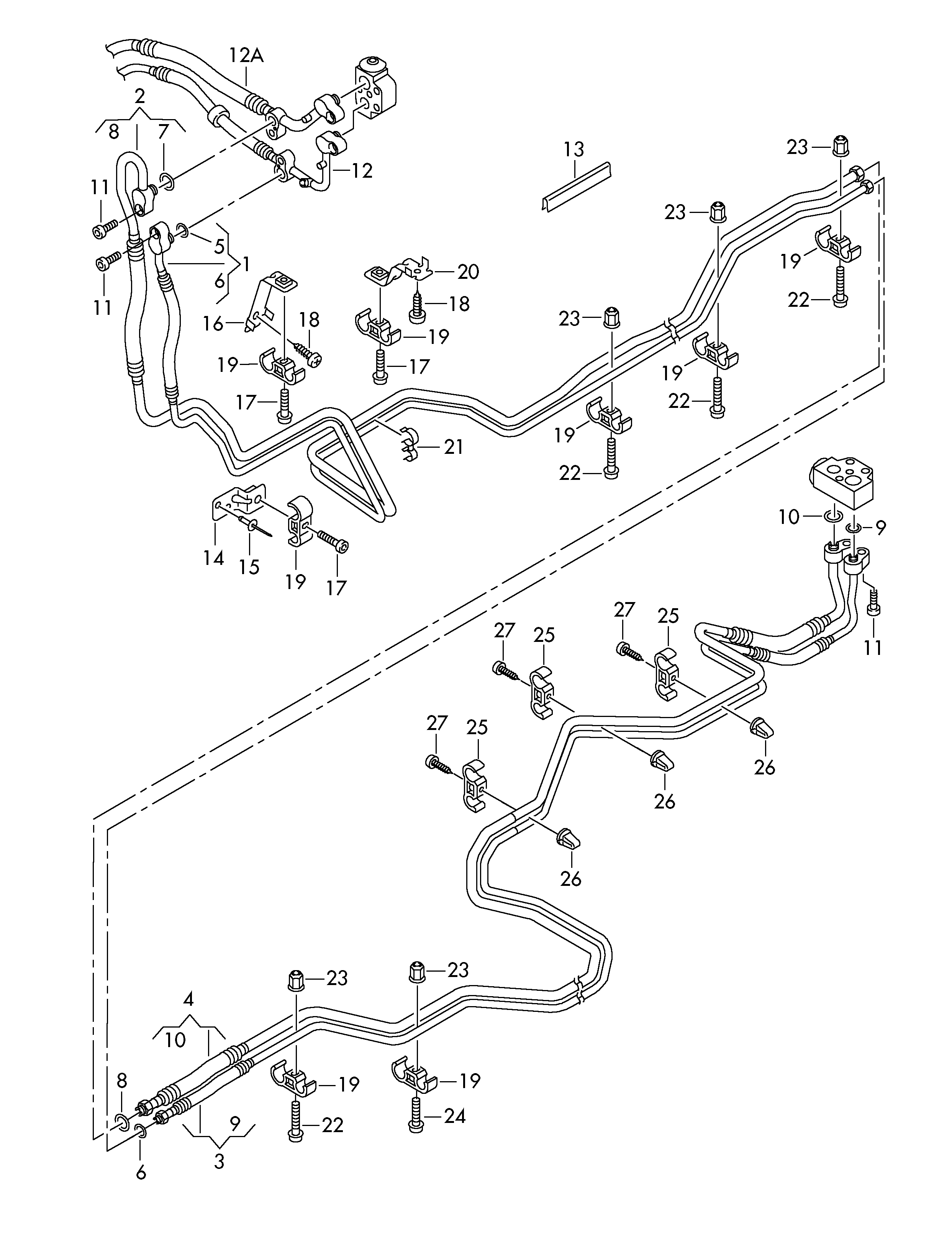

Pipe-refrigerant

【9】3D0260749C Seal ring

【7】4E0260749A SEALING RING

【10】4E0260749B SEALING RING

【13】701947149A Pipe fitting

【25】7E0820255 1K0253141E

【19】7E0820775 1K0253141E

【2】7E1820886 Pipe-refrigerant

【3】7E1820887A Pipe, refrigerant:

【6】7H0820896 SEAL

【8】8E0260749D SEAL

【22】N10247504 Halcyl assy Bolt, cylinder

【21】N10262701 Clip-double

【24】N10300805 Halcyl assy Bolt, cylinder

【11】N10414402 Bolt, hexagon

【17】N10432603 SCREW

【27】N10657001 SCREW

【23】N90252104 NUT

【26】N90833801 NUT

【18】N91035002 S/bolt, hexagon
