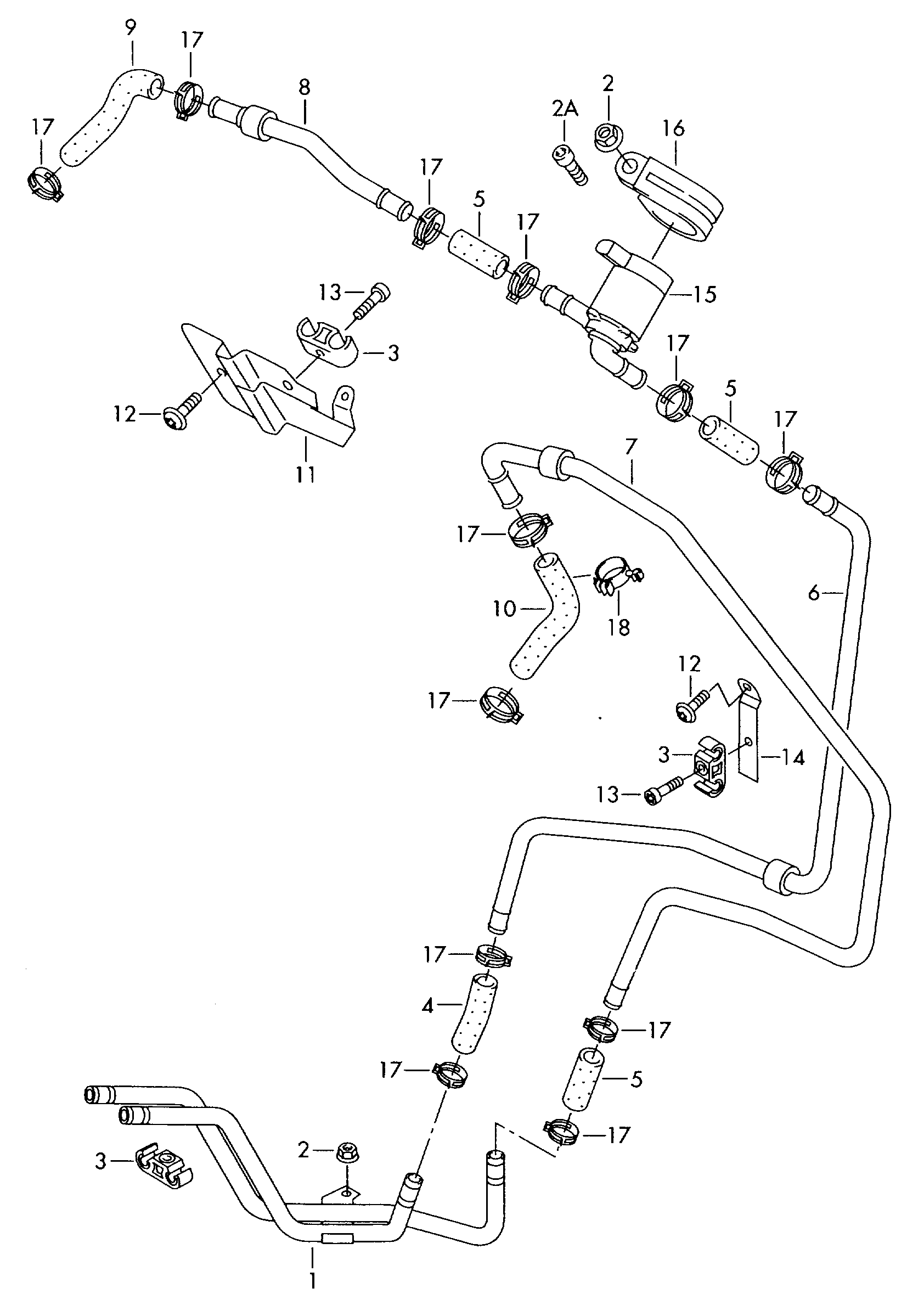

Coolant pipe

【4】7L0815371B Coolant hose

【1】7L0815802A Coolant pipe

【9】7L0815983B Coolant hose connecting pipe:

【10】7L0815984C Coolant hose:

【5】7L0815985 Coolant hose

【3】7L0819055B CLIP

【8】7L0819858G Coolant pipe

【6】7L0819925S Coolant pipe

【7】7L0819926S Coolant pipe F 7L-4-060 001 *

【15】7L0965561D Water pump F 7L-5-050 000 *

【15】7L0965561E Water pump F 7L-5-050 001

【12】N10347003 BOLT

【18】N10422701 Bracket, vacuum hose

【13】N10456201 BOLT

【2】N90175203 Nut, hexagon

【17】N90687001 Clip-band

【16】N90942301 CLIP
