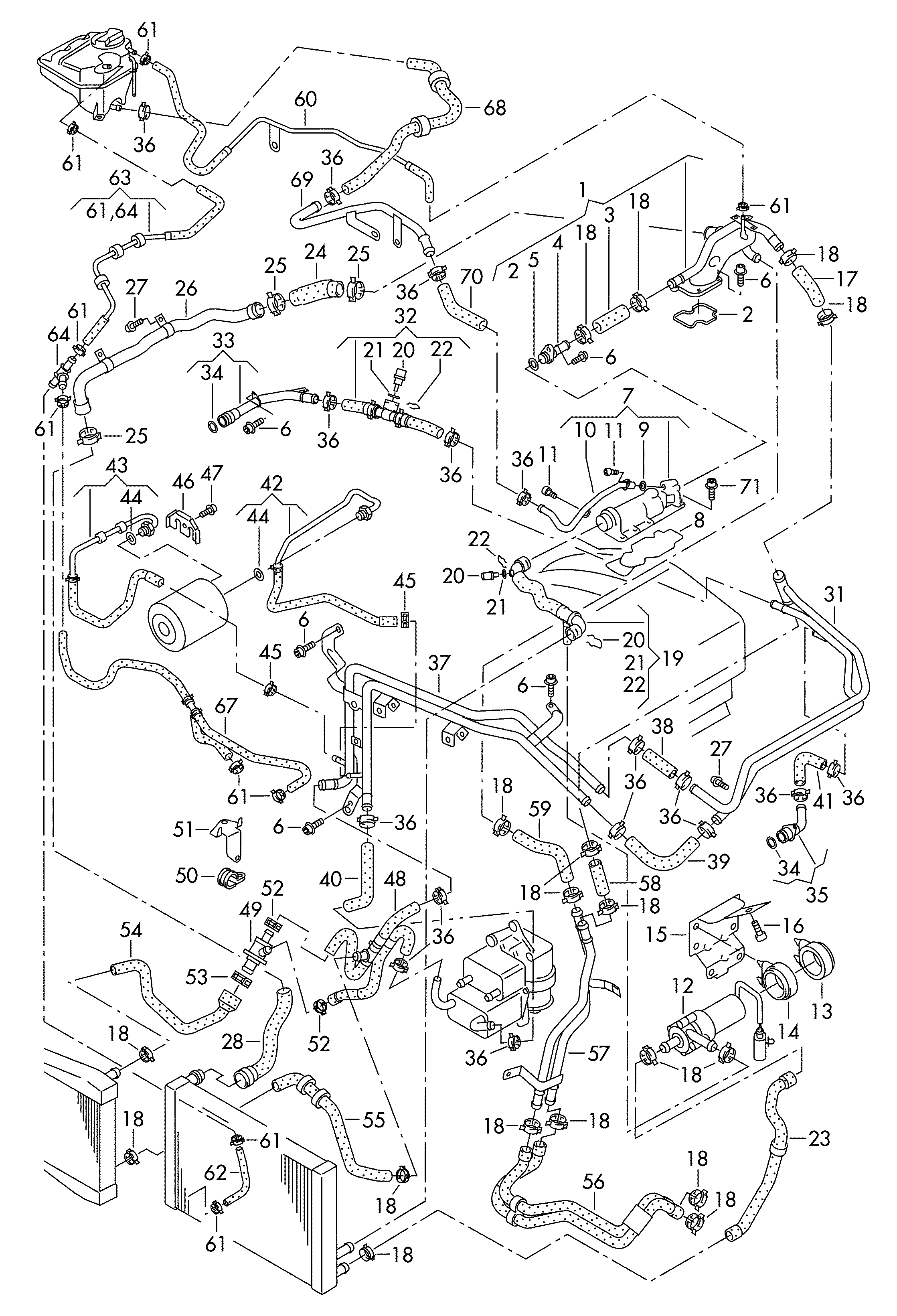

Coolant hose

【22】032121142 Spring, detent

【13】035959209F DISTANCE RUBBERH5110D

【20】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【32】07C121030B Coolant hose

【3】07C121060 Coolant hose

【4】07C121485A Water connection

【8】07D121091E SEALING GASKET

【7】07D121111AP Housing regulator, W/thermostat

【7】07D121111AR Housing/w/thermostat

【2】07D121149B SEALING GASKET

【5】07D121666 O RING

【9】07D121666A O RING

【64】1K0121087B Distributer

【56】7L6122073E Coolant hose See picture board:

【47】N10117405 BOLT

【16】N10226103 BOLT KIT/AUDI-A3/A4/1994-03

【6】N10248003 SCREW

【25】N10518701 CLIP

【21】N90316801 O RING

【71】N90500605 SCREW

【34】N90561901 O RING

【61】N90686701 Clip-band

【36】N90686902 Clip-band

【18】N90687001 Clip-band

【52】N90687101 Clip-band

【53】N90687201 Clip-band

【45】N90770201 Clip-band

【44】N90783401 O RING
