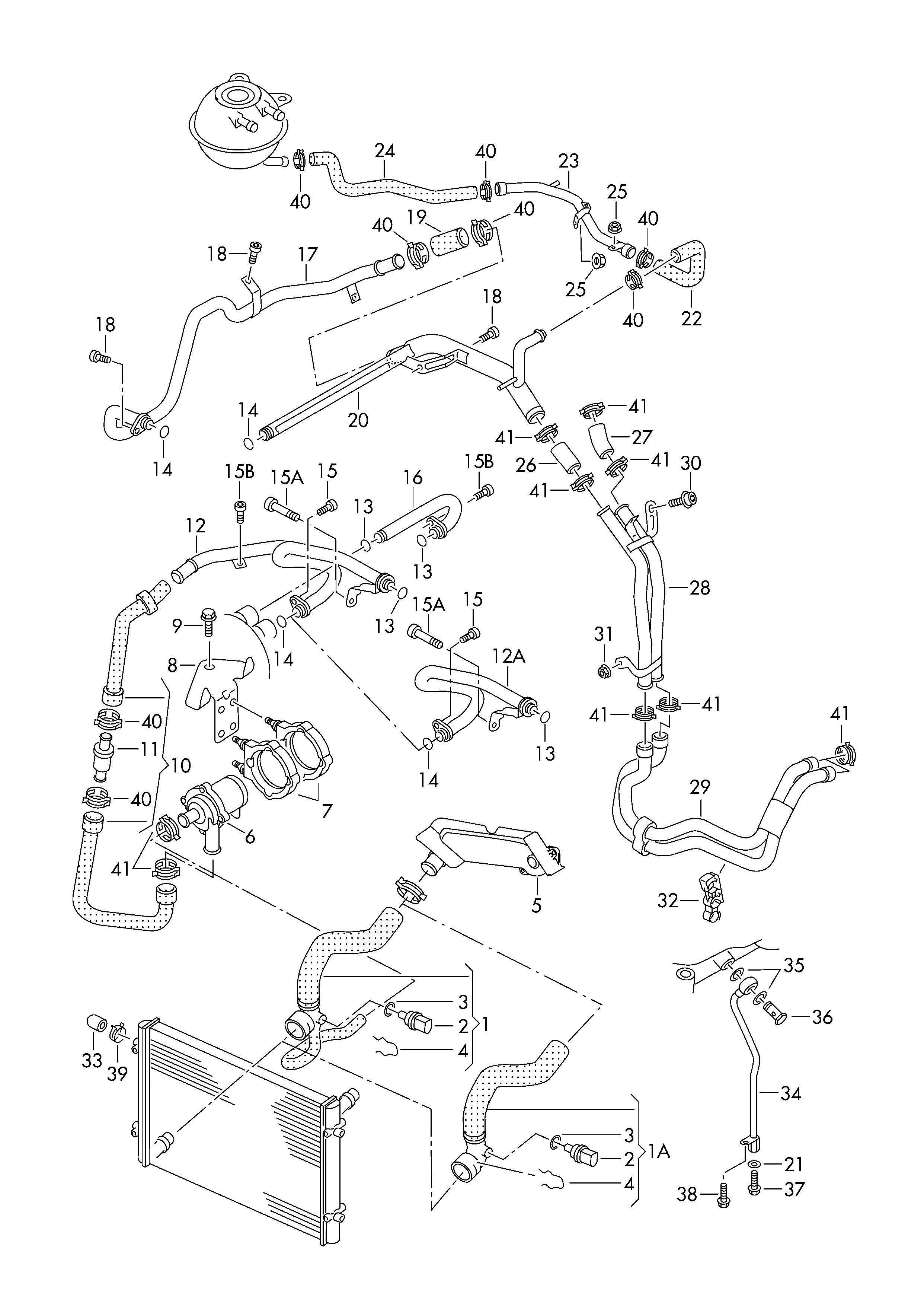

WATER HOSE

【4】032121142 Spring, detent

【7】066959209 Mounting, rubber w/stopper

【2】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【16】077117412J Coolant pipe\\nFor alternator:

【19】077121109A Coolant hose

【12】077121131E Connector\\nF >> 7L-4-008 000 *

【12A】077121131F CONNECTOR BMW B48, G30, F30

【13】077121437 SEAL

【34】077121481B HOSE-DRAIN

【11】1J0122351 VALVE-NON RETURN

【6】7L0965561 Water pump\\n\\nF >> 7L-4-008 000 *

【28】7L6121065F Coolant pipe\\nSee picture board:

【23】7L6121071B Coolant pipe

【10】7L6121086C Coolant hose\\nF >> 7L-4-008 000 *

【33】7L6121099 SPARE PART

【22】7L6121109F Coolant hose

【24】7L6121109J Coolant hose

【32】7L6121129 BRACKET-ENGINE SUPP*

【1】7L6122051C Water hose\\nCouplpiece\\n\\nF >> 7L-4-008 000 *

【29】7L6122073E Coolant hose\\nSee picture board:

【21】N0138307 SEALING RING

【35】N0138493 SEAL RING

【15B】N01470210 Bolt, hexagon

【9】N01953310 BOLT

【36】N0210747 Bolt, w/hole

【18】N10082912 Bolt, self-lock, hex

【30】N10114802 Bolt (combination), hexagon

【37】N10340702 Six angle combined bolt

【3】N90316801 SEAL

【15A】N90334802 Bolt (combination), hexagon

【39】N90686701 Clip-band

【40】N90686901 Clip-band

【41】N90687001 Clip-band

【38】N90718602 Bolt, hex

【14】N90783401 SEAL
