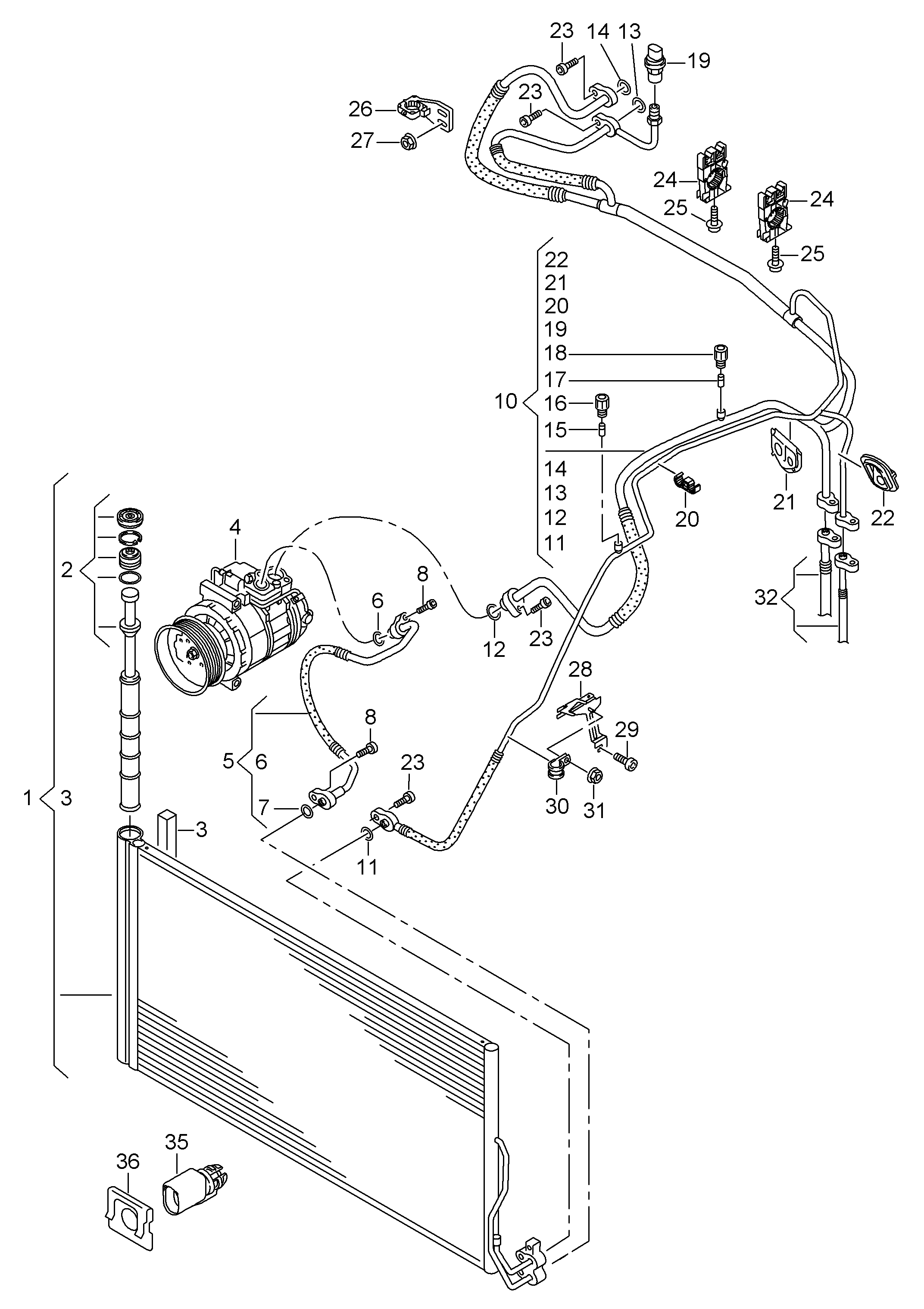

REFREGERANT LINE/TOUREG/Q7

【18】3C0820231 Cap, guard

【16】3C0820581 Cap, guard

【13】3D0260749C Seal ring

【7】4E0260749A SEALING RING

【14】4E0260749B SEALING RING

【19】4H0959126A Sensor assy-pressure

【36】6Q0971845C Bracket\\nSensor, ambient temperature

【1】7P0820411A CONDENSER / VW/PASSAT

【21】7P0820667 GROMMET

【22】7P0820668 GROMMET

【28】7P0820893A Bracket, water pipe

【2】7P0898191 A/C DRYER/W204

【12】8E0260749C SEALING RING

【20】8E0260759AD Bracket, for refrigerant hose

【17】8E0820855 Valve core

【35】8Z0820535 Sensor, ambient temperature

【31】N01508210 Nut, hexagon

【30】N0206015 CLIP

【23】N10414402 Bolt, hexagon

【27】N90455301 Nut, hexagon

【29】N91096701 Bolt, hexagon

【25】N91123501 BOLT
