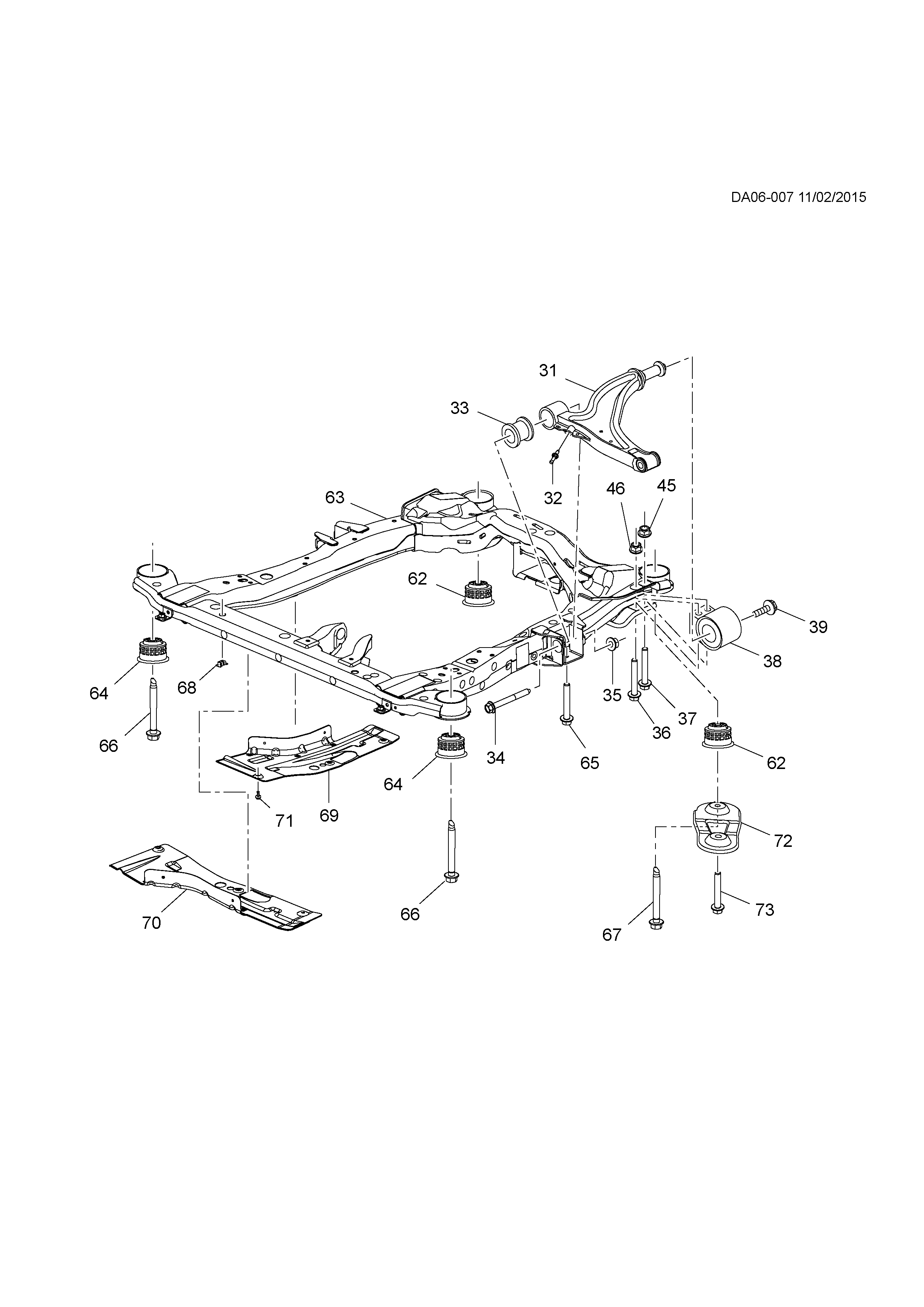

Bush, lower control arm

【073】11515767 Bolt, rr. a/c compressor carrier (M10X1.5X35.8 mm) (0.004)

【068】11548673 Radiator air lwr

【071】11570498 BOLT, HX HD W/FLAT

【071】11570499 Bolt (M4.2X1.41X25.8MM), (long 29) (2)

【067】11570926 Bolt, transaxle (front) (M14X2X123.76 mm)

【067】11570927 Bolt, drive and front suspension bracket rear (torque: service: replace bolt if loose) (without flat

【073】11588740 Bolt (M10X1.5X40.65MM), (for drive motor battery assy) (2.042)

【073】11588741 BOLT/SCREW-TURBO BR-BLS-0

【037】11589279 Bolt, M12X1.75X80 (5.383)

【032】11589406 Pin, electronic suspension front position sensor rod joint

【046】11609282 Nut, strg tie rod (M12X1.75 mm) (* package 1) (7.240)

【039】11610941 Bolt, lower control arm bush (part 42) (M10X1.5X32 mm)

【068】11611806 Air base, outer rear

【034】11611833 Bolt (m12x1.75x6.174), rr.

【072】13235087 Strut assy-t/m & fr sub

【072】13235088 Strut assy-t/m & fr sub

【064】22926964 Support-power train & front suspension frame

【062】22926965 Support-power train & front suspension frame

【063】22989223 Strut mounting

【069】22998751 Shield assy-fr d

【070】22998752 Guard, front compartment air

【031】84008848 Arm, lower control (incl 33,38)

【031】84008849 Arm, lower control (incl 7, 39) (r)

【064】84100302 Transmi rsvr

【071】94520668 Bolt (8.160), fuel tank filler pipe
