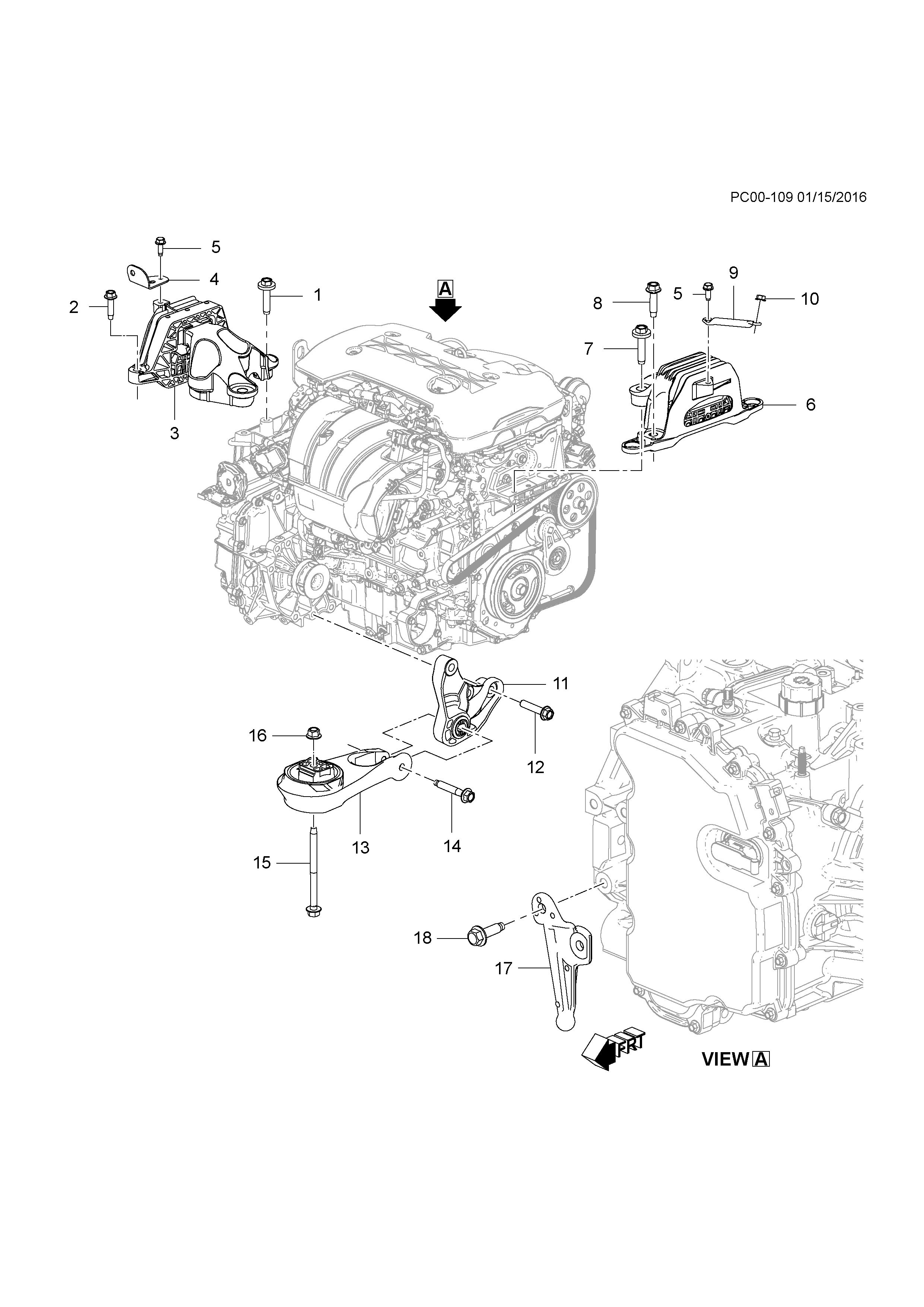

TRANSMISSION MOUNTING

【018】11515767 Bolt, rr. a/c compressor carrier (M10X1.5X35.8 mm) (0.004)

【010】11546365 Nut supercharger

【016】11546367 Nut (M12X1.75 mm) (lock nut) (6 )

【010】11546377 Nut a/c condenser hose (M8X1.25X8 mm) (without washer)

【015】11547261 Bolt, transmission mounting pillar

【007】11547918 Engine mount bolt (service: bolt replacement if loose) (M12X1.75X61 mm) (4.085)

【005】11588723 Bolt (M8X1.25X25) (without washer) (6 )

【008】11589275 Bolt (M12X1.75X5.08 mm) (up) (front side direction) (2 )

【014】11589278 T/m mtg mtg M12X1.75X75.90 (3.265)

【012】11611642 Bolt (M12X1.75X58.5) (4.081)

【009】23182727 Stay, fr. engine mounting

【004】23423028 Arm, transmission mounting

【017】23444793 Brkt, trns

【011】84027271 Bracket, transmission mounting pillar

【006】84034314 Engine mounting

【013】84710772 Transmission mounting strut
