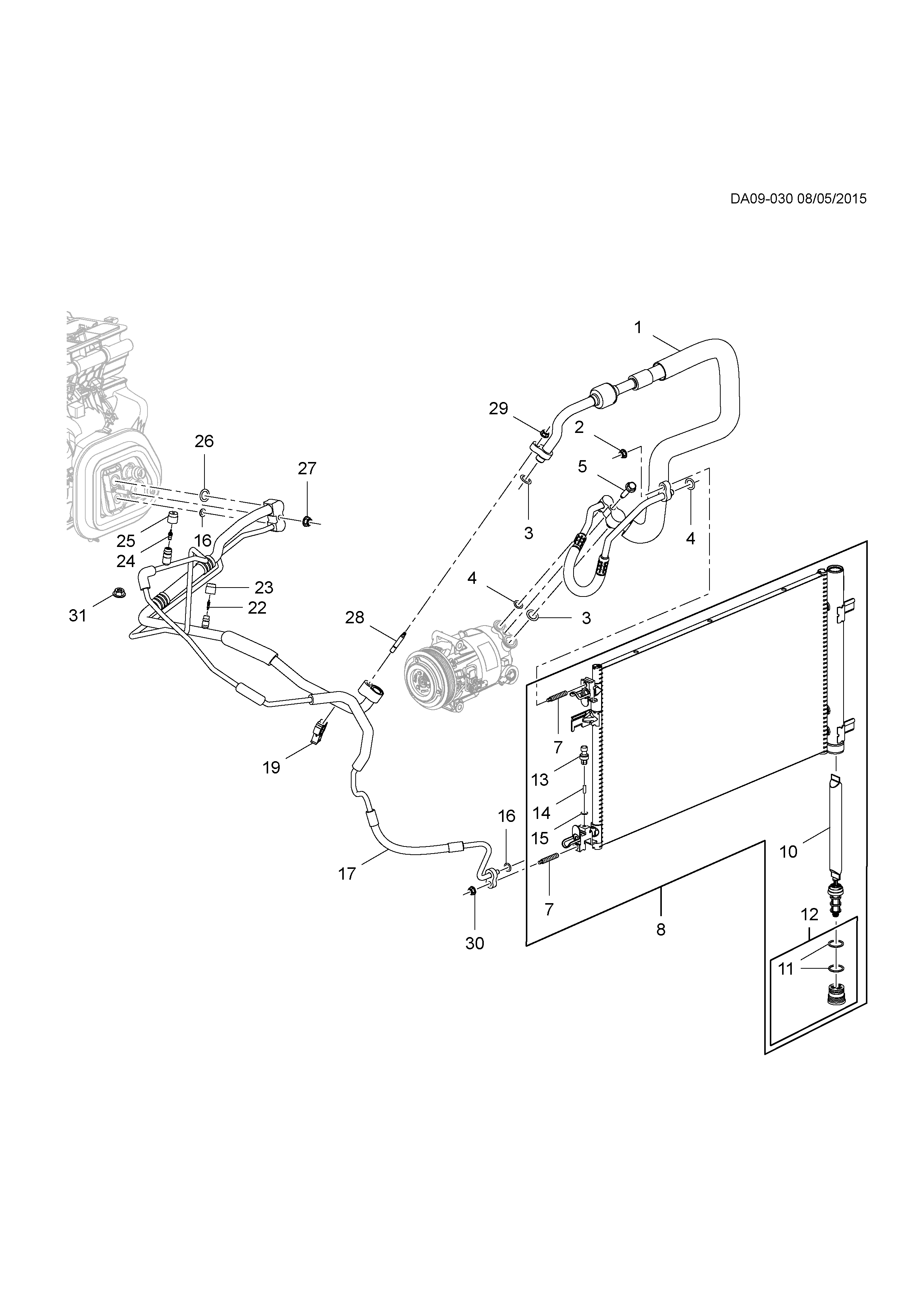

Valve cap (17 parts), air conditioner refrigerant low pressure service

【031】11516075 Nut (M6X1X7 mm) (hexagon flange lock) (3.342 in diameter)

【005】11516339 Bolt, a/c compressor & condenser hose (hexagon fr, w/reduce shank, M8X1.25X40, threaded 22, o/d 18,

【030】11546377 Nut a/c condenser hose (M8X1.25X8 mm) (without washer)

【031】11546389 Nut, battery carrier (M6X1 mm) (6.602)

【005】11610074 Bolt water pump housing

【031】11900428 Nut (dia. 5mm) (3.403)

【004】13263310 Seal, air conditioner compressor hose (parts of 31) (1/2 ) (9.214)

【019】13268583 Clip a/c evaporator hose

【007】13281765 Bolt a/c condenser stud

【013】13587668 SENSOR A/C REFRIG PRESS

【024】20827048 Valve, a/c refrigerant high pressure service

【025】20827050 Valve cap (2 parts), a/c refrigerant high service

【008】23305638 CONDENSER/718 BOXTER

【001】23451303 Hose, a/c compressor (incl. 3-4)

【016】24436644 Seal, a/c evaporator inlet tube (outer diameter = 9.190, inner diameter = 8) (* p

【026】24436645 Packing, a/c evaporator outlet tube (17MM id-25.2MM od) (* package 1)

【025】24436647 Valve cap (27 parts)

【024】24436648 Valve, a/c refrigerant low service (27 parts) (front) (9.172)

【028】24460770 Bolt (15 parts)

【012】39139917 Stopper assy., a/c

【001】84079050 Hose, a/c compressor (incl 3-4) R-134A & 1234YF

【030】9004536 Nut, intake manifold (8mm diameter) (9.242)

【016】9006916 Seal, air conditioner evaporator tube (9 parts) (4.128)

【022】9033462 Valve insert

【015】90381761 Seal, a/c compressor refrigerant pressure switch (o-ring) (15 parts)

【026】93733125 Seal, ac compressor & condenser hose (19 parts) (3 4)
