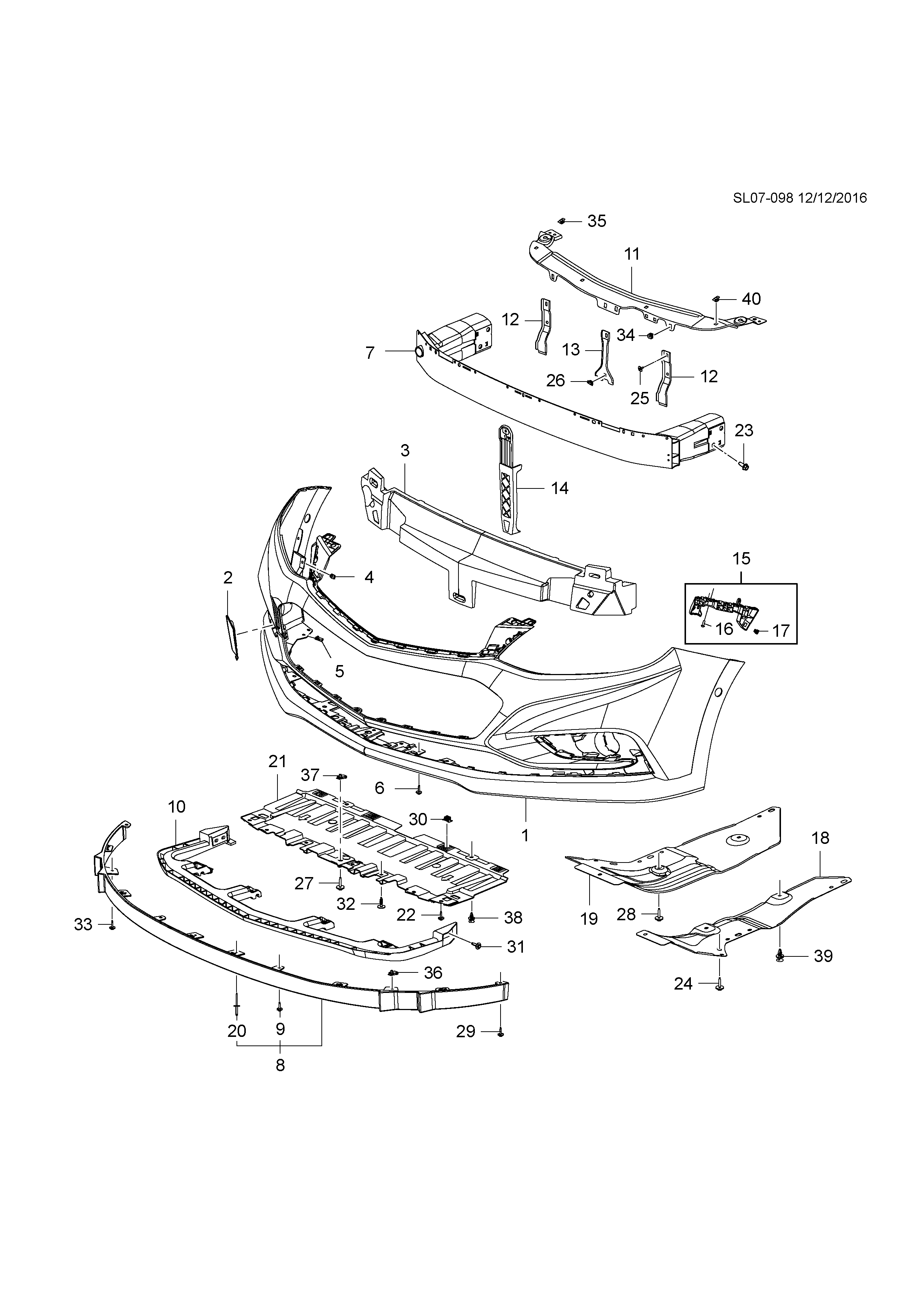

Rivet set, fr bpr

【005】11515638 NUT, U-TYPE (M4.2X1.41X10.5)

【020】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【033】11547421 Bolt (non-tapping bolt) (1.272)

【004】11548579 Nut, exhaust tail pipe insulator (1.269)

【037】11548580 Bolt, front wheel house patch (nut, U-shaped spring, M4.2X1.41, 12MM wide X 22MM long)

【030】11548673 Radiator air lwr

【025】11561674 Bolt (bolt), brake pedal (washer radius is 11.77) (7.874)

【017】11569960 RIVET, RR BPR BAR

【035】11570015 Deck tray rr otr

【006】11570498 BOLT, HX HD W/FLAT

【009】11570499 Bolt (M4.2X1.41X25.8MM), (long 29) (2)

【039】11571109 Pin (2 pieces, pull length 33.58 maximum) (12.944)

【023】11589271 Bolt (M12X1.75X30.8MM), eng module

【031】11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT.(R/D HGE)

【016】11611124 Bolt (torque: D1.5/-0.5NM S1NMMIN FDSNS) (part of 1) (11.610)

【040】11611523 Nut (U) (push) (insert 8.75 hole) (nut) (9.675)

【032】20931378 Bolt (5X20), (TORX T20), (7.874)

【012】23220929 Stay (stay only), front bumper rivet

【021】23408808 Extension (part), front bumper

【013】23422562 Stay fr bumper

【010】23422672 Reinforcement, front bumper skin, lower

【018】39079220 Air, front compartment

【019】39079221 Shield assy-fr d

【007】39103778 GUARD FR BUMPER

【014】84009125 Stay fr bumper

【015】84020169 Rivet, fr bpr bar

【015】84020171 Rivet, fr bpr bar

【002】84051802 Cover, fr. bumper eye

【003】84060058 Cowl top fr bpr

【008】84063768 RIVET, RR BPR FASCIA

【011】84293153 Brace, r. fr. upper
