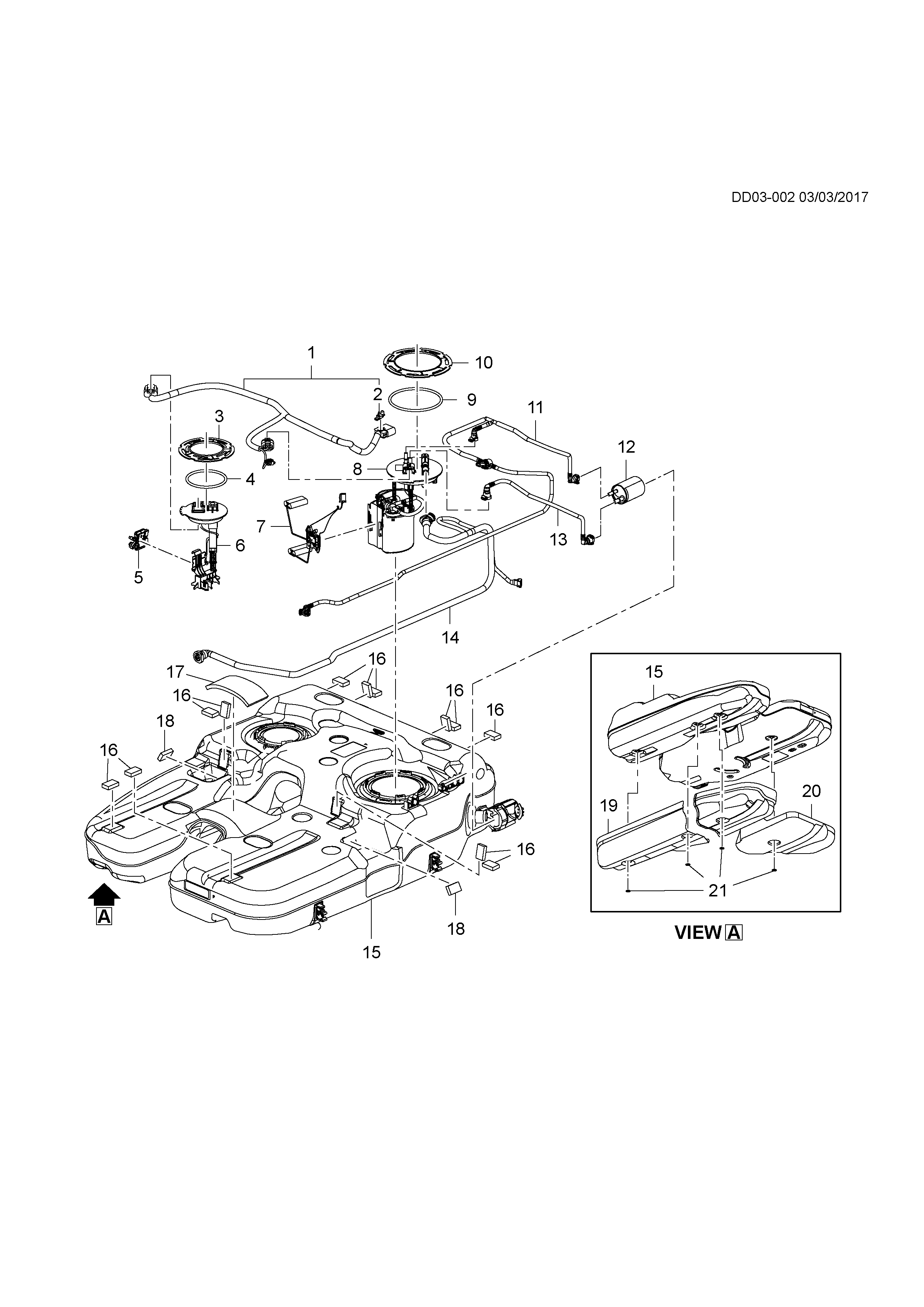

Wire, fuel pump module (for rear 20180122) (including 2) (3.163)

【021】10009923 Nut, spring-bolt, M8X1.25, o/d 25, ZOR

【010】10325852 Ring, fuel sender snap (130 opening, flat ring) (3.115) (AC-DELCO# TR26)

【003】15776431 Ring, f/sender mtg 116

【004】15776433 Grommet, fuel transmitter (1mm) (transmitter service kit position) (* service kit 1)

【002】19257421 Snap (part), f/tank f/pump module wire harness

【012】22821145 Fuel filter

【019】23340384 Protector, fuel tank (side)

【013】23340389 Hose, fuel pump return

【015】84042372 Tank, fuel (for front unit use) (for front unit design, see 20170424

【020】84042379 Protector, fuel tank

【014】84074980 Hose, emission canister vent

【015】84152988 Tank, fuel (incl. 16-18)

【011】84442456 Hose, fuel pump feed

【009】84666908 Seal (O-ring) (* package 2, package 3) (3.112)
