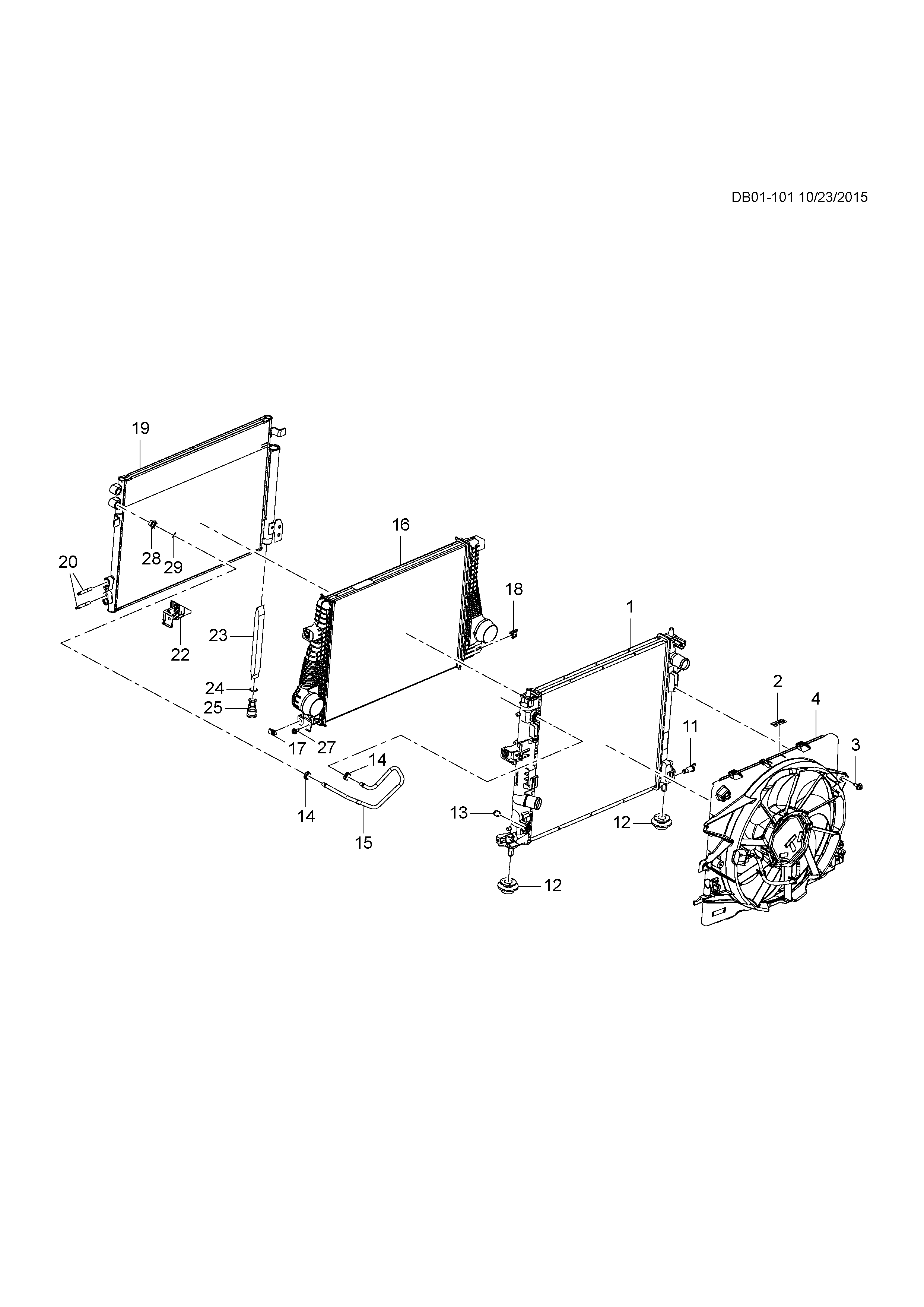

Radiator (27MM GSR with tank cooler & no sensor) (including 11-13)

【017】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【027】11516589 Bolt, hex. headpin with conical spring washer, M6X1X30, 29 threaded, outer diameter 17,9.8,7114 M, Z

【027】11519383 Bolt, a/c evaporator tube (M6X1.0X23MM) (washer diameter 16.8) (8.900)

【018】11546395 Nut, radiator (RPR) (20MM lh for ECF) (part of 1) (M6X20X26MM) (3.373)

【014】15052228 Oil cooler tube connector cap

【020】22868960 Bolt, a/c condenser stud (1 parts) (M8X1.25X37/M8X1.25X19) (1.240)

【001】22966124 Radiator, (incl 2-5) (AC-DELCO #21820)

【012】22966133 Spacer, radiator

【019】22966151 Condenser, air conditioner (incl 23-28) (w/t cooler) (AC-DELCO #15-63772)

【015】22966158 Tube, oil cooler (incl 3)

【019】23452331 Condenser, air conditioner (including 23-28) (AC-DELCO #15-63814)

【015】23465081 Tube, oil cooler (incl 7) (multicooler inlet tube) (AC-DELCO #23465081)

【016】84356897 Radiator, w/c cooler (incl. 17,18)

【002】94568902 LABEL
