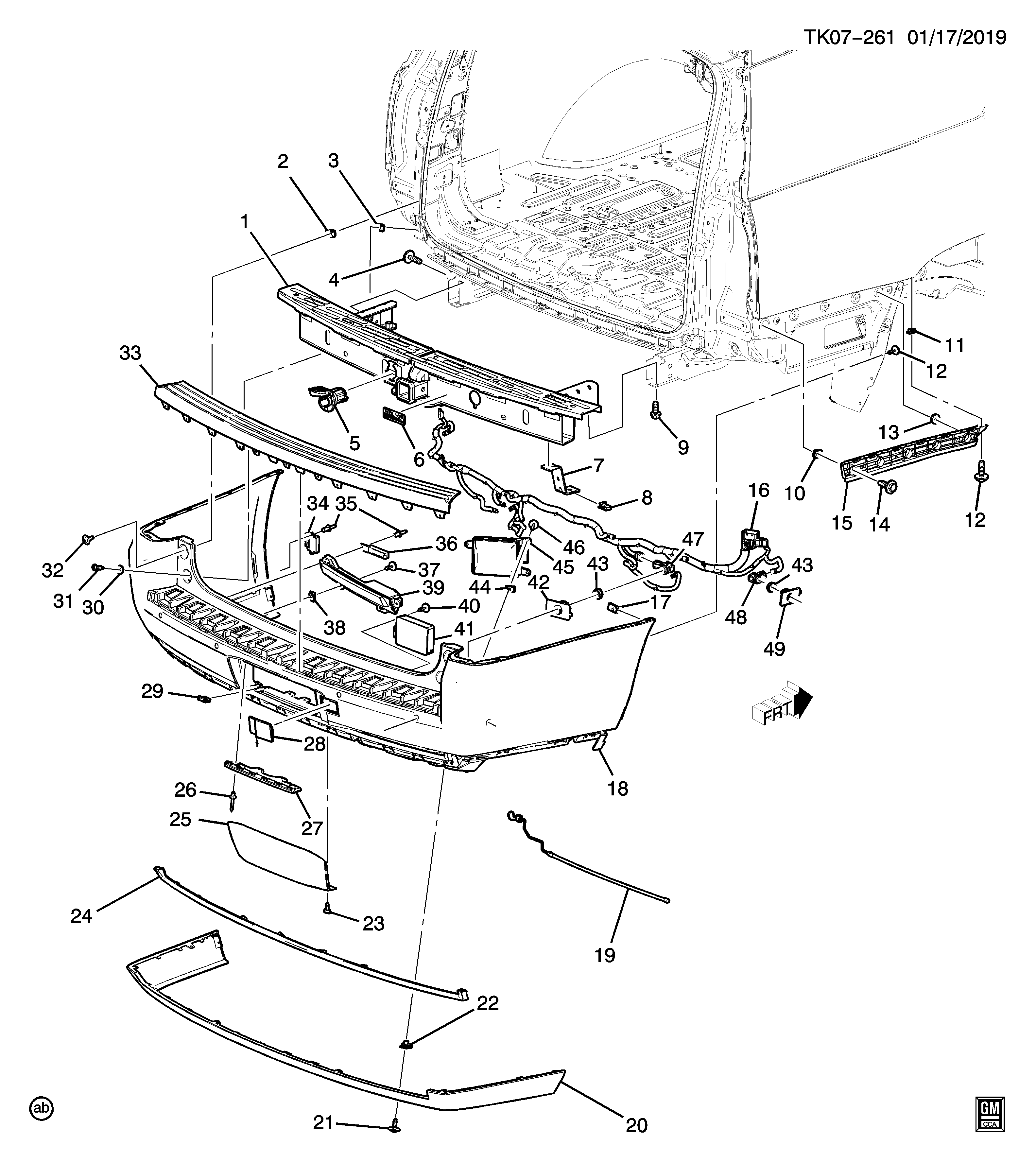

COVER,RR BPR FASCIA TRLR HITCH ACC HOLE(PAINT TO MATCH)

【8】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【17】11515638 NUT, U-TYPE (M4.2X1.41X10.5)

【26】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【4】11519393 BOLT,HEX W/CON SPRING WA,M12X1.75X50,35 OD, 42 THD,10.9,7114M(RR BPR IMP BAR)

【21】11548270 Bolt, rear wheel house patch (with a washer of 19.78 diameter)

【22】11548579 Nut, exhaust tail pipe insulator (1.269)

【32】11570637 BOLT

【46】11589015 BOLT,HWH W/FL WA M4.2X1.41X20,12.5 O.D.,DOG PT,6010M,7253M(STRG COL WRG HARN CON

【37】11609489 Bolt (with a diameter of 16.6 washer) (tapping screw) (8.977)

【10】11610510 Nut, push, M4.2X1.41, 0.7-2.15 thick, SAE 1050-65, GMW3359 with black seal

【31】11610584 Bolt, tailgate crash (D2.5/-0.5NM S1NMMIN FDSNS)

【5】12191503 RECEPTACLE,TOW VEH ELEC(PART OF 3)(W/DOOR)(MATES W/15306164)

【36】13580790 Antenna, low frequency rear bumper

【30】15265199 Bumper-lift dr

【15】22806431 GUIDE,RR BPR FASCIA(INCLS 11,13)

【15】22806432 GUIDE,RR BPR FASCIA(INCLS 11,13)

【27】22960925 BRACKET,RR BPR FASCIA TRLR HITCH ACC HOLE CVR

【33】22960927 PAD,RR BPR FASCIA STEP

【24】23224609 MOLDING,RR BPR FASCIA

【48】23428268 SENSOR,ADVANCED PARK ASST ALARM(KIT FOR FRT OR RR BUMPER)(INCLS 9)(W/PARK ASST A

【48】23428269 SENSOR,ADVANCED PARK ASST ALARM(INCLS 9)(KIT FOR SIDE PARK ASSIST ONLY)(7.831)

【28】23431230 COVER,RR BPR FASCIA ACC HOLE(PAINT TO MATCH)

【45】42625292 MODULE,SI OBJECT SENSING ALERT

【45】42625293 MODULE,SI OBJECT SENSING ALERT

【43】84075328 RING,PARK ASST ALARM SEN

【47】84153946 SENSOR,PARK ASST ALARM(INCLS 9)(PAINT TO MATCH)(FRONT AND/OR REAR)(CONTAINS PARK

【39】84240625 LAMP,RR FOG

【39】84240626 LAMP,RR FOG(PART IS NOT A FOG LAMP-FUNCTIONS AS A REFLECTOR ONLY)

【39】84240627 LAMP,RR FOG(PART IS NOT A FOG LAMP-FUNCTIONS AS A REFLECTOR ONLY)

【18】84399430 FASCIA,RR BPR UPR(INCLS 35,42,49)(PAINT TO MATCH)

【20】84515908 FASCIA,RR BPR LWR
