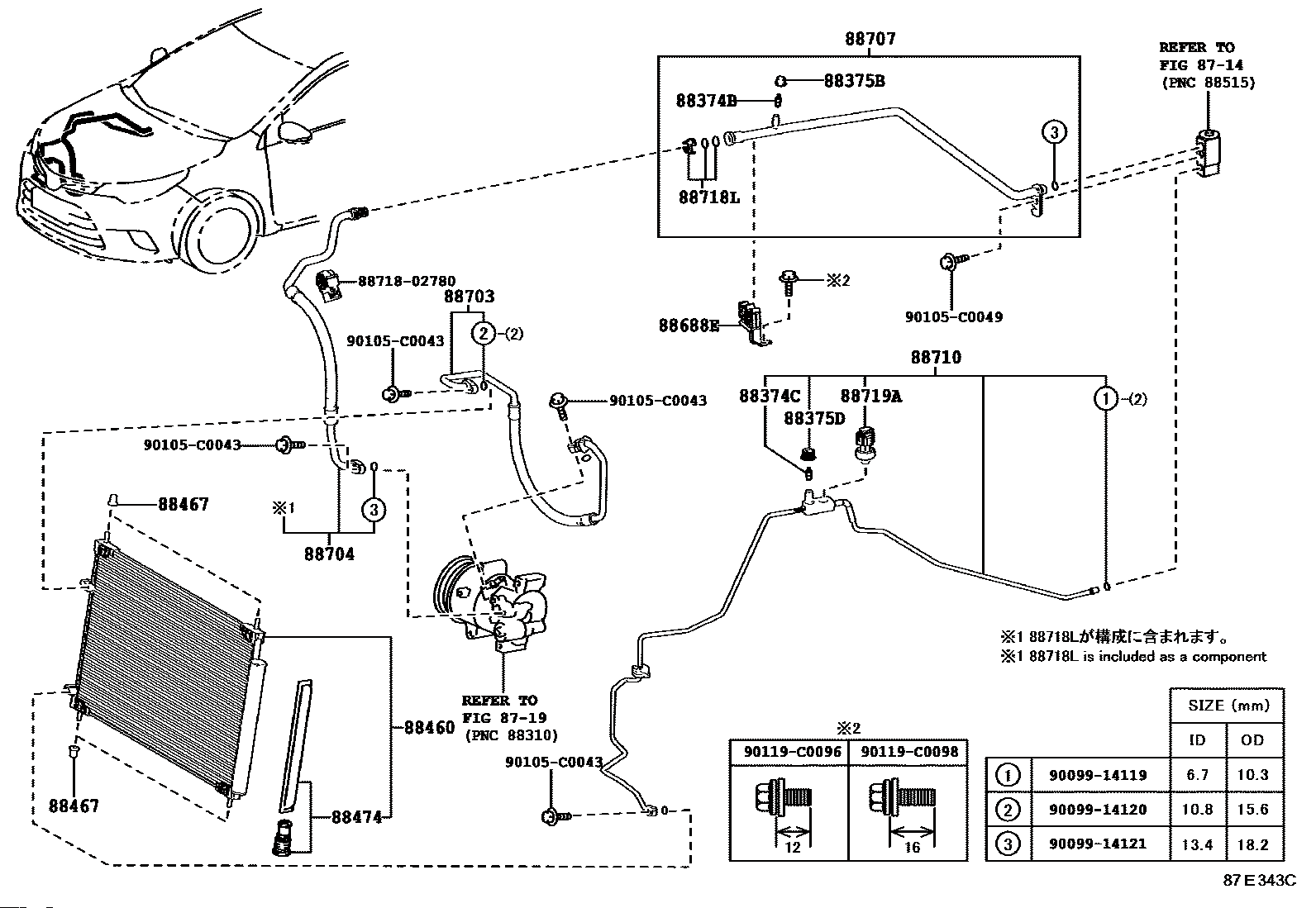

CONDENSER ASSY

【88374C】8837430010 VALVE SERVICE NO.1

【88375D】883750D010 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88460】8845002460 Condenser assy

【88460】8845002550 Condenser assy

【88467】884670F020 COLLAR, CONDENSER BRACKET, NO.1

【88474】8847412010 Dryer, cooler

【88474】8847412020 Dryer, cooler

【88460】884A002270 Condenser assy

【88688E】8868802B40 Bracket, cooler refrigerant hose, no.1

【88688E】8868802B80 Bracket, cooler refrigerant hose, no.1

【88688E】8868802C20 Bracket, cooler refrigerant hose, no.1

【88703】8870302B10 Hose sub-assy, drain

【88703】8870302B30 Hose sub-assy, drain

【88703】8870302C00 Hose sub-assy, drain

【88704】8870402B40 HOSE SUB-ASSY, SUCTION

【88704】8870402B60 HOSE SUB-ASSY, SUCTION

【88704】8870402C40 HOSE SUB-ASSY, SUCTION

【88707】8870702360 PIPE SUB-ASSY, SUCTION

【88707】8870702410 PIPE SUB-ASSY, SUCTION

【88707】8870702430 PIPE SUB-ASSY, SUCTION

【88710】8871002B00 TUBE ASSY, AIRCONDITIONER

【88710】8871002B60 TUBE ASSY, AIRCONDITIONER

【88710】8871002C50 TUBE ASSY, AIRCONDITIONER

【88718L】8871852260 CLAMP, PIPING

【88718L】8871852280 CLAMP, PIPING

【88719A】8871933020 SENSOR AIRCONDITIONER PRESSURE
