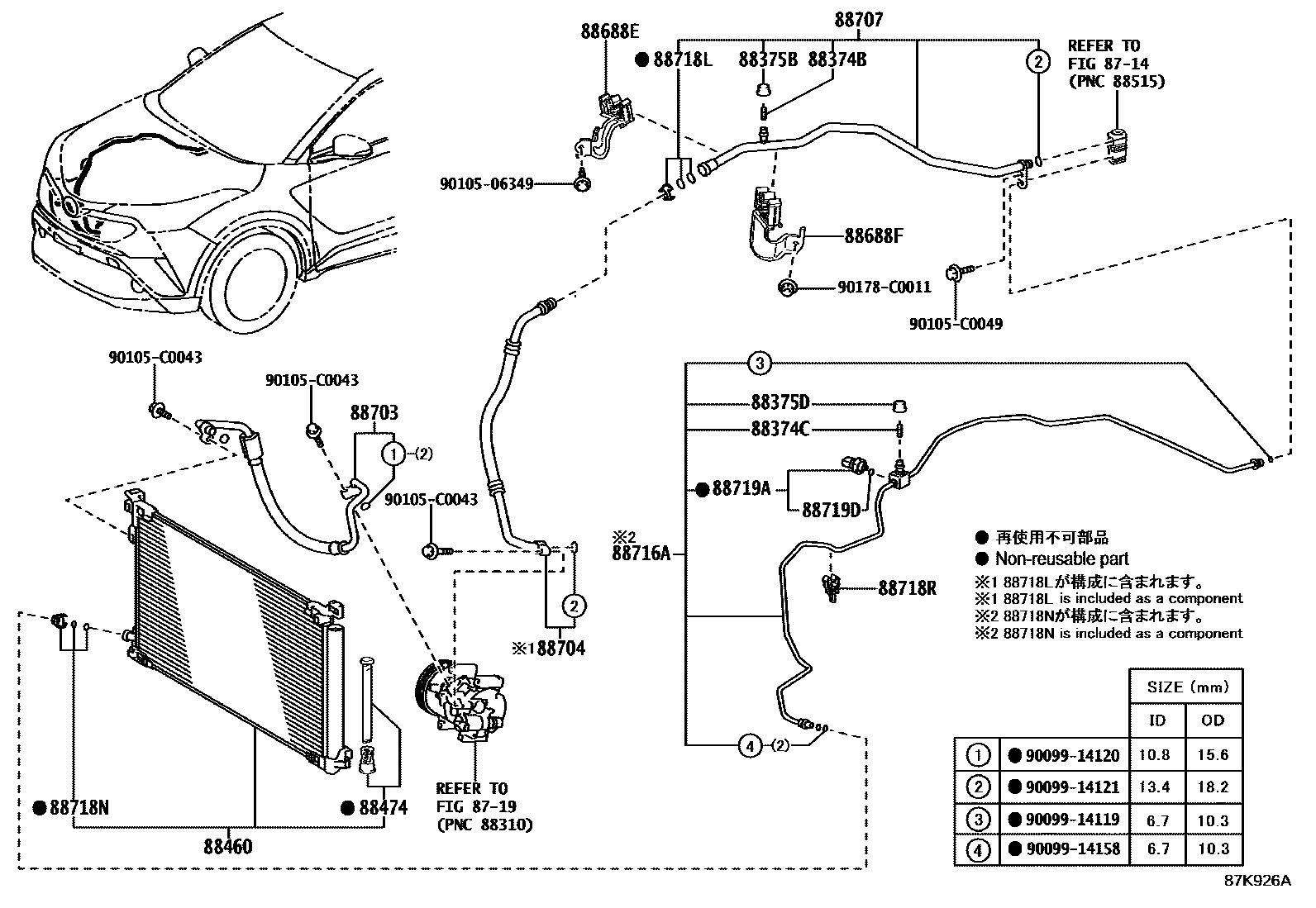

CONDENSER ASSY

【88374C】8837430010 VALVE SERVICE NO.1

【88375D】883750D010 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375D】8837530280 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88474】8847412010 Dryer, cooler

【88474】8847412020 Dryer, cooler

【88460】884A0F4030 CONDENSER ASSY

【88460】884A0F4070 CONDENSER ASSY

【88688E】88688F4120 Bracket, cooler refrigerant hose, no.1

【88688E】88688F4121 Bracket, cooler refrigerant hose, no.1

【88688F】88688F4130 BRACKET, COOLER REFRIGERANT HOSE, NO.2

【88703】88703F4070 HOSE SUB-ASSY

【88704】88704F4070 HOSE SUB-ASSY, SUCTION

【88707】88707F4070 TUBE SUB-ASSY

【88707】88707F4130 PIPE SUB-ASSY, SUCTION

【88716A】88710F4130 PIPE, COOLER REFRIGERANT LIQUID, A

【88716A】88710F4280 PIPE, COOLER REFRIGERANT LIQUID, A

【88718R】8871802A70 CLAMP(FOR COOLER REFRIGERANT HOSE),NO.1

【88718N】887181E150 CLAMP, PIPING

【88718L】8871852280 CLAMP, PIPING

【88719A】8871911010 SENSOR, AIRCONDITIONER PRESSURE

【88719D】9009914122 CLIP
