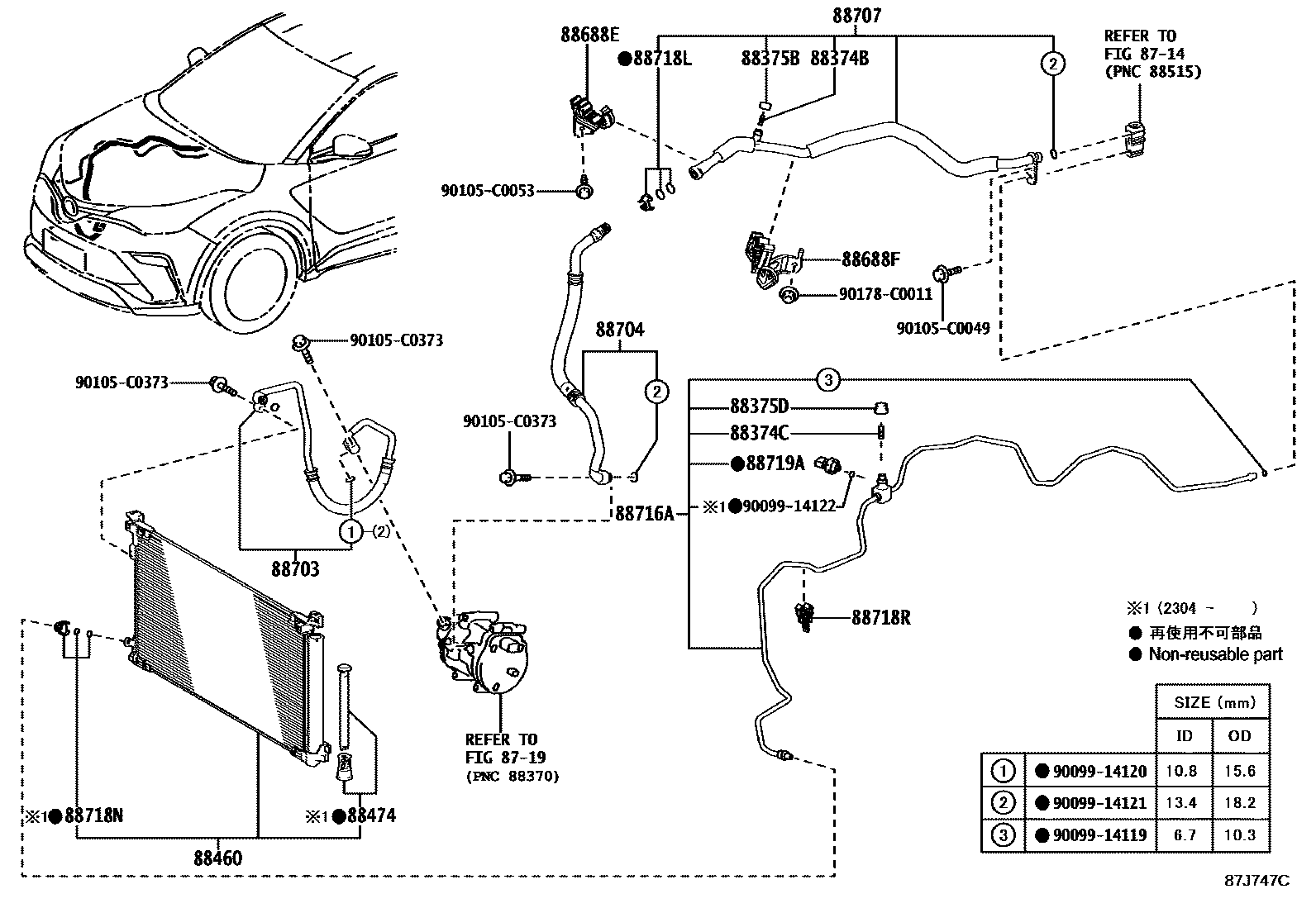

CONDENSER ASSY

【88374C】8837430010 VALVE SERVICE NO.1

【88375D】883750D010 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375D】8837530280 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88474】8847412010 Dryer, cooler

【88474】8847412020 Dryer, cooler

【88460】884A0F4020 Condenser assy

【88460】884A0F4100 CONDENSER ASSY

【88688F】8868802F00 BRACKET, COOLER REFRIGERANT HOSE, NO.2

【88688E】88688F4101 Bracket, cooler refrigerant hose, no.1

【88688F】88688F4110 BRACKET, COOLER REFRIGERANT HOSE, NO.2

【88703】88703F4060 Hose sub-assy, drain

【88704】88704F4060 HOSE SUB-ASSY, SUCTION

【88707】88707F4060 TUBE SUB-ASSY

【88716A】88710F4120 PIPE, COOLER REFRIGERANT LIQUID, A

【88718R】8871802A60 CLAMP, PIPING

【88718N】887181E150 CLAMP, PIPING

【88718L】8871852280 CLAMP, PIPING

【88719A】8871911010 SENSOR AIRCONDITIONER PRESSURE
