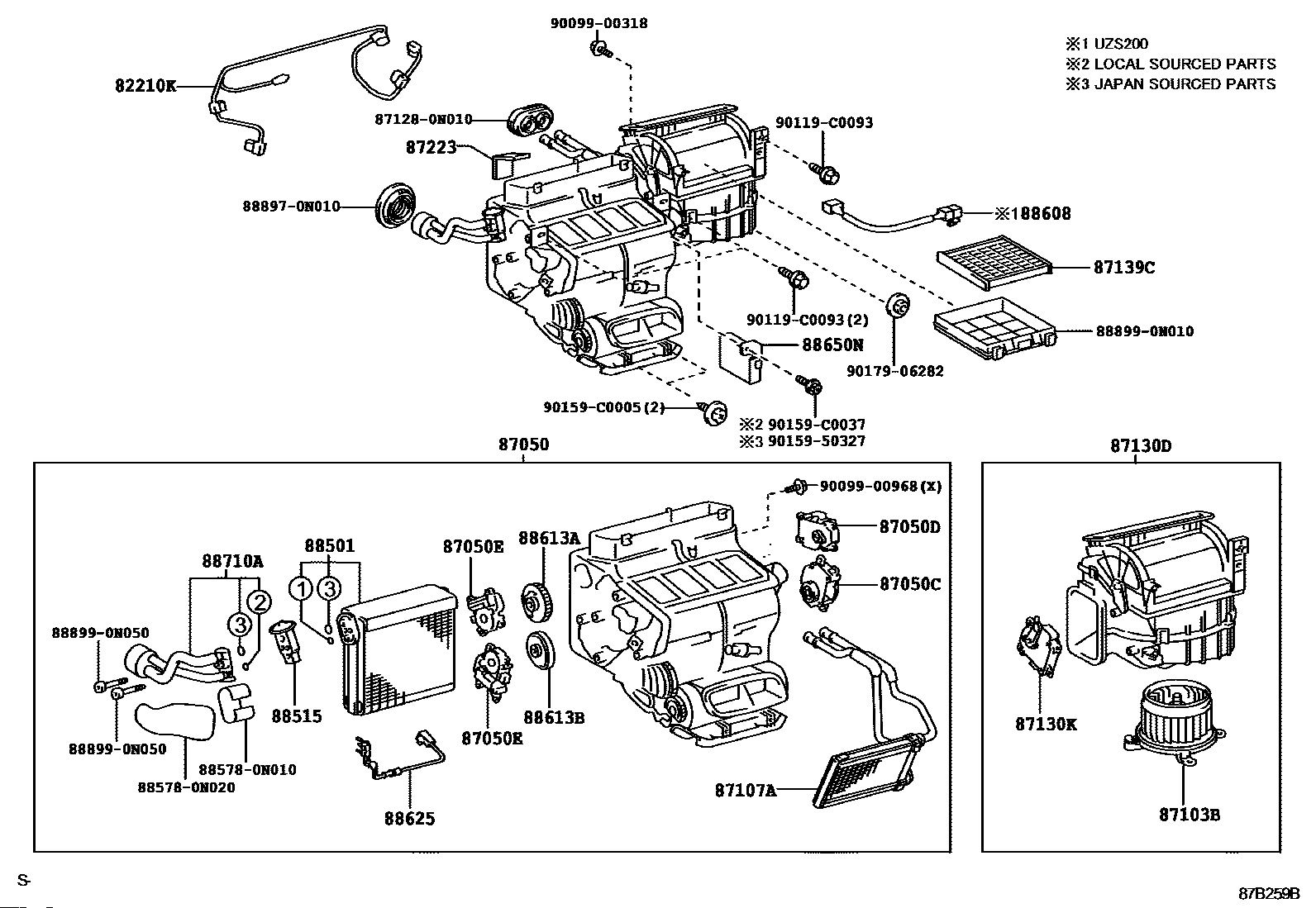

AMPLIFIER ASSY, AIR CONDITIONER

【82210K】822120N030 HARNESS, AIR

【87050】870500N020 RADIATOR ASSY, AIR

【87050】870500N021 RADIATOR ASSY, AIR

【87103B】871030N010 MOTOR SUB-ASSY, COOLING UNIT, W/FAN

【87103B】871030N011 MOTOR SUB-ASSY, BLOWER W/FAN

【87103B】871030N020 MOTOR SUB-ASSY, BLOWER W/FAN

【87050C】871060N010 SERVO SUB-ASSY

【87050D】871060N020 SERVO SUB-ASSY, DAMPER(FOR MODE)

【87130K】871060N030 SERVO SUB-ASSY, DAMPER

【87050E】871060N050 SERVO SUB-ASSY

【87050C】871060N060 SERVO SUB-ASSY

【87050D】871060N070 SERVO SUB-ASSY, DAMPER(FOR MODE)

【87130K】871060N080 DAMPER SERVO SUB-ASSY, BLOWER, NO.1

【87050E】871060N100 SERVO SUB-ASSY

【87107A】871070N010 UNIT SUB-ASSY, HEATER RADIATOR

【87130D】871300N010 BLOWER ASSY

【87130D】871300N020 BLOWER ASSY

【87139C】871390N010 ELEMENT, AIR REFINER

【87139C】871390N030 ELEMENT, AIR REFINER

【87139C】8713950100 Filter, air refiner

【88501】885010N030 EVAPORATOR SUB-ASSY

【88501】885010N031 EVAPORATOR SUB-ASSY

【88515】885150N010 VALVE, COOLER EXPANSION

【88515】885150N030 VALVE, COOLER EXPANSION

【88608】886080N040 HARNESS SUB-ASSY, WIRING AIR CONDITIONER

【88613A】886130N010 Rod, cooler control, no.1

【88613B】886130N020 Rod, cooler control, no.2

【88625】886200N030 THERMISTOR, COOLER, NO.1

【88650N】886500N091 AMPLIFIER ASSY, AIR CONDITIONER

【88650N】886500N101 AMPLIFIER ASSY, AIR CONDITIONER

【88650N】886500N111 AMPLIFIER ASSY, AIR CONDITIONER

【88710A】887100N040 TUBE ASSY, AIRCONDITIONER

【88710A】887100N060 TUBE ASSY, AIRCONDITIONER
