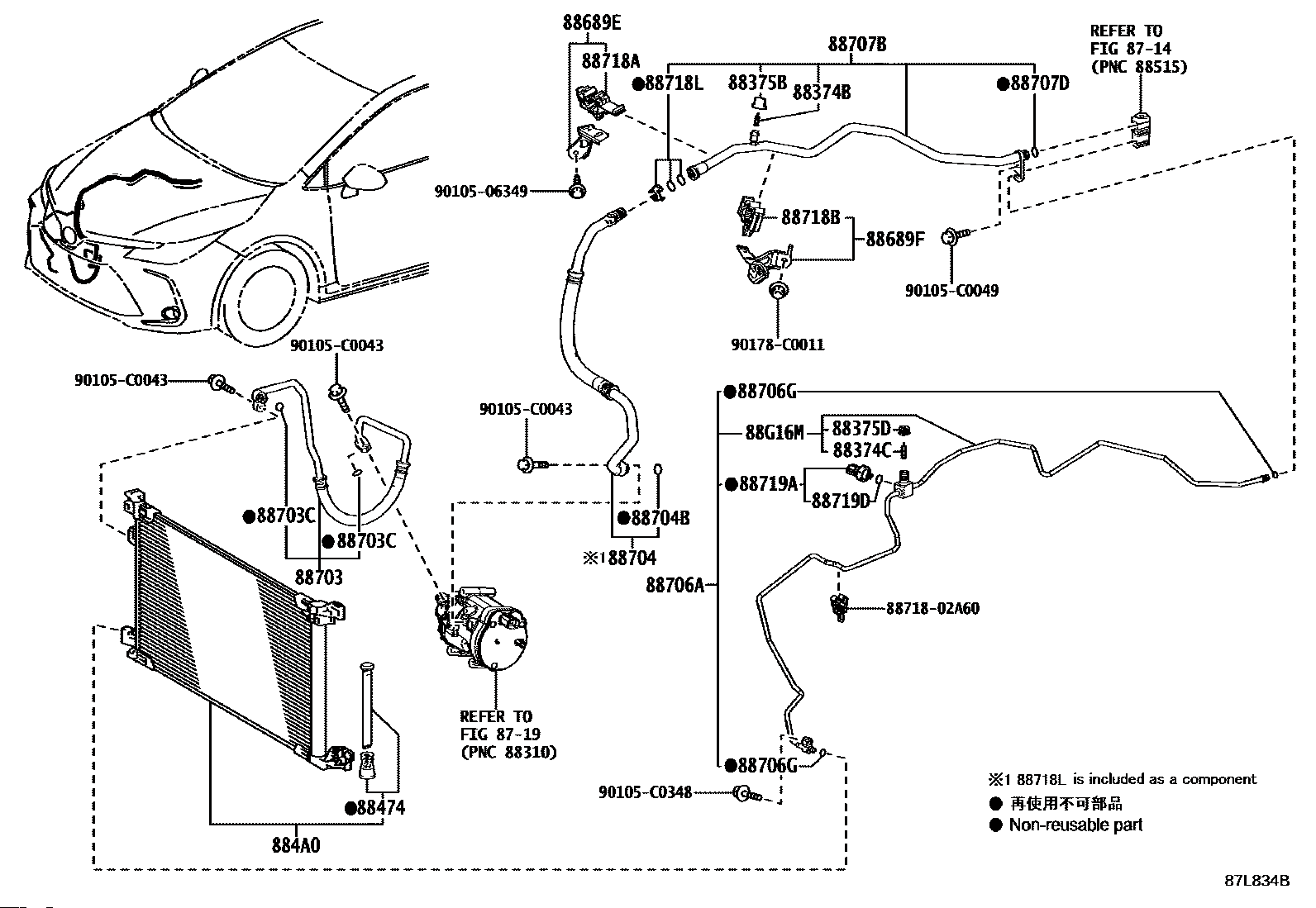

HOSE SUB-ASSY

【88374C】8837430010 VALVE SERVICE NO.1

【88375D】883750D010 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375D】8837530280 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88474】8847412020 Dryer, cooler

【884A0】884A002240 Condenser assy

【884A0】884A002250 Condenser assy

【884A0】884A002280 Condenser assy

【884A0】884A002380 CONDENSER ASSY

【88703】8870302E50 Hose sub-assy, drain

【88703】8870302E60 Hose sub-assy, drain

【88703】8870302E70 Hose sub-assy, drain

【88703】8870302F20 HOSE SUB-ASSY

【88704】8870402E70 HOSE SUB-ASSY, SUCTION

【88704】8870402E80 HOSE SUB-ASSY, SUCTION

【88704】8870402E90 HOSE SUB-ASSY, SUCTION

【88704】8870402F80 HOSE SUB-ASSY SUCTI

【88707B】8870702760 TUBE SUB-ASSY

【88707B】8870702770 TUBE SUB-ASSY

【88707B】88707F4060 TUBE SUB-ASSY

【88706A】8871002C10 Tube sub-assy, liquid A

【88706A】8871002G50 Tube sub-assy, liquid A

【88706A】8871002G60 Tube sub-assy, liquid A

【88706A】8871002J80 TUBE SUB-ASSY

【88G16M】8871602J20 SEAL, ENGINE UNDER

【88G16M】8871602J30 SEAL, ENGINE UNDER

【88718L】8871852280 CLAMP, PIPING

【88719A】8871911010 SENSOR AIRCONDITIONER PRESSURE

【88706G】9009914119 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【88703C】9009914120 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【88707D】9009914121 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【88719D】9009914122 CLAMP OR CLIP(FOR FUEL HOSE NO.1)
