HOSE SUB-ASSY SUCTI

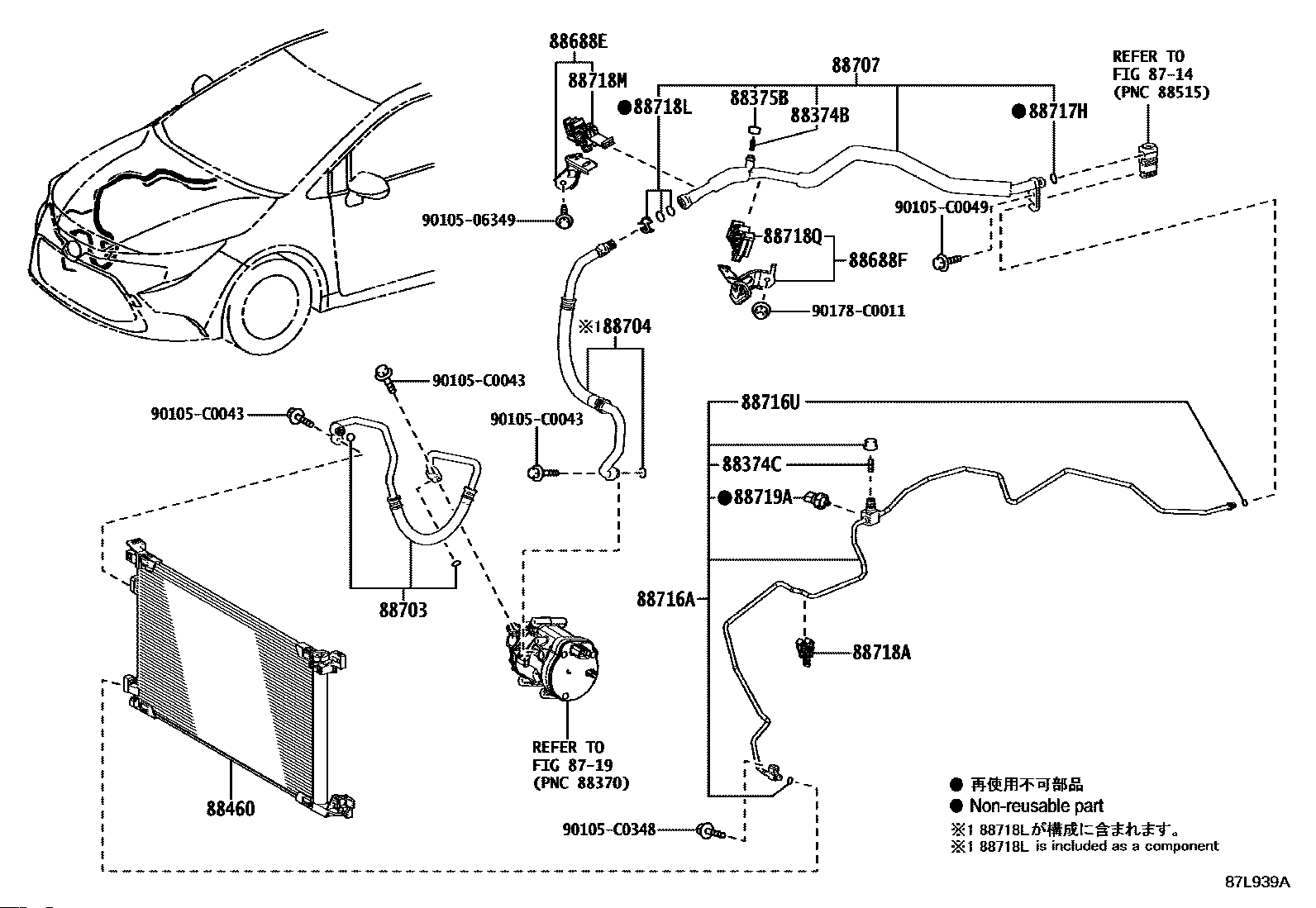

【88374C】8837430010 VALVE SERVICE NO.1

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88460】884A002220 Condenser assy

【88460】884A002230 Condenser assy

【88460】884A002290 Condenser assy

【88460】884A002360 CONDENSER ASSY

【88460】884A002370 CONDENSER ASSY

【88688E】8868802E50 Bracket, cooler refrigerant hose, no.1

【88688E】8868802E60 Bracket, cooler refrigerant hose, no.1

【88688F】886880A050 BRACKET, COOLER REFRIGERANT HOSE, NO.2

【88688E】88688F4121 Bracket, cooler refrigerant hose, no.1

【88688F】88688F4130 BRACKET, COOLER REFRIGERANT HOSE, NO.2

【88703】8870302E20 Hose sub-assy, drain

【88703】8870302E30 Hose sub-assy, drain

【88703】8870302E40 Hose sub-assy, drain

【88703】8870302F10 HOSE SUB-ASSY

【88704】8870402E40 HOSE SUB-ASSY, SUCTION

【88704】8870402E50 HOSE SUB-ASSY, SUCTION

【88704】8870402E60 HOSE SUB-ASSY, SUCTION

【88704】8870402F70 HOSE SUB-ASSY SUCTI

【88707】8870702740 PIPE SUB-ASSY, SUCTION

【88707】8870702750 PIPE SUB-ASSY, SUCTION

【88707】88707F4070 TUBE SUB-ASSY

【88716A】8871002C20 PIPE, COOLER REFRIGERANT LIQUID, A

【88716A】8871002G30 PIPE, COOLER REFRIGERANT LIQUID, A

【88716A】8871002G40 PIPE, COOLER REFRIGERANT LIQUID, A

【88716A】8871002J60 TUBE, LIQUID, NO.1

【88718A】8871802A70 CLAMP(FOR COOLER REFRIGERANT HOSE),NO.1

【88718Q】887180A150 Clamp (for cooler refrigerant hose), no.1

【88718L】8871852280 CLAMP, PIPING

【88719A】8871911010 SENSOR AIRCONDITIONER PRESSURE

【88716U】9009914119 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【88717H】9009914121 CLAMP OR CLIP(FOR FUEL HOSE NO.1)
