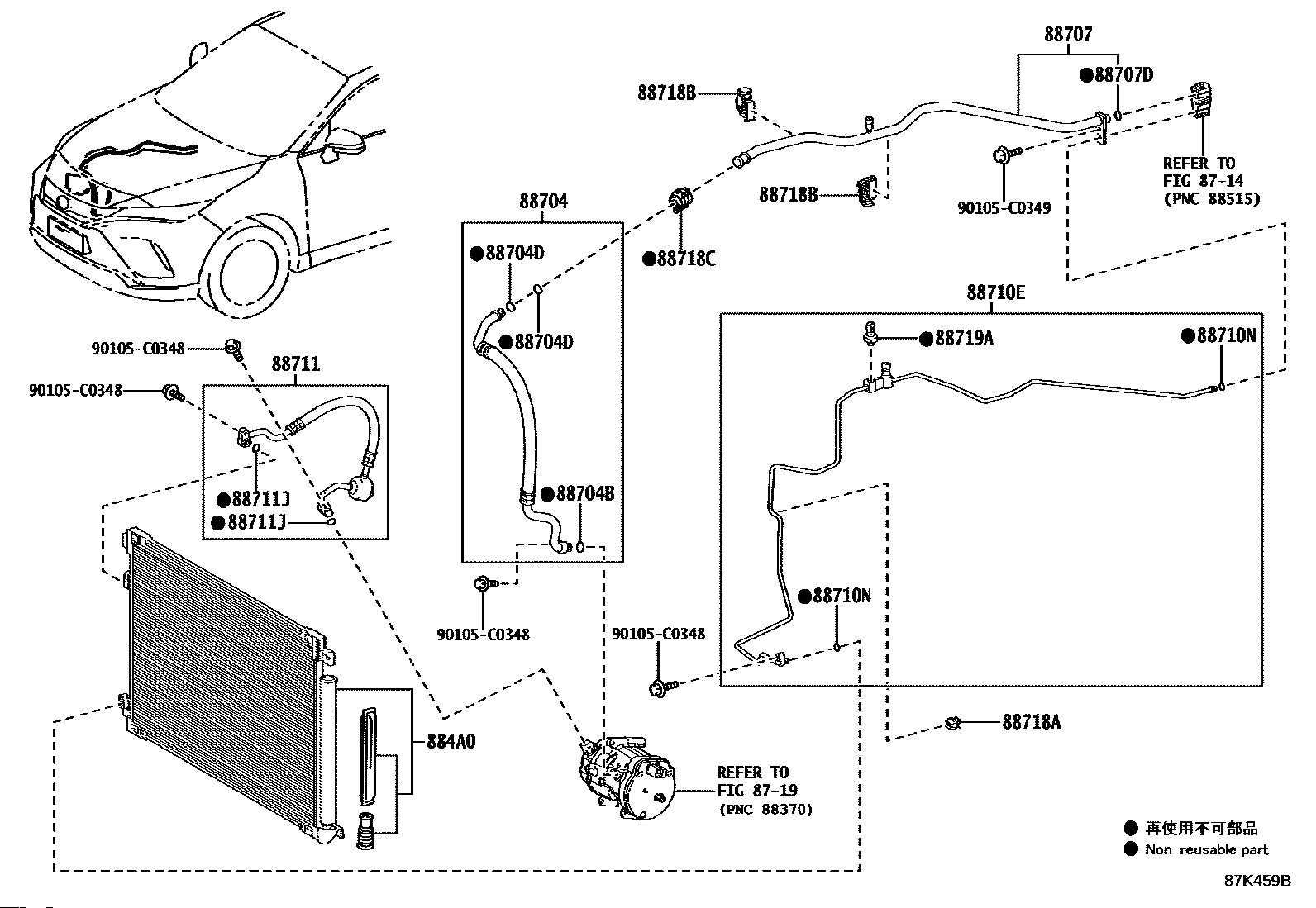

HOSE SUB-ASSY, SUCTION

【884A0】884A00E020 Condenser assy

【884A0】884A00E030 Condenser assy

【88704】887040E421 HOSE SUB-ASSY, SUCTION

【88707】887070E181 PIPE SUB-ASSY, SUCTION

【88707】887070E201 PIPE SUB-ASSY, SUCTION

【88710E】887100E870 TUBE & ACCESSORY ASSY, AIRCONDITIONER

【88710E】887100E890 TUBE & ACCESSORY ASSY, AIRCONDITIONER

【88711】887110E240 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

【88711】887110E260 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

【88718C】887180EA10 Clamp (for cooler refrigerant hose), no.1

【88718A】887180EB10 CLAMP(FOR COOLER REFRIGERANT HOSE),NO.1

【88718B】887180EB20 CLAMP, PIPING

【88719A】8871911010 SENSOR AIRCONDITIONER PRESSURE

【88711J】888990E140 BOLT - LWR ARM

【88707D】888990E160 Ring, o (for cooler refrigerant suction hose)

【88710N】888990E170 BOLT - LWR ARM

【88704D】888990E180 BOLT - LWR ARM
