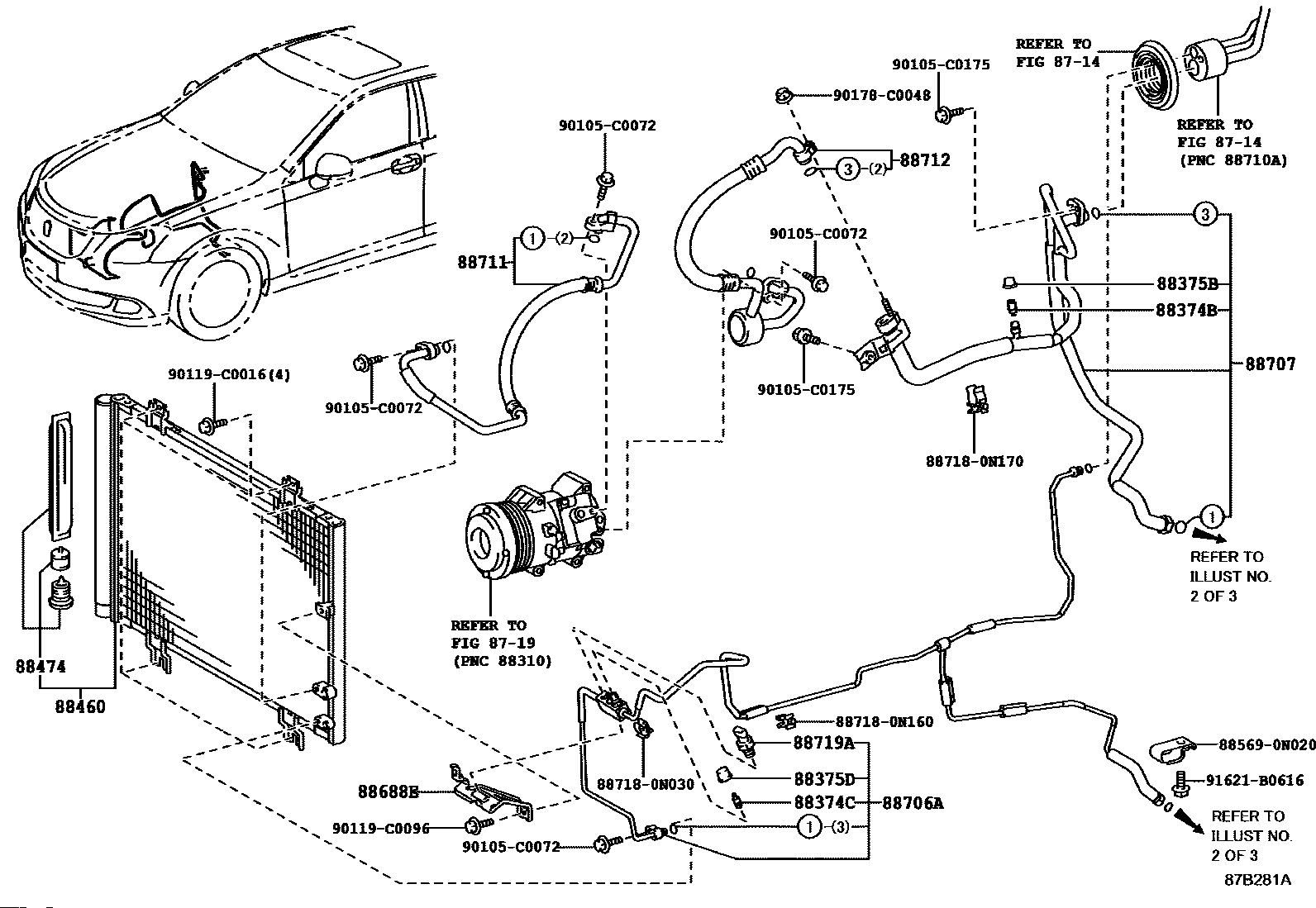

TUBE SUB-ASSY

【88374C】8837430010 VALVE SERVICE NO.1

【88375D】8837530280 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88375B】8837530290 CAP, SERVICE VALVE (FOR COOLER PIPE)

【88460】884600N030 Condenser assy

【88474】8847417010 Dryer, cooler

【88688E】886880N030 Bracket, cooler refrigerant hose, no.1

【88706A】887060N060 Tube sub-assy, liquid A

【88706A】887060N070 Tube sub-assy, liquid A

【88707】887070N040 PIPE SUB-ASSY, SUCTION

【88707】887070N050 PIPE SUB-ASSY, SUCTION

【88711】887110N030 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

【88712】887120N030 HOSE, COOLER REFRIGERANT SUCTION, NO.1

【88719A】8871933020 SENSOR AIRCONDITIONER PRESSURE
