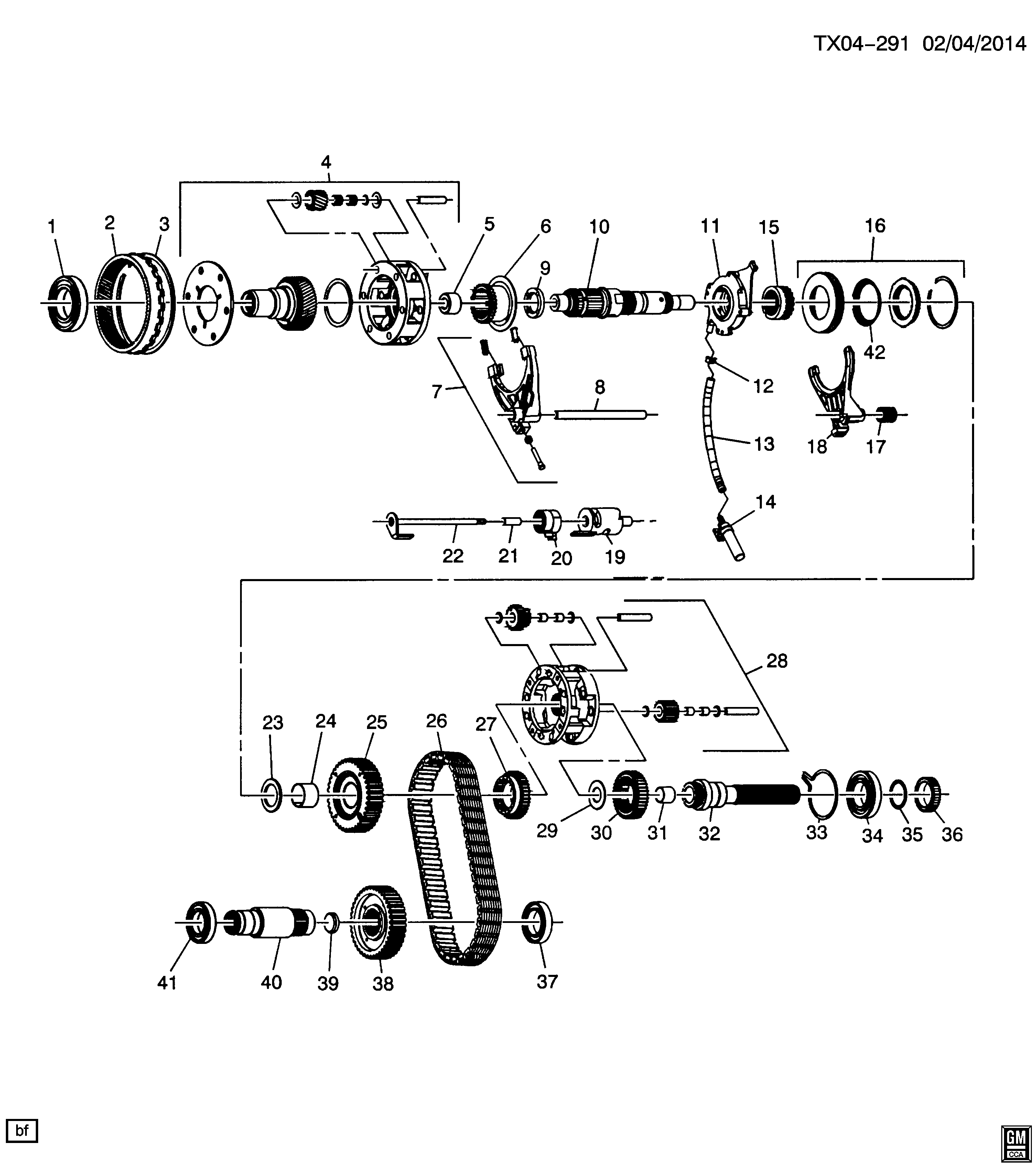

SPRING,TRFER CASE TWO/FOUR WHL DRV SYN INS(*KIT3)

【26】19151772 Chain, transfer two/four wheel (AC-DELCO #19151772)

【24】19168732 Collar comp., fr. output drive sprocket (for 107 parts) (AC-DELCO #19168732)

【18】19180821 FORK,TRFER CASE TWO/FOUR WHL DRV SHFT(DUE TO DES CHANGE, ORIGINAL IS PLASTIC REP

【35】88984493 Ring, t/c rr o/s rr bearing snap (I /l 41) (AC-DELCO #88984493)

【34】88984506 Bearing-t/f fr

【1】88984507 Bearing-t/f input shaft

【33】88984508 Ring, transfer rr bearing outer snap (80mm I. D.) (4.535)

【23】88984518 Guide comp., fr. t/f

【27】88984523 Gear, transfer (AC-DELCO #88984523)

【41】88996564 Driveshaft

【29】89059525 Washer, transfer case housing sun gear thrust

【39】89059602 Plug (part of 18), output hole, front
