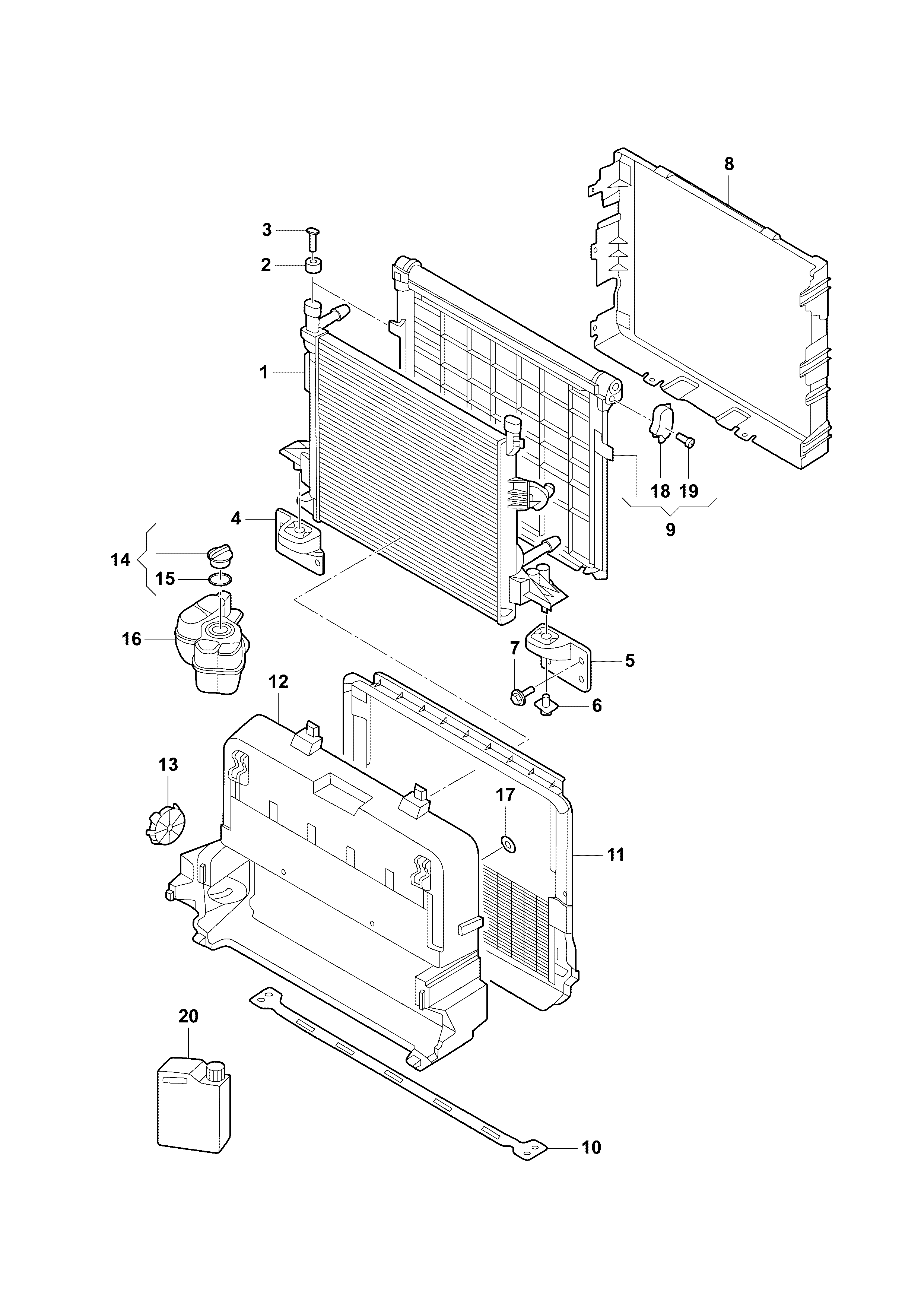

SUPPORT ASSY, INSULATOR

【6】1ED121095 Clip

【3】1ED121095A PIN,PUSH

【1】1ED121251 RADIATOR VW-BORA/AUDI/SKODA

【11】1ED121281 SUPPORT ASSY, INSULATOR

【8】1ED121281A SUPPORT ASSY, INSULATOR

【2】1ED121367 GROMMET

【5】1ED121367A BRACKET,HARNESS

【4】1ED121367B BRACKET,HARNESS

【16】1ED121407 EXPANSION TANK-AUDI/SEAT/SKODA

【9】1ED122135B Roller shutter-radiator

【18】1ED965501 Servo motor, radiator roller shutter

【15】1H0121687A O RING

【14】2QD121321 OIL COVER

【20】G12E055A3 Coolant final mix

【19】N10549603 Bolt, hexagon

【17】N90335004 PROTECTOR

【7】N90862302 BOLT
