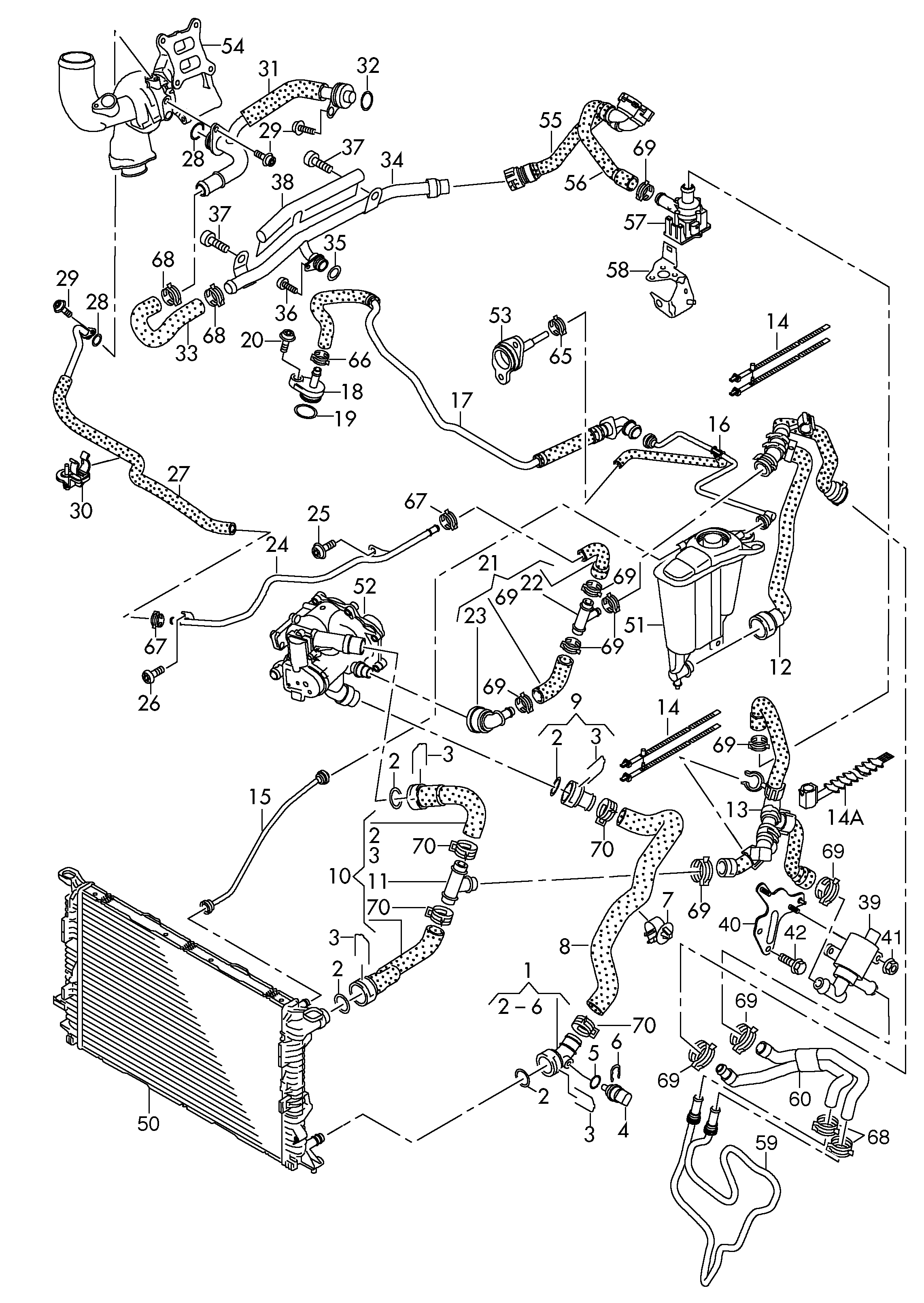

Coolant hose

【6】032121142 Spring, detent

【4】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【67】06B145917A Clip-band

【18】06K121143 Pipe, exhaust

【30】06L115261 BRACKET,HARNESS

【33】06L121051C Coolant hose

【24】06L121075A Coolant pipe

【24】06L121075B Coolant pipe D-05.09.2016

【17】06L121081C HOSE, VENTILATION

【34】06L121085K Coolant pipe

【27】06L121492 Coolant pipe

【31】06L121497D Coolant pipe

【3】1J0121142 Spring, detent

【23】1K0122291J COUPLPIECE

【9】3B0122291C COUPLPIECE

【14】4A0820199 Cable cable, double lock

【39】4H0121671G Valve-solenoid

【12】8K0121036F RADIATOR HOSE/A3/GOLF/JETTA

【8】8K0121055AE Coolant hose

【15】8K0121081BB 8K0121081BB

【15】8K0121081BF HOSE, VENTILATION

【16】8K0121081BH HOSE, VENTILATION

【21】8K0121086AB RADIATOR HOSE/A3/GOLF/JETTA

【10】8K0122101G RADIATOR HOSE/A3/GOLF/JETTA

【1】8K0122293AE COUPLPIECE

【41】N01508210 NUT

【26】N10196103 Bolt, oval

【36】N10335202 Bolt, hexagon

【37】N10524202 Bolt, hexagon insert

【42】N10545402 BOLT

【29】N10619201 BOLT

【25】N10721401 Bolt, oval head pnl

【28】N90041002 SEAL 40X55X8 ASW LD ACM

【5】N90316801 O RING

【32】N90365302 O RING

【14A】N90643701 Band, with bracket, for cable ties:

【68】N90686902 Clip-band

【69】N90687001 Clip-band

【70】N90687201 Clip-band

【11】N90692901 REAPIR KIT FOR 12X1.5MM TUBE

【22】N90760601 Tpiece

【2】N90765301 O RING

【65】N90770201 Clip-band

【66】N90986501 Clip-band

【19】WHT005440 SEAL 40X55X8 ASW LD ACM

【35】WHT005558 SEAL 40X55X8 ASW LD ACM

【7】WHT006829 BRKT-HOSE
