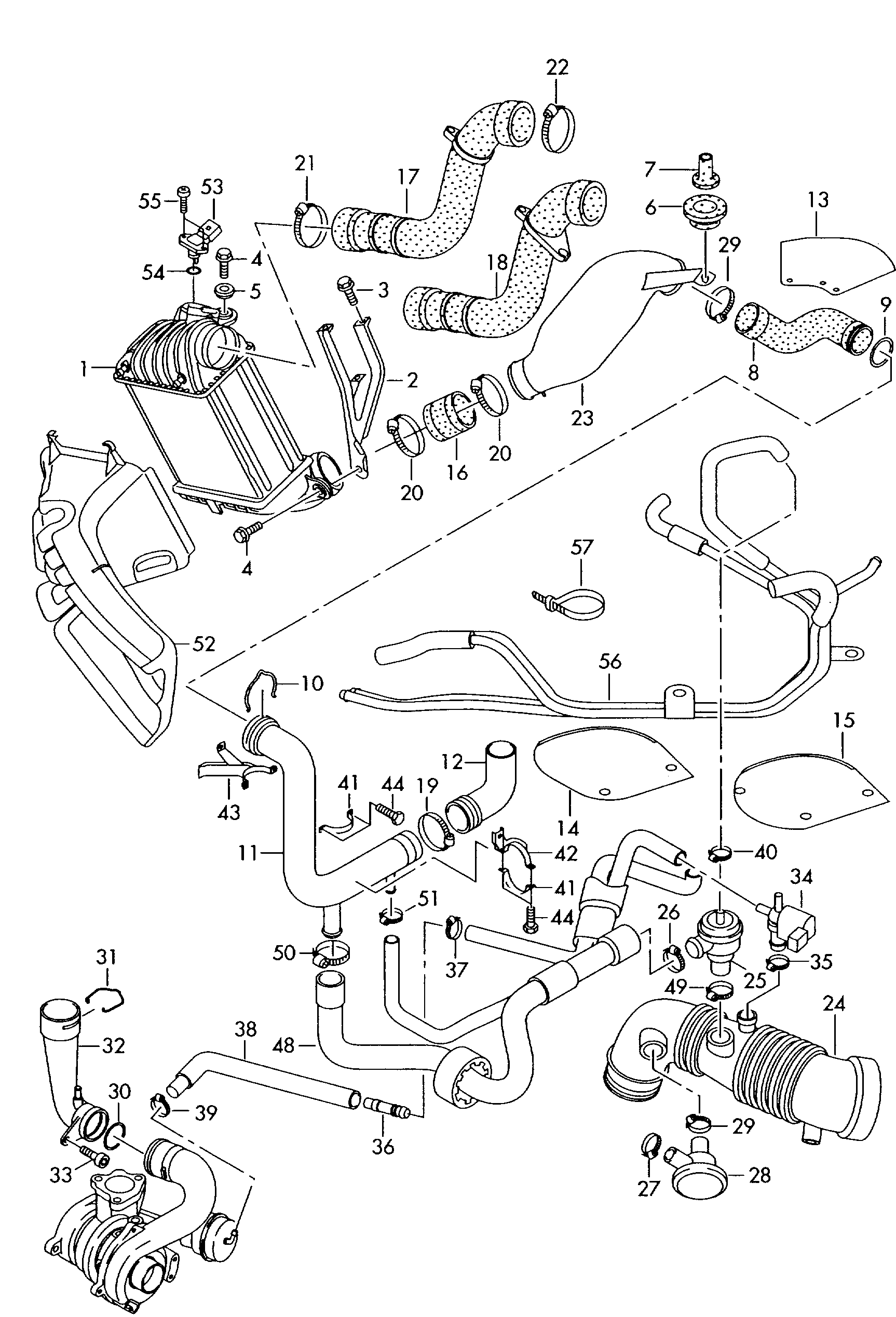

SUPPORT ASSY, INSULATOR

【53】038906051 SENSOR, MAP

【53】038906051D SENSOR, MAP

【6】052129669A GROMMET

【7】052129734 Spacer

【34】058906283F Valve-solenoid

【28】06A129101D PRESSURE CONTROL VALVE,CR-211

【25】06A145710P Valve, shutting down

【31】06A145724A Plug ring mounting

【10】06A145724B Plug ring mounting

【11】06A145731F HOSE COMPLETE-PRESS

【42】06A145756 BRACKET,HARNESS

【43】06A145756N BRACKET,HARNESS

【41】06A145764A BRACKET,HARNESS

【8】06A145790C HOSE COMPLETE-PRESS

【12】06A145832M HOSE

【13】06A145867F GROMMET

【32】06A145893E SUPPORT ASSY, INSULATOR

【23】06A145894C HOSE COMPLETE-PRESS

【30】078133148A O RING

【2】1J0145808C BRACKET,HARNESS

【16】1J0145834A HOSE

【9】3C0145117F SEAL 40X55X8 ASW LD ACM

【5】867129669 GROMMET

【48】8L0145691F Pipe, over pressure control

【44】N01021226 SCREW

【33】N01474011 BOLT

【57】N0209022 Cable strap

【3】N10082912 Bolt, self-lock, hex

【35】N10098001 CLIP

【50】N10166201 CLAMP

【37】N10203601 Clip-hose with ear

【40】N10210501 CLAMP

【49】N10258101 CLIP

【22】N10296001 CLIP

【19】N10518901 CLAMP

【20】N10544401 CLAMP

【39】N90107203 CLIP

【55】N90172004 SCREW

【26】N90489801 CLAMP

【29】N90561801 CLIP

【54】N90563801 O RING

【21】N90656201 Clip-band

【51】N90686701 Clip-band
