JET

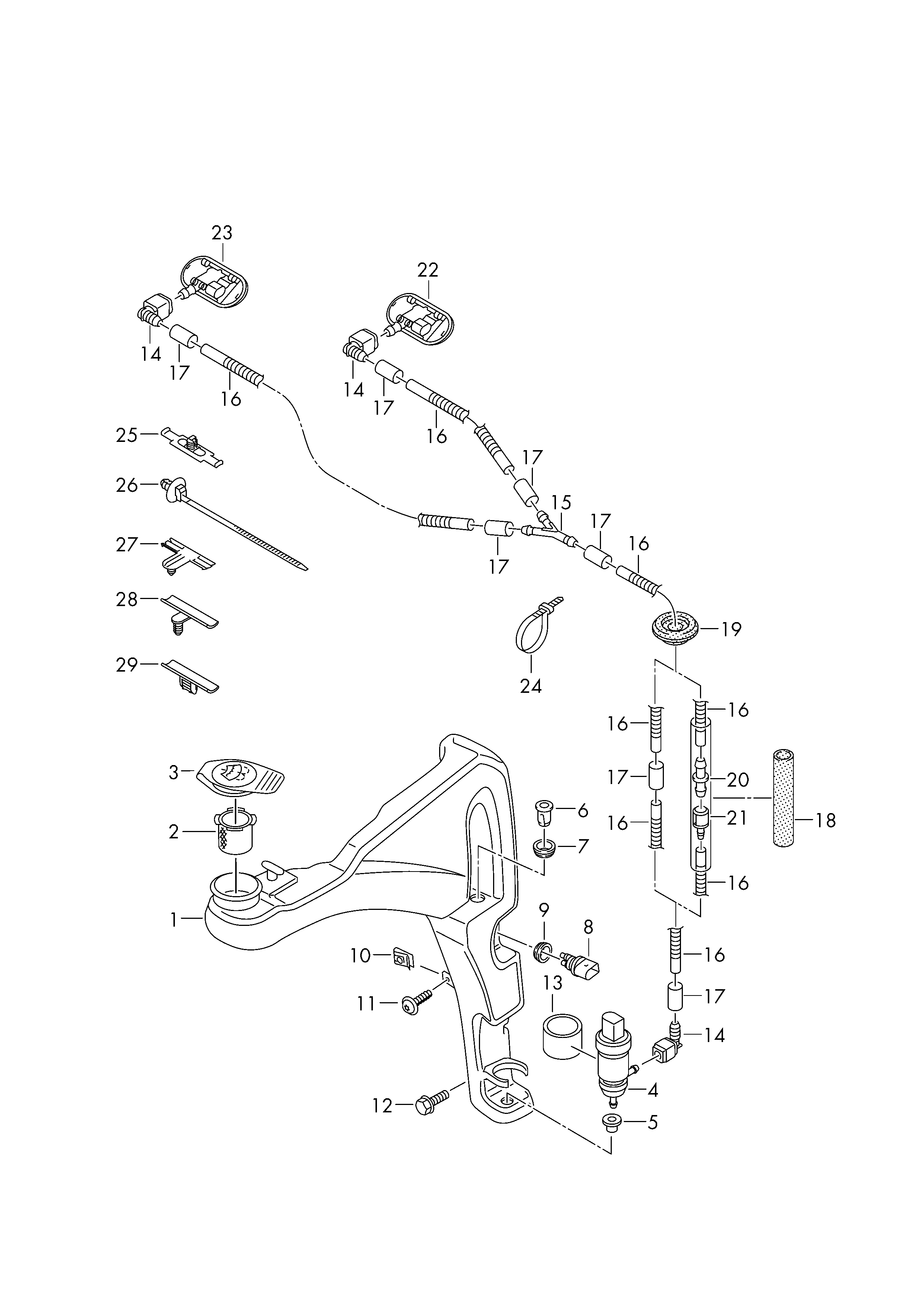

【18】000979992A 1 set shrink hose waterproof

【16】1J0955751D Corrugated pipe

【15】1J0955873D Piece-y

【21】1J0955875P Fit:

【20】1J0955875R Fit:

【3】1K0955455 COVER

【4】1K5955651 Pump, w/shld washer

【17】2D0955962 Hose adjust with tool

【14】3B0955665C Elbow joint

【27】3B0971848F Bracket, cable B

【7】431955465A Grommet

【5】443955465 GASKET COOLANT FLANGE-A4/A5/A6

【6】444955647 SPARE PART

【13】447857991J Intermediate layer

【25】4B0971848 Bracket-cable:

【28】4B0971848K Bracket-cable:

【3】4M0955267 COVER

【29】6Q0971848P Bracket, cable for hole/material thickness: fit as desired:

【8】7M0919376 Sw assy-water level

【9】7M0919382 SEALING RING

【19】8D0955754 GROMMET

【1】8S0955453E Jar, washer Cooperate as needed: D-13.06.2016

【2】8Z0955485 Strainer

【10】N0154374 Nut-insert

【24】N0209022 Cable strap

【12】N10009207 Six angle combined bolt

【11】N91057001 SCREW

【26】WHT006403 Cable strap & clamp:
