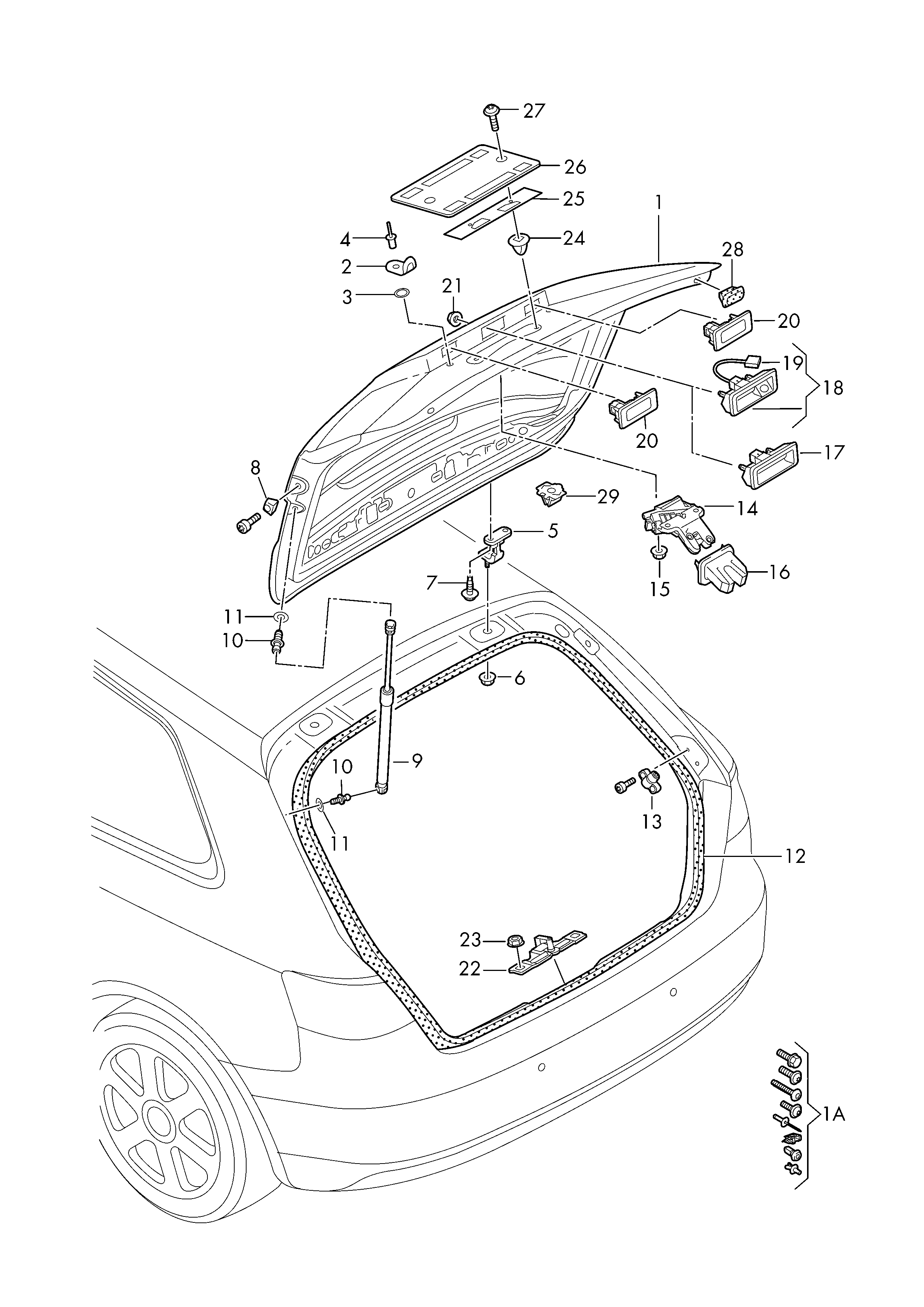

GAS SPRING VW TIGUAN

【19】1J0973332 Receptacle, flat contact

【17】5N0827566T Knob, for power hatch lock operation

【25】8D0853419F Pad, self adhesive

【10】8J8827439A Ball pin

【13】8P4827239B Bumper stopper

【8】8P4827249D Bumper assy-end lid

【28】8P4827951A SPARE PART

【14】8R0827505 Lock, hatch D-01.06.2009

【1A】8V0098617 Retainer set, For rear hatch cover

【22】8V0827507D Wedge-tension

【22】8V0827507E Wedge-tension D-22.09.2014

【18】8V0827566 Knob, for power Lid lock operating * No FI function possible

【1】8V3827025H Rear hatch cover

【5】8V3827299A Hinge, hatch cover D-29.04.2013

【15】N10609201 Nut, hexagon

【21】N90488005 Hex nut

【23】N90511505 Nut, self-locking hexagon

【27】N90974701 Bolt, hexagon no.1

【29】WHT000001AB NUT

【7】WHT005609 Bolt, w/belt (double)
