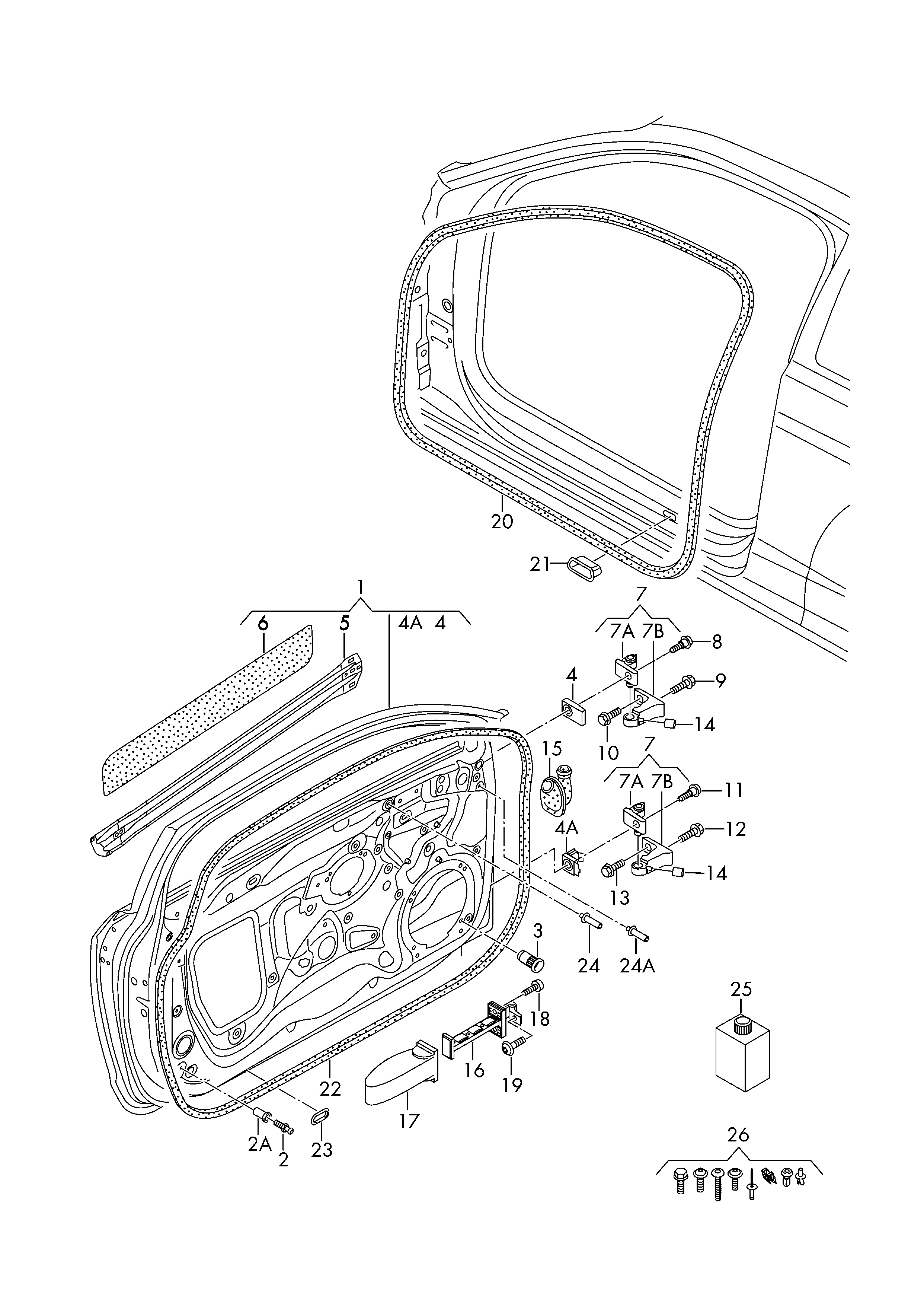

Door joint use position:

【11】8H0831701 Bolt, hexagon

【4A】8T0831135C Threaded plate

【14】8T0837947 Hood

【26】8V0098619 Retainer set, For door

【7】8V0831401 Hinge door

【7】8V0831402 Hinge door

【17】8V0837267 COVER

【1】8V3831052C Door joint use position:

【6】8V3837805 Shock absorber (self-paste) shorten:

【25】D00940104 Solvents-cleaning adhesive & seal material adhesive & seal material

【25】D00950025 Coating material

【25】D355205A2 Adpt:

【3】N10597701 NUT

【2A】N90286804 Nut, blind rivet

【12】WHT001234 BOLT

【13】WHT001235 Six angle combined bolt

【18】WHT003237 BOLT

【19】WHT003497 Bolt (combination), hexagon
