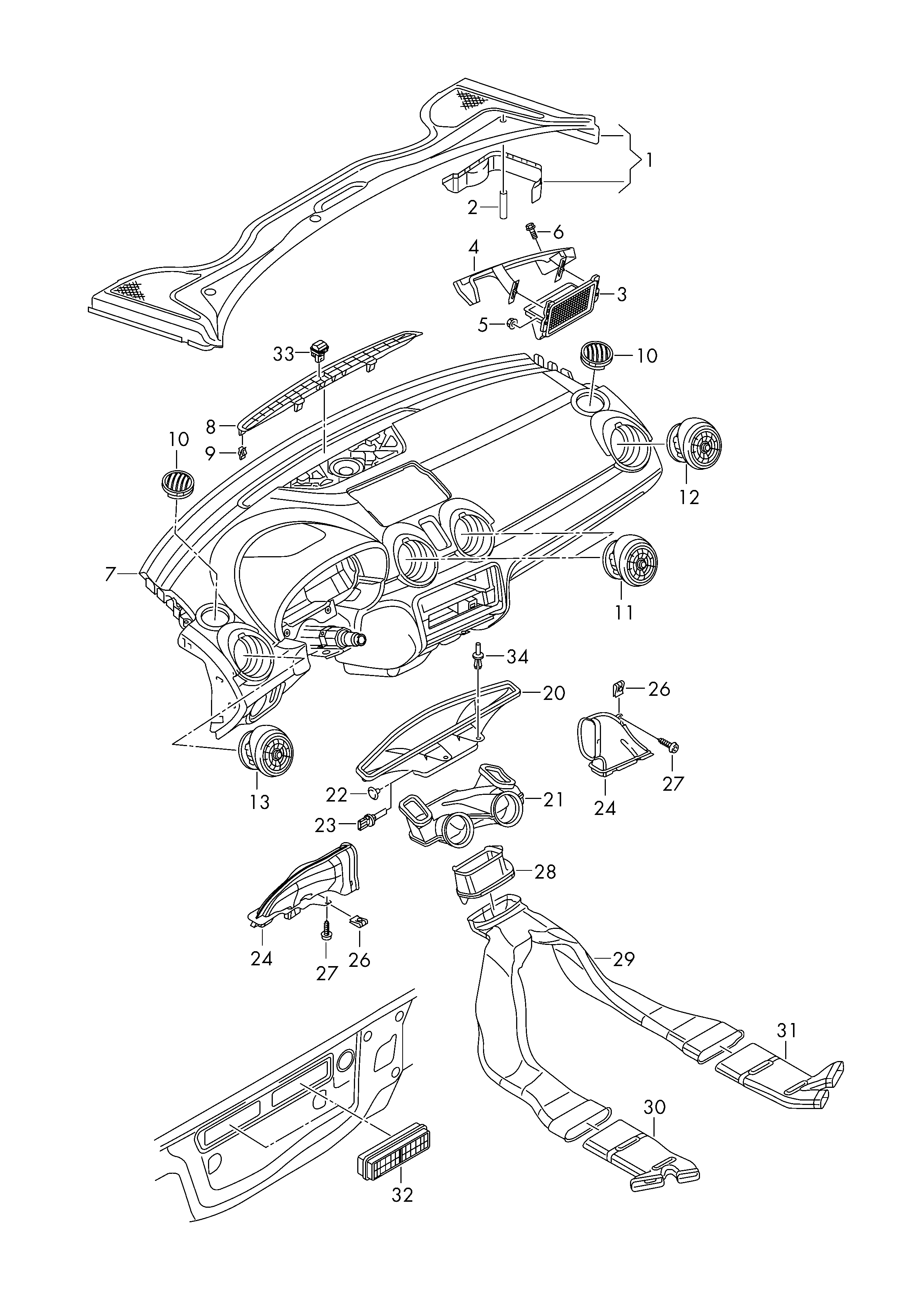

Air nozzle

【9】1J0858137B CLIP,CAP END

【23】1K0907543E Sensor assy-temp

【28】6Q0819159C CONNECTOR/F20/F21/F30/F31

【24】6Q1819152B Ventilator assy-foot

【24】6R1819151A Ventilator assy-foot

【32】6X0819465D Deflector, exh

【22】8D0819598 SPARE PART

【21】8X1819409 Duct assy-air D -02.09.2013

【4】8X1819979 Channel, drain

【13】8X1820901ADS9 Air nozzle

【12】8X1820902ADS9 Air nozzle

【11】8X1820951ADS9 Air nozzle

【11】8X1820951AEK8 Duct assy-air D -01.10.2012 (glacier white)

【1】8X1898819A Cover, drain Fit as needed Common position D -26.05.

【5】N90132606 Hex nut

【34】N90359101 RIVET

【27】N90698606 Bolt, hexagon no.1

【26】N90698703 Nut-insert

【6】N91079901 BOLT
